Mô tả sản phẩm

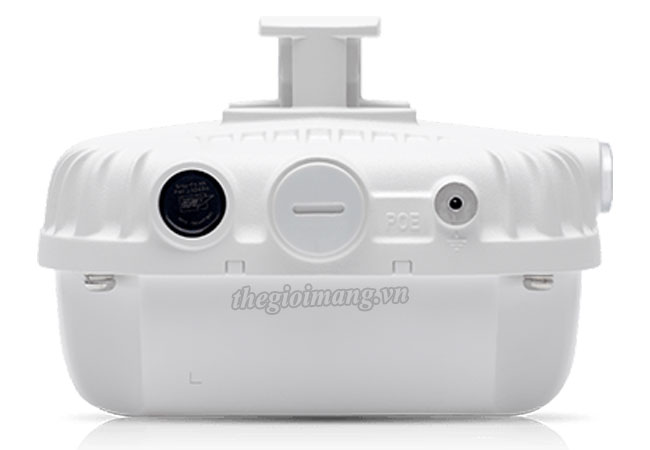

Thiết bị phát sóng Wifi Outdoor Aruba AP-367 (JX973A)

Hardware Variants

AP-367
- 2.4-GHz (400 Mbps max) and 5-GHz (867 Mbps max) radios, each with 2x2 MIMO and integrated directional antennas.

Wi-Fi Radio Specifications

AP type: outdoor, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n
- In addition to 802.11n data rates, the 2.4-GHz radio supports 802.11ac data rates using 256-QAM modulation
2x2 MIMO with two spatial streams and up to 1,266 Mbps wireless data rate
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz3
- 5.250 to 5.350 GHz3
- 5.470 to 5.725 GHz4
- 5.725 to 5.875 GHz4
Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)

Antennas

Supports 802.11ac TxBF which provides an effectively infinite variety of antenna patterns
- AP-367: Integrated Directional antennas (+/-45 polarized)
  - 6.3 dBi @ 2.4 GHz (90° Vertical x 90° Horizontal)
  - 6.5 dBi @ 5.x GHz (90° Vertical x 100° Horizontal)

Other Interfaces

One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 802.3af PoE
Serial console interface (micro USB)

Mechanical

Dimensions/weight (unit, excluding mount accessories):
- 165mm (W) x 165mm (D) x 110mm (H)
- 6.5” (W) x 6.5” (D) 4.3” (H)
- 807g/1.78lbs (AP-365)
- 815g/1.80lbs (AP-367)
Dimensions/weight (shipping):
- 198mm (W) x 200mm (D) x 128mm (H)
- 7.8” (W) x 7.9” (D) x5.0” (H)
- 1,115g/2.46lbs (AP-365)
- 1,123g/2.48lbs (AP-367)
