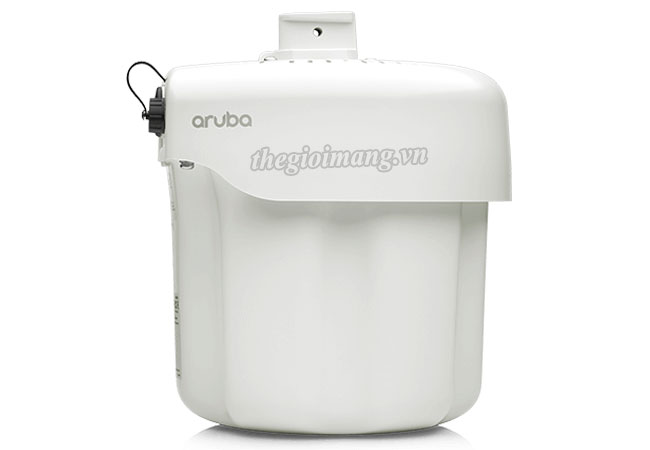

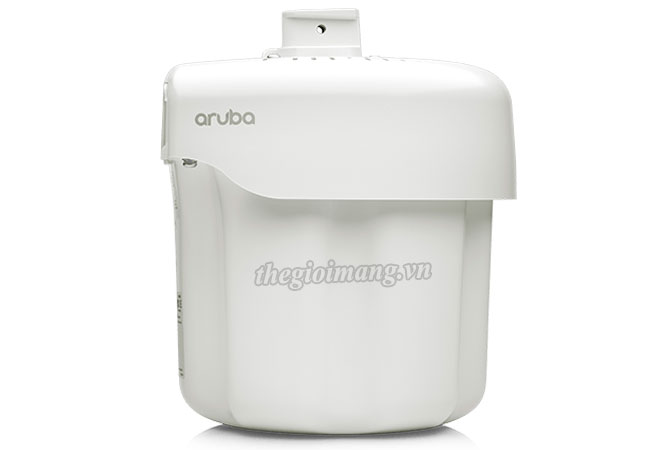

Thiết bị phát sóng Wifi Outdoor Aruba AP-375 (JZ172A)
Hardware Variants
- AP-375
- 5 GHz 802.11ac 4x4 MU-MIMO (1,733 Mbps max rate)
- Internal Omni Antennas 4.6 dBi
- 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radios
- Internal Omni Antennas 4.0 dBi
Wi-Fi Radio Specifications
- AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4x4 MIMO and 2.4 GHz 802.11n 2x2 MIMO
- Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
- 5 GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
- 5 GHz: Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4x4 VHT80 or 2x2 VHT160 client devices
- 2.4 GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2x2 HT40 client devices
- Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
- Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz3
- 5.250 to 5.350 GHz3
- 5.470 to 5.725 GHz4
- 5.725 to 5.850 GHz4
- Supported radio technologies:
- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- Supported modulation types:
- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- Supported data rates (Mbps):
- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n: 6.5 to 300 (MCS0 to MCS15)
- 802.11n: 6.5 to 600 (MCS0 to MCS31)
- 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
Other Interfaces
- One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- One 1000BASE-X SFP Port
Power
- Worst-case power consumption from the AP: 23W
- Power sources sold separately
- Power over Ethernet (PoE+): 802.3at-compliant
- AC Power: 100-240 Volt 50/60Hz AC
Mechanical
- AP-375 Dimensions/weight (excluding mount):
- 23 cm (W) x 24 cm (D) x 27 cm (H)
- 9.0” (W) x 9.4” (D) x 10.6” (H)
- 2.4 kg/5.3 lbs
Warranty
- Aruba limited lifetime warranty
