Mô tả sản phẩm

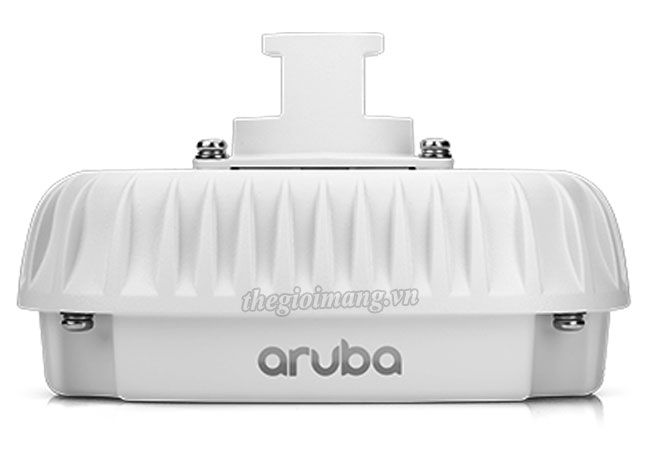

Thiết bị phát sóng Wifi Outdoor Aruba AP-387 (R0K13A)

Wi-Fi Radio Specifications

AP type:
- Outdoor hardened, dual radio, 60GHz 11ad and 5GHz 802.11ac 2x2 MIMO
60 GHz 802.11ad 1x1 (2502.5 Mbps max rate) radio
- 1 Spatial Stream for up to 2.5 Gbps
- Internal scanning antenna
  - +/- 45° Azimuth Scan
  - +/- 17° Vertical Scan
5GHz 802.11ac 2x2 MU-MIMO (867 Mbps max rate)
- Two spatial stream MIMO for up to 867 Mbps wireless data
- Internal directional antenna 9 dBi
Software-configurable dual radio supports 5 GHz (Radio 0) and 60GHz (Radio 1)
Supported frequency bands (country-specific restrictions apply):
- 2.400 to 2.4835 GHz (BLE)
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
- 5.825 to 5.875 GHz
- 57 to 64 GHz
Supported radio technologies:
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ad: Single carrier (SC)
Supported modulation types:
- 802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 802.11ad: BPSK, QPSK
Supported 11a/ac data rates (Mbps):
- 802.11a 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MCS15)
- 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

Other Interfaces

One 10/100/1000BASE-T Ethernet network interfaces (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
Micro USB console interface

Power

Worst-case power consumption: 13.5 W
Idle power consumption: 4.5W
Power sources sold separately
Power over Ethernet (PoE+): 802.3at-compliant
Power over Ethernet (PoE): 802.3af with some operational restriction.
- Max conducted power per chain for 5GHz drops to 19 dBm

Mechanical
