Mô tả sản phẩm

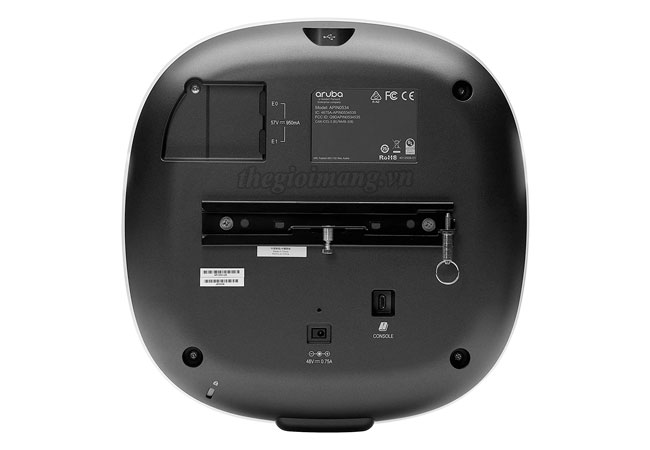

Thiết bị phát sóng Wifi Aruba AP-534 (JZ331A)

Model	AP-534 (JZ331A)
Wi-Fi radio specifications	AP type: Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO 5GHz radio: Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously 2.4GHz radio: Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously Both downlink and uplink MU-MIMO in 5GHz, downlink only in 2.4GHz Support for up to 1,024 associated client devices per radio, and up to 16 BSSIDs per radio
Wi-Fi antennas	Four (female) RP-SMA connectors for external dual band antennas (A0 through A3, corresponding with radio chains 0 through 3). Worst-case internal loss between radio interface and external antenna connectors (due to diplexing circuitry): 0.8dB in 2.4GHz and 1.3dB in 5GHz.
Other interfaces	E0, E1: HPE SmartRate port (RJ-45, maximum negotiated speed 5Gbps) Auto-sensing link speed (100/1000/2500/5000BASE-T) and MDI/MDX 2.5Gbps and 5Gbps speeds comply with NBase-T and 802.3bz specifications POE-PD: 48Vdc (nominal) 802.3at/bt POE (class 4 or higher) 802.3az Energy Efficient Ethernet (EEE) Link aggregation (LACP) support between both network ports for redundancy and increased capacity POE power can be drawn from either port (single source, or set to prioritize) or both ports simultaneously (set to combine) When set to prioritize, the AP draws power from E0 and may failover to E1. DC power interface: 48Vdc (nominal, +/- 5%), accepts 1.35mm/3.5mm center-positive circular plug with 9.5mm length USB 2.0 host interface (Type A connector) Capable of sourcing up to 1A / 5W to an attached device • Bluetooth 5.0 Low Energy (BLE5.0) and Zigbee (802.15.4) radio (2.4GHz) BLE: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity Zigbee: up to 8dBm transmit power and 99dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.1dBi (AP-535) or 5.0dBi (AP-534) Visual indictors (two multi-color LEDs): for System and Radio status Reset button: factory reset, LED mode control (normal/off) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot
Power sources and power consumption	The AP supports direct DC power and Power over Ethernet (POE; on port E0 and/or E1) When POE power is supplied to both Ethernet ports, the AP can be configured to combine or prioritize power sources When both DC and POE power sources are available, DC power takes priority over POE Maximum (worst-case) power consumption: DC powered: 23.3W POE powered (802.3bt or dual 802.3at): 26.4W POE powered (802.3at, IPM disabled): 23.3W All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 5.7W ( POE powered) or 5.5W ( DC powered). Maximum (worst-case) power consumption in idle mode: 13.3W ( POE) or 14.3W (DC) Maximum (worst-case) power consumption in deep-sleep mode: 3.8W (POE) or 3.6W (DC)
Mechanical specifications	Dimensions/weight (AP-535; unit, excluding mount bracket): 240mm (W) x 240mm (D) x 57mm (H) / 9.4” (W) x 9.4” (D) x 2.2” (H) 1,270g / 44.8oz Dimensions/weight (AP-535; shipping): 285mm (W) x 300mm (D) x 105mm (H) / 11.2” (W) x 11.9” (D) x 4.1” (H) 1,930g / 68.1oz
Environmental specifications	Operating conditions Temperature: 0C to +50C / +32F to +122F Humidity: 5% to 93% non-condensing AP is plenum rated for use in air-handling spaces ETS 300 019 class 3.2 environments Storage and transportation conditions Temperature: -40C to +70C / -40F to +158F Humidity: 5% to 93% non-condensing ETS 300 019 classes 1.2 and 2.3 environments
