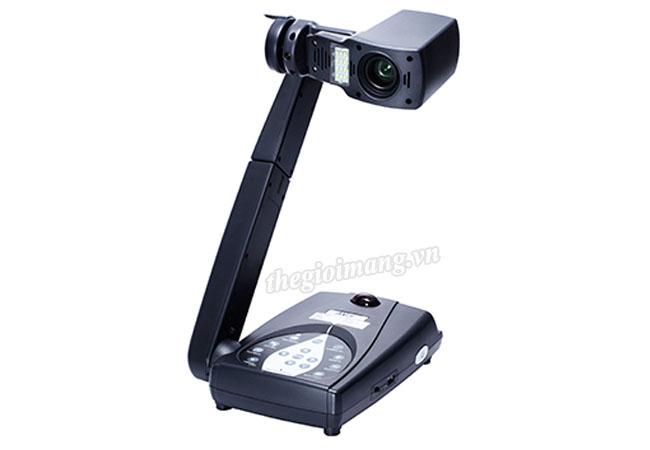

Thiết bị thu hình vật thể Aver M70-HD
Mã sản phẩm
|
M70-HD | |
---|---|---|
Image sensor | 1/3" CMOS color image sensor | |
Total pixels | 5M | |
Output resolution | Full HD 1080p (1920 x 1080) | |
TV lines | 1000 (max.) | |
Zoom | 192X total zoom (12X optical zoom + 2X AVerZoomTM + 8X digital zoom) | |
Frame rate | 30fps (max.) | |
Focus | Auto / Manual | |
Shooting area | Larger than A3 landscape (420 x 297 mm) 466 x 348 mm (4:3) / 490 x 275 mm (16:9) | |
Image rotation | - Electronic rotation 0° / 90° / 180° / 270° - Mechanical rotation -90° / 0° / 90° |
|
Recording | ✔ (to SDHC card or USB flash drive) | |
Onboard annotation | ✔ (1024 x 768) | |
Internal storage | 240 images (max.) | |
External storage | SDHC (32GB max.) / USB flash drive (64GB max.) | |
Image effects | Color / B&W / Negative / Mirror / Freeze | |
Image adjustments (white balance / exposure) | Auto / Manual | |
Presentation tools | ✔ (Spotlight & Visor) | |
Split screen | ✔ (vertical & horizontal) | |
Picture-in-picture | ✔ | |
Display mode | Sharp / Graphics / Motion / Microscope / Macro / Infinite | |
Capture mode | Single / Continuous | |
User profiles | Up to 3 | |
Timer | ✔ | |
Flicker filter control | ✔ (50/60 Hz) | |
Remote control | ✔ | |
Light source | Embedded LED lamp | |
HDMI I/O | 1 in; 1 out | |
RGB I/O | 1 in; 1 out (15-pins D-sub, pass through) | |
Composite video output | NTSC or PAL | |
RS-232 port | ✔ (with composite / RS-232 adapter cable) | |
mini USB 2.0 port | ✔ (PC camera / built-in image download) | |
USB 2.0 port | ✔ (USB flash drive or mouse connection) | |
Audio input | Built-in MIC; MIC in (3.5mm jack, pink) | |
Audio output | Audio out (3.5mm jack, green) | |
Dimensions (W x H x D) | - Operating: 182 x 504 x 452 mm - Folded: 182 x 63 x 388 mm |
|
Net weight | 2.1kg (4.63lbs) | |
Power source | AC 100V~240V, 50/60Hz |
