Name: Cisco AIR-AP1815I-S-K9
Brand: Cisco
SKU: AIR-AP1815I-S-K9
Rating: 5 (15 reviews)

Hỗ trợ trực tuyến

Tư vấn

Hỗ trợ Tư Vấn

0909648899

Kinh doanh

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Kỹ thuật

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

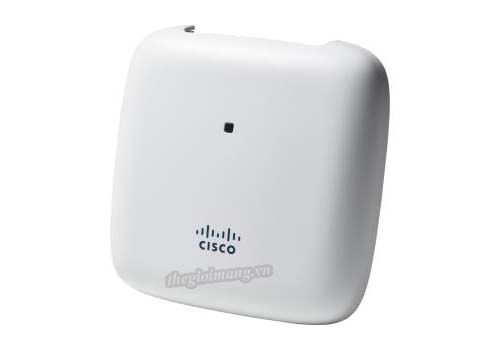

Thiết bị phát sóng Wifi Cisco AIR-AP1815I-S-K9

Part Number	AIR-AP1815I-S-K9
Integrated antennas	- 2.4 GHz, gain 2 dBi - 5 GHz, gain 4 dBi
Interfaces	- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) - Management console port (RJ-45)
Indicators	- Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	- Access point (without mounting bracket): 6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm)
Weight	- Access point without mounting bracket or any other accessories: 14 oz (400 g)
Environmental	- Operating ◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Max. altitude: 9843 ft (3000 m) @ 40°C - Nonoperating (storage and transportation) ◦ Temperature: -22° to 158°F (-30° to 70°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Max. altitude: 15,000 ft (4500 m) @ 25°C
System	- 1 GB DRAM - 256 MB flash - 710 MHz quad core
Powering options	- 802.3af/at Ethernet switch - Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
Power draw	- 8.3W (maximum, on PoE)
Physical security	- Torx security screw, included with the access point
Accessories	- Mounting bracket: AIR-AP-BRACKET8= (available as spare) - Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. Security screws used to secure access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Compliance	- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 - Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385 - IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac - Security: 802.11i, WPA2, WPA, 802.1X, AES - Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM) - Multimedia: Wi-Fi Multimedia (WMM) - Other: FCC Bulletin OET-65C, RSS-102
Authentication and security	- Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) - 802.1X, RADIUS authentication, authorization and accounting (AAA) - 802.11r - 802.11i
Software	- Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later - Cisco Mobility Express
Maximum clients	- Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	- 2x2 single-user/multiuser MIMO with two spatial streams - Maximal ratio combining (MRC) - 20-, 40-, and 80-MHz channels - PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) - 802.11 Dynamic Frequency Selection (DFS) - Cyclic shift diversity (CSD) support
Ethernet ports	- Authentication with 802.1X or MAC filtered - Dynamic VLAN or per port - Traffic locally switched or tunneled back to wireless LAN controller
