Bộ phát sóng Wifi Cisco AIR-AP1815T-S-K9 Integrated antennas ● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 3 dBi ● 1 x 10/100/1000BASE-T autosensing (RJ-45) ● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=)

Giá bán : Liên hệ để có giá tốt
Tình trạng : Còn hàng

Thông số kỹ thuật
Tài liệu liên quan

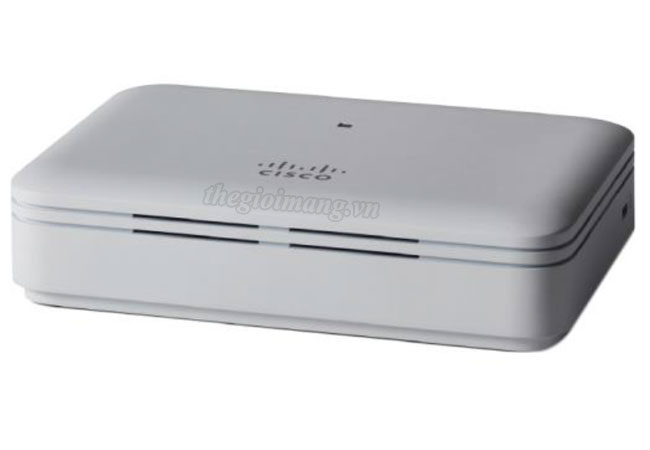

Thiết bị Wifi Cisco AIR-AP1815T-S-K9

Part Number	AIR-AP1815T-S-K9
Integrated antennas	● 2.4 GHz, gain 2 dBi
	● 5 GHz, gain 3 dBi

Interfaces	● 1 x 10/100/1000BASE-T autosensing (RJ-45)

	● Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port:

	◦ PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-D=)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7mm)
Weight	● Access point without mounting bracket or any other accessories: 13 oz (365 g)
Environmental	● Operating
	◦ Temperature: 32° to 104°F (0° to 40°C)

	◦ Humidity: 10% to 90% (non-condensing)

	◦ Max. altitude: 9843 ft (3,000 m) @ 40°C

	● Non-operating (storage and transportation)

	◦ Temperature: -22° to 158°F (-30° to 70°C)

	◦ Humidity: 10% to 90% (non-condensing)

	◦ Max. altitude: 15,000 ft (4,500 m) @ 25°C

System	● 512 MB DRAM
	● 128 MB flash

	● 710 MHz quad-core

Powering options	● 802.3af: 15.4W at port
	● 44 to 52V DC
Power draw	● 8.5W (no PoE out and no USB)
Physical security	● Kensington lock slot
Accessories	● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports
Compliance	● Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1
	● Radio approvals: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66 (Japan), ARIB-STD T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107 and 15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1 and -17 (Europe), EN 50385

	● IEEE standards: IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d, IEEE 802.11ac


	● Security: 802.11i, WPA2, WPA, 802.1X, AES

	● Extensible Authentication Protocol (EAP) types: EAP-Transport Layer Security (TLS), EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2), Protected EAP (PEAP) v0 or EAP-MSCHAPv2, EAP-Flexible Authentication via Secure Tunneling (FAST), PEAP v1 or EAP-Generic Token Card (GTC), EAP-Subscriber Identity Module (SIM)

	● Multimedia: Wi-Fi Multimedia (WMM)

	● Other: FCC Bulletin OET-65C, RSS-102
Authentication and security	● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2)

	● 802.1X, RADIUS authentication, authorization, and accounting (AAA)

	● 802.11r

	● 802.11i
Software	● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
Maximum clients	● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point
802.11ac	● 2x2 single-user/multiuser MIMO with two spatial streams
	● Maximal ratio combining (MRC)

	● 20-, 40-, and 80-MHz channels

	● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)

	● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx)

	● 802.11 Dynamic Frequency Selection (DFS)

	● Cyclic shift diversity (CSD) support

Ethernet ports	● Authentication with 802.1X or MAC filtered

	● Dynamic VLAN or per port

	● Traffic locally switched or tunneled back to wireless LAN controller
