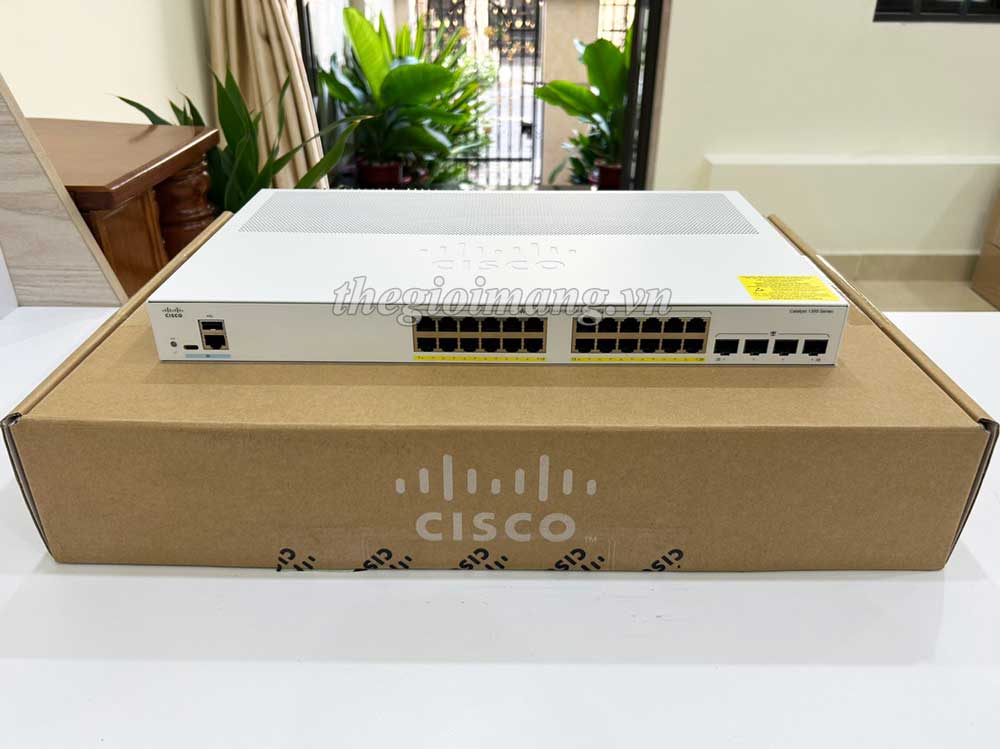

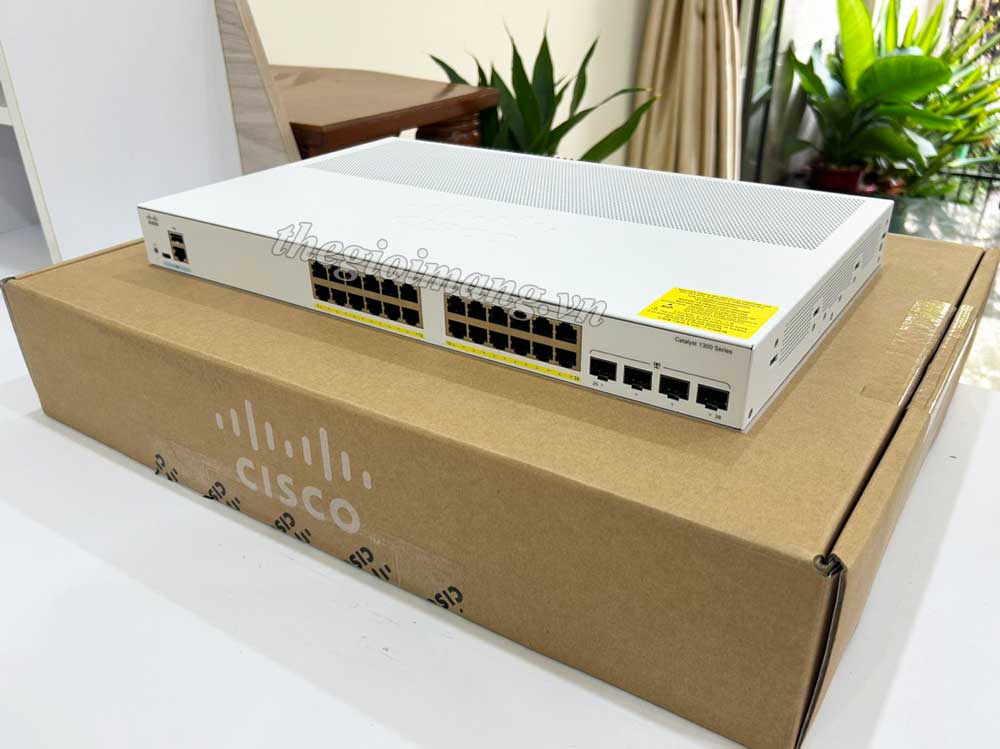

Cisco C1300-24FP-4G Catalyst 1300 24 port GE PoE+ with 375W power budget, 4 x 1G SFP uplinks
Cisco C1300-24FP-4G là thiết bị chuyển mạch dễ sử dụng, thiết kế dành cho các doanh nghiệp vừa và nhỏ. Được quản lý thông qua Bảng điều khiển của Cisco® (Dashboard), ứng dụng di động của Cisco (Mobile app), giao diện người dùng Web UI, CLI và SNMP.
Switch C1300-24FP-4G có 24-port GE hỗ trợ cấp nguồn PoE+ (tối đa 375W) và 4x SFP uplinks tốc độ cao. Đây là Switch lớp 3, dễ dàng triển khai, linh hoạt, an toàn và tiết kiệm.

Đặc tính nổi bật
● 24 ports GE hỗ trợ PoE+ 30W
● 4 ports SFP uplinks
● Cấp nguồn PoE+ tối đa lên tới 375W
● Quản lý bằng Cloud, Mobile app, CLI hoặc Web UI
● Truy cập qua Bluetooth, SNMP hoặc Console
● Dễ quản lý và triển khai (Plug and Play)
● Chức năng định tuyến lớp 3 (Static, RIP)
● Có khả năng xếp chồng (True stacking)
● Thiết kế nhỏ gọn, hiệu suất năng lượng cao (IEEE 802.3az)
● Bảo mật mạnh mẽ, khả năng phục hồi cao (IEEE 802.1X, IPMB, ARP, DHCP snoopin, IPSG, ACL, STP…)
Dòng Cisco C1300-24FP-4G có thể thay thế cho các dòng Switch Cisco Business trước đó như : CBS350-24FP-4G-EU
Thông số cơ bản Cisco C1300-24FP-4G
| Mã SP | C1300-24PF-4G |
| Network ports | 24 x 1G |
| Uplink ports | 4 x 1G SFP |
| Power over Ethernet (PoE) | PoE+ (375W) |
| Stacking | N/A |
| Fan | 1 fan |
| Power supply | Internal |
| Features | Layer 2 switching, VLAN support, Spanning Tree Protocol (STP), advanced threat protection, IPv6 first-hop security, quality of service (QoS), sFlow, dynamic routing |
| Network management | Cisco Business Dashboard and mobile app; on-device UI, CLI, and SNMP |
| Warranty | Limited lifetime warranty |
Xem thêm
Rút gọn
| Model | C1300-24FP-4G |
| Hardware | |
| Total system ports | 28x Gigabit Ethernet |
| RJ-45 ports | 24x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4x SFP |
| Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C port on the front panel of the switch for easy file and image management as well as console port |
| 802.3af PoE, 802.3at PoE+ | 375W (24 PoE ports) |
| Flash | 512 MB |
| CPU | ARM dual-core at 1.4 GHz |
| DRAM | 1 GB DDR4 |
| Packet buffer | 1.5 MB |
| Buttons | Reset button |
| Power consumption (worst case) | |
| System power consumption (with PoE) | 110V=449.7W 220V=438.3W |
| Heat dissipation (BTU/hr) | 1537.17 |
| Performance | |
| Capacity in Millions of Packets Per Second (mpps) (64-byte packets) | 41.66 |
| Switching capacity in Gigabits per second (Gbps) | 56.0 |
| Management | Cisco Business Dashboard Cisco Business mobile app Cisco Network Plug and Play (PnP) agent Web user interface SNMP |
| General | |
| Jumbo frames | Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
| MAC table | 16,000 addresses |
| Environmental | |
| Unit dimensions | 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in) |
| Unit weight | 4.6 kg (10.14 lb) |
| Power | 100-240V 50-60 Hz, internal |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| FAN (number) | 1 |
Vui lòng để lại số điện thoại hoặc lời nhắn, nhân viên sẽ liên hệ trả lời bạn sớm nhất
Cisco C1300-24FP-4G
| Model | C1300-24FP-4G |
| Hardware | |
| Total system ports | 28x Gigabit Ethernet |
| RJ-45 ports | 24x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4x SFP |
| Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C port on the front panel of the switch for easy file and image management as well as console port |
| 802.3af PoE, 802.3at PoE+ | 375W (24 PoE ports) |
| Flash | 512 MB |
| CPU | ARM dual-core at 1.4 GHz |
| DRAM | 1 GB DDR4 |
| Packet buffer | 1.5 MB |
| Buttons | Reset button |
| Power consumption (worst case) | |
| System power consumption (with PoE) | 110V=449.7W 220V=438.3W |
| Heat dissipation (BTU/hr) | 1537.17 |
| Performance | |
| Capacity in Millions of Packets Per Second (mpps) (64-byte packets) | 41.66 |
| Switching capacity in Gigabits per second (Gbps) | 56.0 |
| Management | Cisco Business Dashboard Cisco Business mobile app Cisco Network Plug and Play (PnP) agent Web user interface SNMP |
| General | |
| Jumbo frames | Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
| MAC table | 16,000 addresses |
| Environmental | |
| Unit dimensions | 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in) |
| Unit weight | 4.6 kg (10.14 lb) |
| Power | 100-240V 50-60 Hz, internal |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| FAN (number) | 1 |
| Model | C1300-24FP-4G |
| Hardware | |
| Total system ports | 28x Gigabit Ethernet |
| RJ-45 ports | 24x Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP]) | 4x SFP |
| Console port | Cisco standard RJ-45 console port and USB Type C port |
| USB port | USB Type C port on the front panel of the switch for easy file and image management as well as console port |
| 802.3af PoE, 802.3at PoE+ | 375W (24 PoE ports) |
| Flash | 512 MB |
| CPU | ARM dual-core at 1.4 GHz |
| DRAM | 1 GB DDR4 |
| Packet buffer | 1.5 MB |
| Buttons | Reset button |
| Power consumption (worst case) | |
| System power consumption (with PoE) | 110V=449.7W 220V=438.3W |
| Heat dissipation (BTU/hr) | 1537.17 |
| Performance | |
| Capacity in Millions of Packets Per Second (mpps) (64-byte packets) | 41.66 |
| Switching capacity in Gigabits per second (Gbps) | 56.0 |
| Management | Cisco Business Dashboard Cisco Business mobile app Cisco Network Plug and Play (PnP) agent Web user interface SNMP |
| General | |
| Jumbo frames | Frame sizes up to 9000 bytes. The default MTU is 2000 bytes |
| MAC table | 16,000 addresses |
| Environmental | |
| Unit dimensions | 445 x 345 x 44 mm (17.5 x 13.59 x 1.73 in) |
| Unit weight | 4.6 kg (10.14 lb) |
| Power | 100-240V 50-60 Hz, internal |
| Certifications | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature | 23° to 122°F (-5° to 50°C) |
| Storage temperature | -13° to 158°F (-25° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 10% to 90%, relative, noncondensing |
| FAN (number) | 1 |
Switch C1300‑24FP‑4G có hỗ trợ IPv6 không? Báo giá thương mại giúp mình nhé admin.
Có, Cisco Catalyst C1300‑24FP‑4G hỗ trợ đầy đủ IPv6 cho kết nối hiện đại.Bạn vui lòng liên hệ Hotline: 0915 793 030 để nhận báo giá chi tiết.
Cisco C1300‑24FP‑4G có bao nhiêu cổng Gigabit và uplink?
Dạ Cisco C1300‑24FP‑4G có 24 cổng Gigabit Ethernet hỗ trợ PoE/PoE+ và 4 uplink SFP Gigabit.
