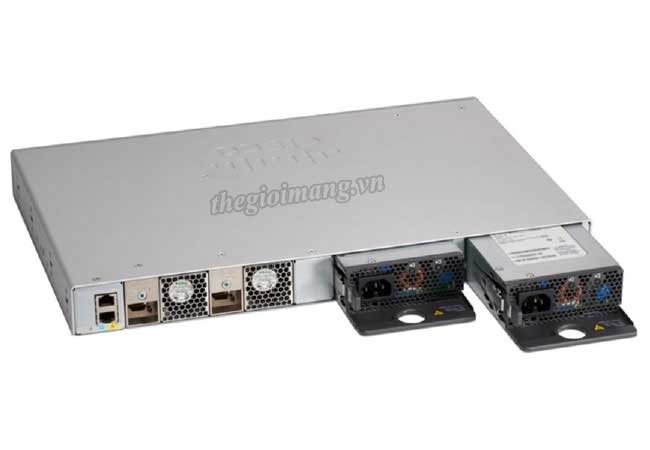

Cisco C9200-48PXG-A Catalyst 9200 48-port 8xmGig, 40x1G, PoE+, Network Advantage
| Switch Model | C9200-48PXG-A |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
| Uplink configuration | Modular uplink options (C9200-NM-xx) |
| Default primary AC power supply | 1000W AC (PWR-C6-1KWAC) |
| Available PoE power | 740W |
| Fans | FRU redundant |
| Software | Network Advantage |
| Stacking support | StackWise®-160 |
| Stacking bandwidth | 160 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes | 14,000 |
| IPv4 routing entries | 4,000 |
| IPv6 routing entries | 2,000 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,600 |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Switching capacity | 400 Gbps |
| Forwarding rate | 297.61 Mpps |
| Chassis Dimensions | 4.4 x 44.5 x 35.0 cm |
| Weight | 5.45 Kg |
| Network modules cho Cisco Catalyst C9200 | |
| Product number | Product description |
| C9200-NM-2Y | Catalyst 9200 2 x 25 GE Network Module |
| C9200-NM-2Q | Catalyst 9200 2 x 40GE Network Module |
| C9200-NM-4G | Catalyst 9200 4 x 1GE Network Module |
| C9200-NM-4X | Catalyst 9200 4 x 10GE Network Module |
| C9200-NM-BLANK | Catalyst 9200 BLANK (No) Network Module |
| Stacking cables cho Cisco Catalyst C9200 | |
| Product number | Product description |
| C9200-STACK-KIT | Stack kit for C9200 SKUs only: Two data stack adapters and one data stack cable |
| STACK-T4-50CM | 50CM Type 3 Stacking Cable |
| STACK-T4-1M | 1M Type 3 Stacking Cable |
| STACK-T4-3M | 3M Type 3 Stacking Cable |
| Software DNA licenses cho Cisco Catalyst C9200 | |
| Product number | Product description |
| C9200-DNA-E-48-3, -5, -7 | C9200 48 port Cisco DNA Essentials; 3, 5 and 7 year term |
| C9200-DNA-A-48-3, -5, -7 | C9200 48 port Cisco DNA Advantage; 3, 5 and 7 year term |
| C9200-DNA-P-48-3, -5, -7 | C9200 48 port Cisco DNA Premier; 3, 5 and 7 year term |
| C9200-DNA-E-A-3, -5, -7 | C9200 Cisco DNA Essentials to Advantage upgrade; 3, 5 and 7 year term |
C9200-48PXG-A : Catalyst 9200 48-port 8xmGig PoE+, Network Advantage
