Mô tả sản phẩm

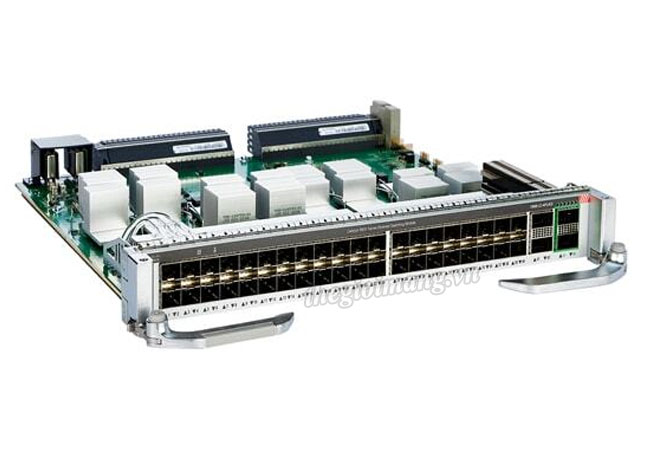

Thiết bị Line Card Cisco Catalyst 9600 Series 40-port 50GE, 2-port 200GE, 2-port 400GE (C9600-LC-40YL4CD)

Product Number	C9600-LC-40YL4CD=
	Highlights of the C9600-LC-40YL4CD: ● Paired with C9600X-SUP-2 (3.2 Tbps bandwidth), this line card provides up to 40 ports of 50/25/10 GE, 2 ports of 100/200 GE and 2 ports of 400 GE non blocking ● Paired with C9600-SUP-1 (1.2 Tbps bandwidth), this line card provides up to 40 ports of 25/10/1 GE and 2 ports of 40/100 GE non blocking ● 50 GE SFP, 200 GE QSFP56 and 400 GE QSFP-DD ports ● IPv6 support on the Cisco Silicon One Application-Specific Integrated Circuit (ASIC), providing wire-rate forwarding for IPv6 networks ● Advanced Encryption Standard 256 (AES-256) support with the powerful MACsec and WAN-MACsec encryption algorithm
Supervisor and Line Card compatibility and bandwidth
C9600-SUP-1	2.4 Tbps
C9600X-SUP-2	6.4 Tbps
Port Information
Port Speed	25,10 GE	50 GE	100 GE	200 GE	400 G
Maximum ports with C9600X-SUP-2	256	256	96	8	8
Maximum ports with C9600-SUP-12	192	NA	NA	NA	NA
Power & MTBF Details
Max rated power C9600X-SUP-2	420 W
Max rated power C9600-SUP-1	420 W
MTBF (Hours)	580,420
Product Specifications
Standards	Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab
Physical Dimensions (H x W x D)	1.7 x 15.0 x 13.41 in. (to faceplate) (4.32 x 38.1 x 34.06 cm) 1.7 x 15.0 x 15.7 in. (to ejector) (4.32 x 38.1 x 39.88 cm)
Weight	4.03 Kg (8.88 lb)
Operating Temperature	-5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet
Storage Temperature	-40° to 75° C (40° to 167° F)
Relative Humidity, Operating and Non-operating, Non-condensing	10% to 95%, noncondensing
Altitude	-60 to 3000 m (-197 to 9843 feet)
