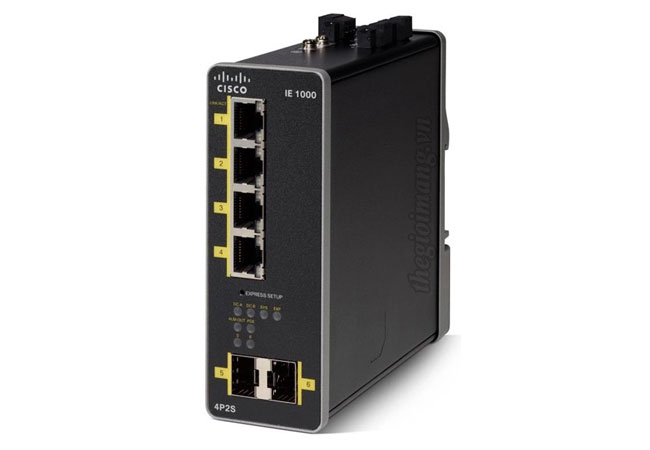

Switch Industrial IE-1000-4P2S-LM Cisco IE1000 with 4 FE Copper PoE+ ports and 2 GE SFP uplinks
Thiết bị chuyển mạch Switch Cisco Industrial IE-1000-4P2S-LM
| Model | IE-1000-4P2S-LM |
| Switches Configurations | |
| Fast Ethernet Copper Uplink | |
| GE SFP Uplink | 2 |
| Fast Ethernet Copper Downlink | |
| PoE/PoE+ | 4 |
| PoE Budget | 120W |
| Input Power Voltage | 12-24V |
| Switch Performance and Scalability | ● Maximum Forwarding Bandwidth 2.8Gbps ● Maximum Switching Bandwidth 5.6Gbps |
| Product specifications | |
| Hardware | ● DRAM: 128 MB DDR2 without ECC ● Onboard flash memory: 160 MB |
| Alarm | ● Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC |
| Power consumption | ● IE1000-4P2S: without PoE 8.6W, with PoE 72-140.4W |
| Connectors and cabling | ● 100BASE-FX MMF (2 km)—TBD with engineer input ● 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Dimensions (H x W x D) including DIN rail | ● IE-1000-4P2S-LM : 5.0”H x 1.8” W x 5.3”D (127mm H x 45.7mmW x 134mm D) |
| Weight | ● IE-1000-4P2S-LM - 1.70 lb (0.77 kg) |
IE-1000-4P2S-LM : IE1000 with 4 FE Copper PoE+ ports and 2 GE SFP uplinks
