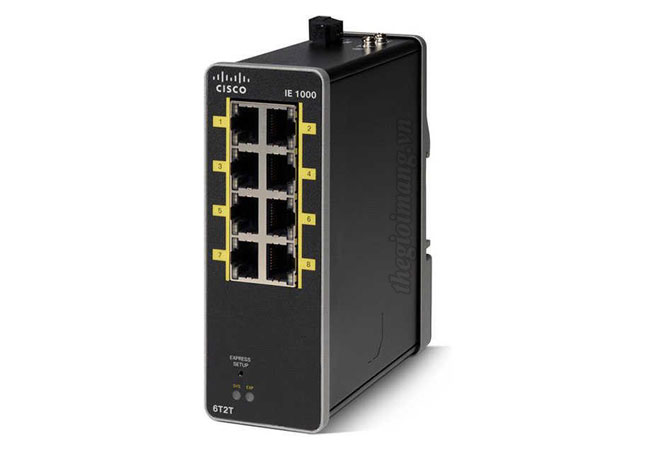

Cisco IE-1000-6T2T-LM

Switch Industrial IE-1000-6T2T-LM Cisco IE1000 with 6 FE Copper ports and 2 FE Copper uplinks

  • 2 Fast Ethernet Copper Uplink
  • 6 Fast Ethernet Copper Downlink
  • Forwarding Bandwidth 2.8Gbps
  • Switching Bandwidth 5.6Gbps
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Cisco Industrial IE-1000-6T2T-LM

Model IE-1000-6T2T-LM
Switches Configurations
Fast Ethernet Copper Uplink 2
GE SFP Uplink
Fast Ethernet Copper Downlink 6
PoE/PoE+
PoE Budget
Input Power Voltage 12-24V
Switch Performance and Scalability ● Maximum Forwarding Bandwidth 2.8Gbps
● Maximum Switching Bandwidth 5.6Gbps
Product specifications
Hardware ● DRAM: 128 MB DDR2 without ECC
● Onboard flash memory: 160 MB
Alarm ● Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC
Power consumption ● IE1000-6T2T: 5.3W
Connectors and cabling ●  100BASE-FX MMF (2 km)—TBD with engineer input
●  10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Dimensions (H x W x D) including DIN rail ● IE-1000-6T2T-LM: 5.0” H x 1.8” W x 4.5” D (127mm H x 45.7mm W x 115mm D)
Weight ● IE-1000-6T2T-LM - 1.25 lb (0.57 kg)

IE-1000-6T2T-LM : IE1000 with 6 FE Copper ports and 2 FE Copper uplinks

Data sheet Cisco Industrial Ethernet 1000 Series Switches
