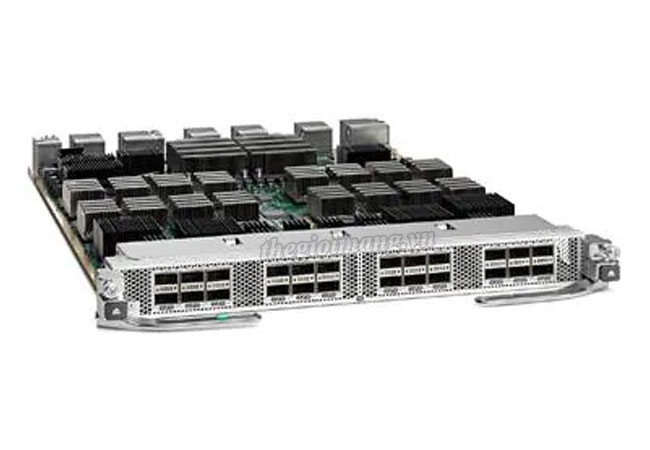

Mã sản phẩm	N77-F324FQ-25
System
Product compatibility	Supported on Cisco Nexus 7700 2-, 6-, 10-, and 18-Slot Switch chassis.
Software compatibility	Contact your local account representative for software release availability
Front-panel LEDs	● Status: Green (operational), red (faulty), or orange (module booting) ● Link: Green (port enabled and connected), orange (port disabled), off (port enabled and not connected), or blinking green and orange in conjunction with ID LED blue (port flagged for identification; beacon) ● ID: Blue (operator has flagged this card for identification; beacon) or off (module not flagged)
Programming interfaces	● XML ● Scriptable command-line interface (CLI) ● Cisco Data Center Network Manager (DCNM) web services ● Python ● Tool Command Language (TCL) Interpreter ● Cisco Embedded Event Manager (EEM) ● Cisco One Platform Kit (OnePK™) ● OpenFlow
Physical Interfaces
Connectivity	24 ports of 40 Gigabit Ethernet (QSFP+)
Maximum port density	● 384 ports of 40 Gigabit Ethernet in 7700 18-Slot chassis ● 192 ports of 40 Gigabit Ethernet in 7700 10-Slot chassis ● 96 ports of 40 Gigabit Ethernet in 7700 6-Slot chassis
Queues per port	4 ingress, and 8 egress
VOQ buffer	144 MB per module
Jumbo frame support for bridged and routed packets	Up to 9216 bytes
SoC
Forwarding performance	1.44 bpps of Layer 2 and Layer 3 forwarding capacity for both IPv4 and IPv6 packets
MAC address entries	64,000
VLAN	4096 simultaneous VLANs per VDC
IPv4 entries	64,000
IPv6 entries	32,000
Adjacency entries	64,000
ACLs	16,000
CoPP	Supported
Environmental
Physical dimensions	● Occupies one I/O module slot in a 7700 platform chassis ● Dimensions: 1.75 x 15.9 x 21.8 in. (4.4 x 40.39 x 55.37 cm) ● Weight: 17 lb (7.7 kg)
Environmental conditions	● Operating temperature: 32 to 104°F (0 to 40°C) ● Operational relative humidity: 5 to 90%, noncondensing ● Storage temperature: -40 to 158°F (-40 to 70°C) ● Storage relative humidity: 5 to 95%, noncondensing
Regulatory compliance	● EMC compliance ● FCC Part 15 (CFR 47) (USA) Class A ● ICES-003 (Canada) Class A ● EN55022 (Europe) Class A ● CISPR22 (International) Class A ● AS/NZS CISPR22 (Australia and New Zealand) Class A ● VCCI (Japan) Class A ● KN22 (Korea) Class A ● CNS13438 (Taiwan) Class A ● CISPR24 ● EN55024 ● EN50082-1 ● EN61000-3-2 ● EN61000-3-3 ● EN61000-6-1 ● EN300 386
Environmental standards	● NEBS criteria levels* ◦ SR-3580 NEBS Level 3 (GR-63-CORE and GR-1089-CORE) ● Verizon NEBS compliance* ◦ Telecommunications Carrier Group (TCG) Checklist ● Century Link NEBS requirements* ◦ Telecommunications Carrier Group (TCG) Checklist ● ATT NEBS requirements* ◦ ATT TP76200 level 3 ● ETSI* ◦ ETSI 300 019-2-1, Class 1.2 Storage ◦ ETSI 300 019-2-2, Class 2.3 Transportation ◦ ETSI 300 019-2-3, Class 3.2 Stationary Use
Safety	● UL/CSA/IEC/EN 60950-1 ● AS/NZS 60950
Warranty	The 7700 platform switches come with the standard Cisco 1-year limited hardware warranty
