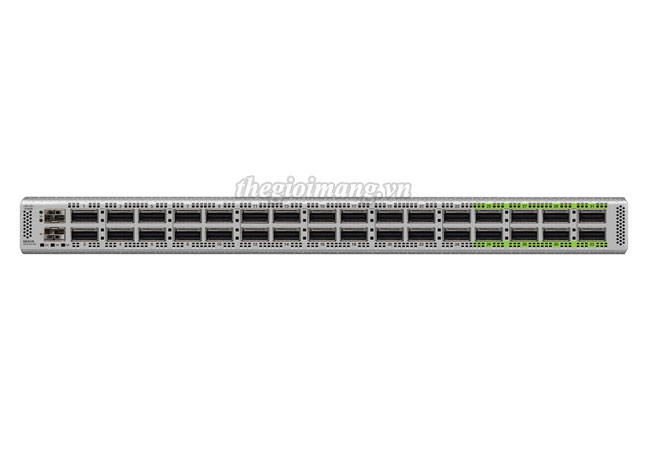

Thiết bị chuyển mạch Switch Cisco Nexus N9K-C9332D-GX2B
Model | N9K-C9332D-GX2B |
Physical | ● 32-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports ● Buffer: 120MB ● System memory: 32 GB ● SSD: 128GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) ● Hewitt Lake CPU: 4 cores |
Power and cooling |
● Power: 1500W AC or 1500 DC ● Input voltage: 100 to 240V* AC ● Hot-swappable, 6 fans, 5+1 redundancy ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● Port-side intake or port-side exhaust options ● Typical power: 650 (AC) ● Maximum power: 1250 (AC) |
Environmental | ● Physical (H x W x D): 1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C) This is correct ● Humidity: 5 to 85% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m) |
Performance and scalability specifications | |
Number of slices | 2 slice-pairs |
Maximum number of IPv4 Longest Prefix Match (LPM) routes | ~2 Million |
Maximum number of IPv4 host entries | ~2 Million |
Maximum number of MAC address entries | ~1 Million |
Maximum number of multicast routes | 256,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Maximum: 32,000 |
Maximum number of Access-Control-List (ACL) entries | ● 6000 ingress/slice ● 3000 egress/slice ● Max: 24,000 ingress, 12,000 egress |
Maximum number of VLANs | 4096 |
Number of Virtual Routing and Forwarding (VRF) instances | Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 2K |
Maximum number of links in a port channel | 1K |
Number of active SPAN sessions | 32 |
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances | 4K |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size | 128K/slice |
Number of Network Address Translation (NAT) entries | 1K |
Weight | |
Cisco Nexus 9332D-GX2B without power supplies or fans | 28 lbs (12.7 kg) |
N9K-C9332D-GX2B : Cisco Nexus 9332D-GX2B Switch with 32p 400/100-Gbps QSFP-DD ports and 2p 1/10 SFP+ ports
