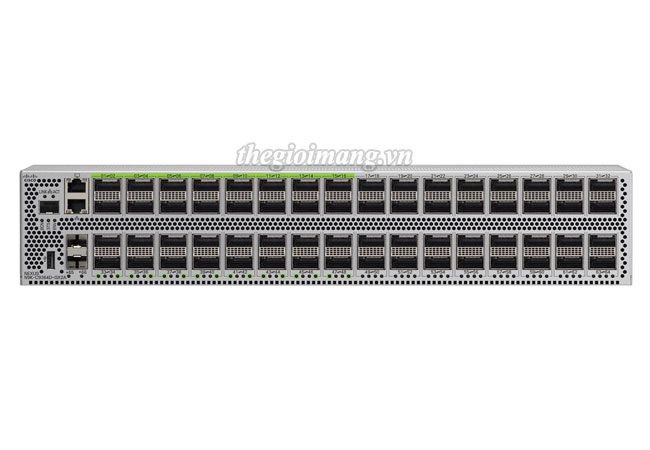

Thiết bị chuyển mạch Switch Cisco Nexus N9K-C9364D-GX2A
Model | N9K-C9364D-GX2A |
Physical | ● 64-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports ● Buffer: 120MB ● System memory: 32GB ● SSD: 128GB ● USB: 1 port ● RS-232 serial console ports: 1 ● Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) ● Hewitt Lake CPU: 6 cores |
Power and cooling | ● Power: 3000W AC ● Input voltage: 100 to 240V* AC ● Hot-swappable, 4 fans, 3+1 redundancy ● Frequency: 50 to 60 Hz (AC) ● Efficiency: 90% or greater (20 to 100% load) ● Port-side intake ● Typical power: 2100 (AC) ● Maximum power: 2800 (AC) |
Environmental | ● Physical (H x W x D): 3.45 x 17.3 x 29.78 in. (8.76 x 43.94 x 75.65 cm) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C) This is correct ● Humidity: 5 to 85% (noncondensing) ● Altitude: 0 to 13,123 ft (0 to 4000m) |
Performance and scalability specifications | |
Number of slices | 4 slice-pairs |
Maximum number of IPv4 Longest Prefix Match (LPM) routes | ~1 Million |
Maximum number of IPv4 host entries | ~1 Million |
Maximum number of MAC address entries | ~500K |
Maximum number of multicast routes | 256,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Maximum: 32,000 |
Maximum number of Access-Control-List (ACL) entries |
● 6000 ingress/slice ● 3000 egress/slice ● Max: 48,000 ingress, 24,000 egress |
Maximum number of VLANs | 4096 |
Number of Virtual Routing and Forwarding (VRF) instances | Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 2K |
Maximum number of links in a port channel | 1K |
Number of active SPAN sessions | 32 |
Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances | 4K |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size | 64K/slice |
Number of Network Address Translation (NAT) entries | 1K |
Weight | |
Cisco Nexus 9364D-GX2A without power supplies or fans | 58 lbs (26.3 kg) |
N9K-C9364D-GX2A : Cisco Nexus 9364D-GX2A Switch with 64p 400/100-Gbps QSFP-DD ports and 2p 1/10 SFP+ ports
