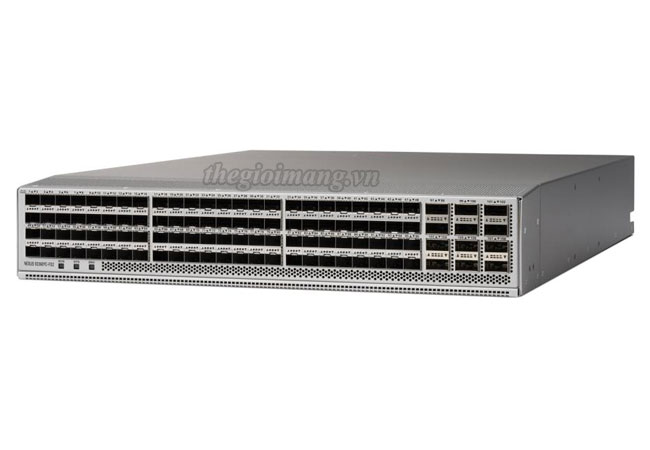

Cisco Nexus N9K-C93360YC-FX2

Switch Cisco Nexus N9K-C93360YC-FX2 - Nexus 9K Fixed with 96p 1/10G/25G SFP and 12p 40G/100G QSFP28
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị chuyển mạch Switch Cisco Nexus N9K-C93360YC-FX2

Model N9K-C93360YC-FX2
Switch specifications
Ports 96 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports
Supported speeds 1/10/25-Gbps on downlinks
40/100-Gbps on uplinks
Breakout supported ports, 97-108: 4x10/25G
CPU 4 cores
System memory Upto 24 GB
SSD drive 128 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP+
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 1200W AC, 1200W HVAC/HVDC
Typical power (AC) 404W
Maximum power (AC) 900W
Input voltage (AC) 100 to 240V
Input voltage (High-Voltage AC [HVAC]) 100 to 277V
Input voltage (DC) –40V to –72V
Input voltage (High-Voltage DC [HVDC]) –240V to –380V
Frequency (AC) 50 to 60 Hz
Fans 3 fan trays
Airflow Port-side intake and exhaust
Physical dimensions (H x W x D) 3.38 x 17.41 x 24.14in. (8.59 x 44.23 x 61.31 cm)
Acoustics 76.7 dBA at 40% fan speed, 88.7 dBA at 70% Fan speed and 97.4 dBA at 100% Fan speed
RoHS compliance Yes
MTBF 320,040 hours
Minimum ACI image ACI-N9KDK9-14.1.2
Minimum NX-OS image NXOS-9.3(1)
Performance and scalability specifications
Maximum number of Longest Prefix Match (LPM) routes 896,000
Maximum number of IP host entries 896,000
Maximum number of MAC address entries 256,000
Maximum number of multicast routes 128,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups Shipping: 8,000
Maximum: 32,000
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch 16
Maximum number of Access Control List (ACL) entries Per slice of the forwarding engine:
5000 ingress
2000 egress
Maximum number of VLANs 4096
Number of Virtual Routing and Forwarding (VRF) instances Shipping: 1,000
Maximum: 16,000
Maximum number of ECMP paths 64
Maximum number of port channels 512
Maximum number of links in a port channel 32
Number of active SPAN sessions 4
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances 3,967
Maximum number of Hot-Standby Router Protocol (HSRP) groups 490
Number of Network Address Translation (NAT) entries 1,023
Maximum number of Multiple Spanning Tree (MST) instances 64
Flow-table size used for Cisco Tetration Analytics platform 64,000
Number of Queues 8
Environmental properties
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature –40 to 158°F (–40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)
Weight
Cisco Nexus 93360YC-FX2 without power supplies or fans 27.4 lb (12.4kg)

N9K-C93360YC-FX2 : Nexus 9K Fixed with 96p 1/10G/25G SFP and 12p 40G/100G QSFP28

Data sheet Cisco Nexus 9300-FX2 Series Switches
