CS-T10-TS-K9 Cisco Room Navigator for Table là Bảng điều khiển để bàn với màn hình cảm ứng 10 inch được thiết kế có mục đích nhằm mang lại khả năng truy cập tức thì vào việc tham gia cuộc họp liền mạch, điều khiển cuộc họp, đặt phòng thông minh, điều khiển phòng nâng cao trên trải nghiệm Cisco Rooms, đồng thời hỗ trợ bên thứ ba.
CS-T10-TS-K9 Cisco Room Navigator là bảng điều khiển để bàn có màn hình cảm ứng 10 inch, độc lập với nền tảng, cho phép bạn mang lại trải nghiệm không gian làm việc liền mạch bằng cách điều khiển trực quan các thiết bị cộng tác Cisco của mình, áp dụng điều khiển phòng và hội nghị video cũng như chạy các ứng dụng của bên thứ ba.
Cisco Room Navigator để bàn là một thiết bị đa năng kết hợp các điều khiển, màn hình hiển thị trực quan và cảm biến vào một bảng điều khiển cảm ứng trang nhã. Nó có thể được cấu hình như một thiết bị điều khiển phòng hoặc một thiết bị đặt phòng trong phòng họp.
Tính năng và lợi ích của Cisco CS-T10-TS-K9
Tính năng | Room Navigator for Table (CS-T10-TS-K9) |

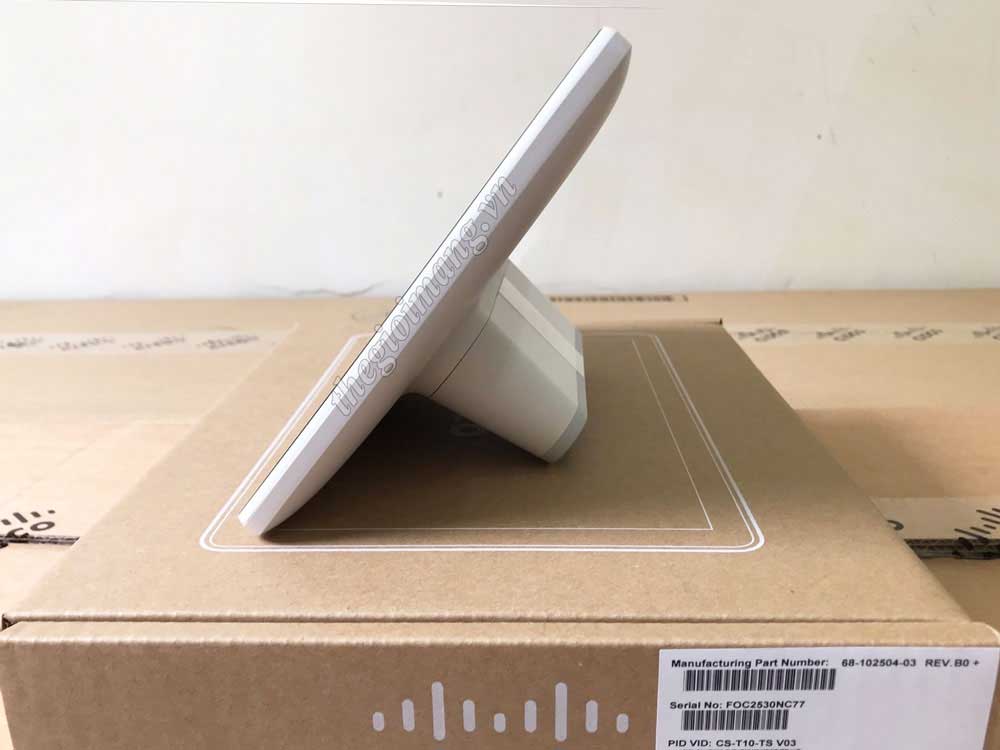

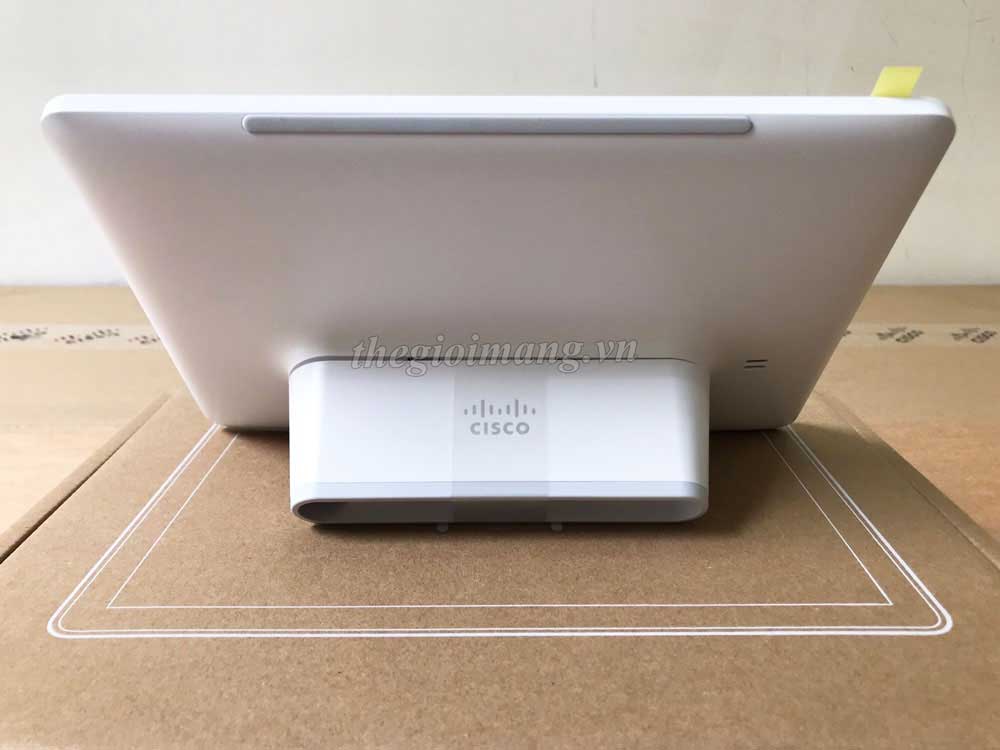

Mẫu mã | Bảng điều khiển cảm ứng để bàn. Xoay thiết bị, cung cấp hai góc nhìn (34° và 51°) trong khi giao diện người dùng tự động xoay 180°. |
Các tính năng chính | Bảng điều khiển Cisco Room Navigator đặt trên bàn là một thiết bị cảm ứng 10 inch được thiết kế có mục đích nhằm mang lại khả năng truy cập tức thì vào việc tham gia cuộc họp liền mạch, điều khiển cuộc họp, đặt phòng thông minh, điều khiển phòng nâng cao trên trải nghiệm Cisco Rooms gốc đồng thời hỗ trợ bên thứ ba -các ứng dụng trải nghiệm bữa tiệc hoặc nơi làm việc tùy chỉnh để tìm đường, bảng hiệu kỹ thuật số và đặt chỗ. Thiết bị có thể được triển khai như một bộ điều khiển phòng hoặc màn hình hiển thị lịch trình phòng. |

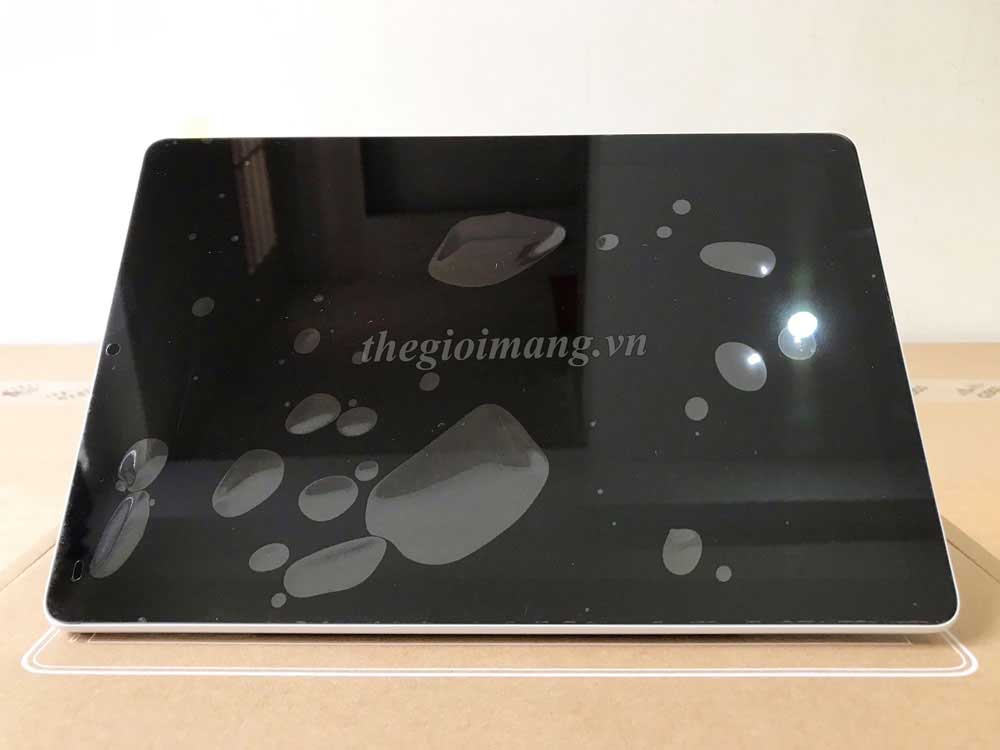

Màn hình | • Màn hình LCD cảm ứng điện dung • Đường chéo 10,1 inch • Chống chói và chống vân tay |
Độ phân giải | 1920 x 1200 pixel |
Phần mềm được hỗ trợ | • CE 9.14 trở lên hoặc Cisco RoomOS • Bảng điều khiển Microsoft Teams Rooms trên Android |
Giao thức | TCP/IP |
Tính năng âm thanh | Loa chỉ dành cho phản hồi đầu vào bàn phím |
Cảm biến | Nhiệt độ, độ ẩm, chất lượng không khí (TVOC), micrô (tiếng ồn chung, tiếng ồn xung quanh và âm thanh), cảm biến ánh sáng xung quanh (ALS) |
Ghép nối | Trực tiếp tới codec hoặc ghép nối từ xa (IP) |
Bộ nhớ Memory | 4GB |
Kết nối | Ethernet, microUSB, lỗ kim khôi phục cài đặt gốc |
Kích thước vật lý | • 2,8 x 9,53 x 6,42 inch (7,1 x 24,2 x 16,3 cm) • Chiều cao tối đa ở vị trí thẳng đứng 5,2 inch (13,2 cm) |
CS-T10-TS-K9= : Cisco Room Navigator - Table stand version - Spare
Data Sheet Cisco Room Navigator for Table
Thông số kỹ thuật Cisco CS-T10-TS-K9
Specification | Description |
Product compatibility | Cisco Room Kit Series, Cisco Room Series, Cisco Room Panorama Series, Cisco Board Series (Board S Series and Board Pro Series) |
Software compatibility | ● RoomOS 9.14.3 or later |
● Microsoft Teams Rooms Console on Android (optimized hardware for Microsoft Teams Rooms compatibility) | |
Call-control compatibility | ● Hosted: Controlled by codec, Cisco Unified Communications Manager 10.5.2 or newer, Webex Cloud |
● Cloud: Webex Cloud | |
Native Cisco room booking | ● Integrates with O365, Exchange and Google Calendar through Webex Hybrid Calendar service (requires Webex activation) |
● Ad-hoc space reservation with a few taps | |
● View all upcoming meetings from room calendar | |
● Extend your meetings | |
● Touchless booking inside the room with Webex Assistant | |
● Meeting reminders with single tap extension | |
Third-party web applications | ● Supports the usage of persistent web apps enabling third-party experiences |
● Web apps running on Room Navigator get access to the meeting room sensors’ data and the Webex hybrid calendar to enhance custom integrations for wayfinding, room booking, and digital signage | |
Default components | ● Room Navigator touch panel |
● Table stand | |
Signaling protocols | TCP/IP |
Display | ● Capacitive touch LCD |
● 10.1-inch diagonal | |
● Anti-glare and anti-fingerprint | |
Resolution | 1920 x 1200 |
Memory | 4GB |
Sensors | ● Measures temperature, humidity, and air quality (TVOC). This is combined with general noise, ambient noise, and reverberation time (RT60) for room acoustics originating from built-in sensors in the Cisco video endpoints |
● Sensor values are accessible from RoomOS cloud APIs, displayed on the Control Hub dashboard and can be extracted to Cisco Spaces, third-party analytics and workspace management tools | |
Language support | English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian |
Digital signage | Configurable in Control Hub |
Physical dimensions(H x L x D) | ● 2.8 x 9.53 x 6.42 in. (7.1 x 24.2 x 16.3 cm) |
● Maximum height in vertical position 5.2 in (13.2 cm) | |
● Minimal height in lower position on the table: 3.85 in (9.77 cm) | |
Weight | 1.39lb (0.63kg) |
Power | ● Power over Ethernet (PoE) 802.3af Class 0 |
● 100-240VAC, 0.5A max, 50/60Hz | |
● Option to set up office hours for the Room Navigator helping with energy savings and extends the lifetime of the touchscreen where digital signage, booking, and wake-up on motion detection is activated. | |

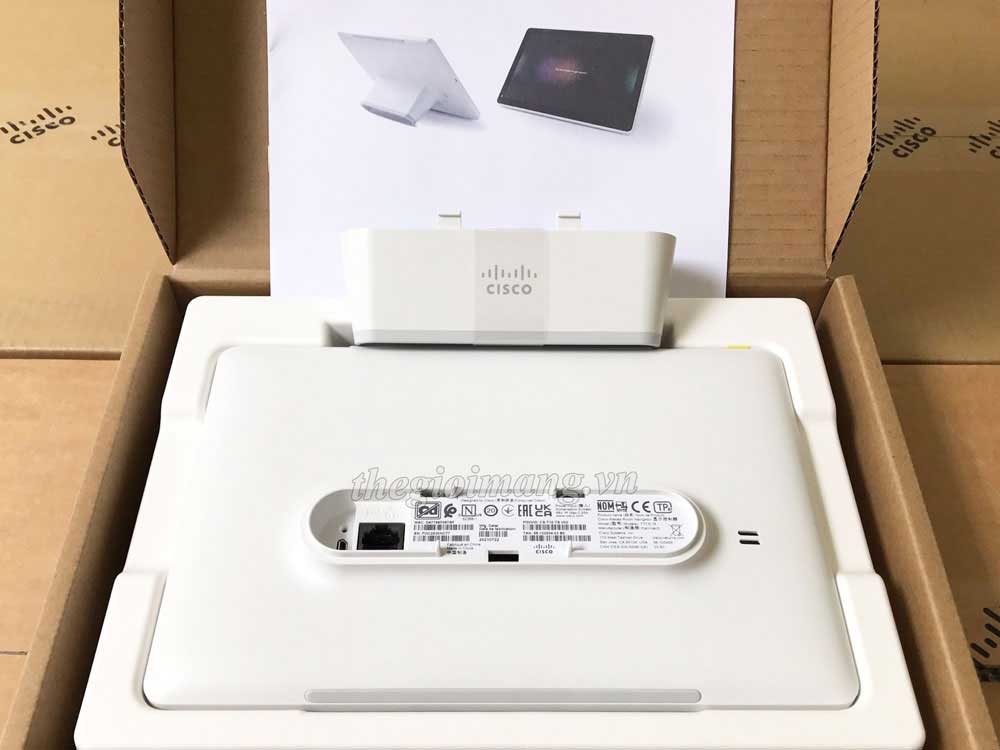

Interfaces | ● 1x Ethernet (RJ-45) 100/1000 Mbps for LAN (external network) or direct pairing |
● 1x microUSB (service port) | |
● 1x factory reset pinhole | |
Security | ● Secure management using HTTPS and SSH protocols |
● Password protection for IP administration | |
● Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM) | |
● WPA3TM and WPA3-Enterprise with CCMP128 Wi-Fi ® security | |
● Password protection to access administration | |
● Network settings protection | |
● Support for 802.1x authentication protocol (either when the device is paired directly or remotely with the video endpoint) | |
Registration | ● Room Navigator can be registered directly to a Cisco video device (via direct or remote pairing) or registered to the Webex Cloud (requires Room Navigator license) |
● Room Navigator can be paired with a Cisco video device or deployed as a standalone hardware for workspaces without Cisco video deployment. Learn more about using the Room Navigator as a standalone device | |
Administration | ● Centralized room and device management in Control Hub |
● Workspace insights on a per workspace level and single dashboard for all workspaces | |
● Simple onboarding – PIN-based pairing with room device | |
Operating temperature and humidity | ● 0°C to 40°C (32°F to 104°F) ambient temperature |
● 10% to 90% Relative Humidity (RH) | |
Storage and transport temperature | ● -20°C to 60° (-4° to 140°F) at RH 10% to 90% (noncondensing) |
Regulatory compliance and standards | ● Directive 2014/30/EU (EMC Directive) and Directive 2014/35/EU (Low-Voltage Directive) |
● Directive 2011/65/EU (RoHS) | |
● Directive 2002/96/EU (WEEE) | |
● NRTL approved (product safety) | |
● EMC: EN 55032 – Class A, EN 55024 | |
● Safety: EN 60950-1, EN 62479 | |
● FCC CFR 47 Part 15B (EMC) – Class A |
