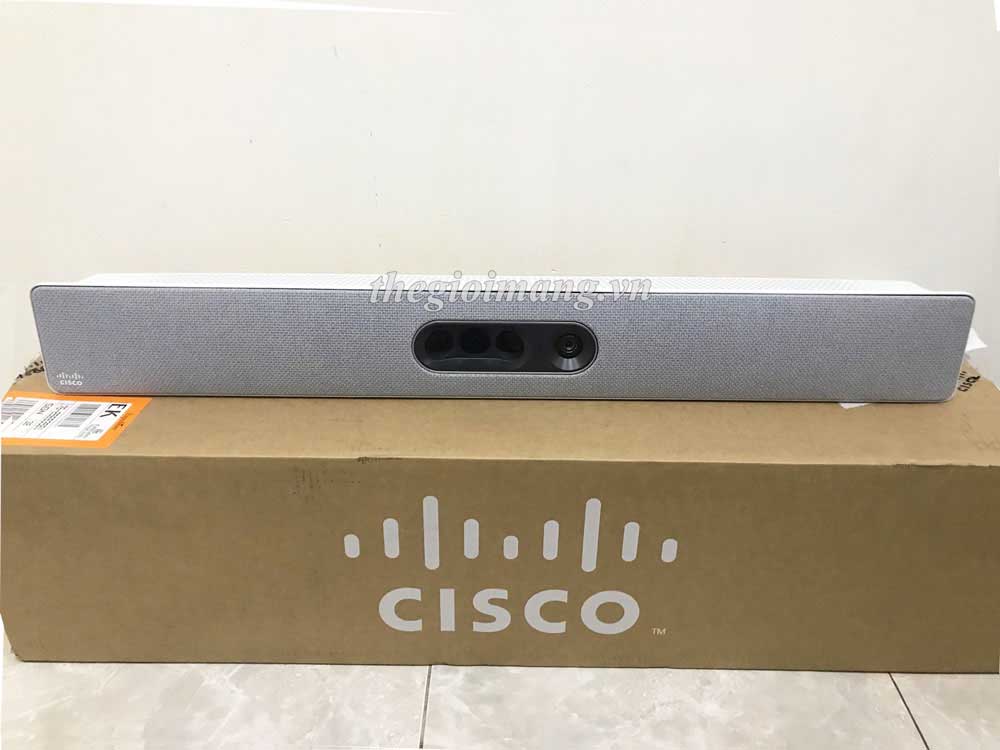

Cisco Webex Room Kit Plus (CS-KITPLUS-K9)

CS-KITPLUS-K9 Room Kit Plus w/Codec Plus, Quad Camera and Touch 10.

  • For larger, deeper rooms with up to 14 people
  • Separate Codec Plus and quad camera
  • Integrated speakers and microphones
  • RoomOS, Touch 10 controller
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng


Thiết bị hội nghị truyền hình Cisco Webex Room Kit Plus CS-KITPLUS-K9

Mã sản phẩm

CS-KITPLUS-K9

Software compatibility

●  Cisco Collaboration Endpoint Software Version 9.0 or later, or Cisco Webex Room OS

Default components in Cisco Webex Room Kit Plus

●  Cisco Webex Codec Plus
●  Cisco Webex Quad Camera
●  Cisco Touch 10 control unit
●  Wall mount for Quad Camera

Optional hardware components

●  Cisco Table Microphone, Wall mount for Codec Plus, cables

Bandwidth

●  Up to 6 Mbps point-to-point

Minimum bandwidth for resolution/frame rate

H.264

●  720p30 from 768 kbps
●  720p60 from 1152 kbps
●  1080p30 from 1472 kbps
●  1080p60 from 2560 kbps

Firewall traversal

●  Cisco Expressway technology
●  H.460.18, H.460.19 firewall traversal

Video standards

●  H.264, H.265, and H.263 for TANDBERG MXP interoperability only

Video inputs

●  One HDMI input supports formats up to maximum 1080p60
●  Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
●  Extended Display Identification Data (EDID)
●  Consumer Electronics Control (CEC) 2.0

Video outputs

●  Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
●  Consumer Electronics Control (CEC) 2.0

Encode and decode

●  Main video: Full HD 1080p60
●  Presentation channel: UHD 4K 2160p5, including 1080p30 and 720p60

Audio standards

●  G.711, G.722, G.722.1, G.729, AAC-LD, and Opus

Audio features

●  High-quality 20 kHz audio
●  Subwoofer line out for Quad Camera
●  Prepared for inductive loop (line out)
●  Automatic Gain Control (AGC)
●  Automatic noise reduction
●  Active lip synchronization

Audio inputs

●  Three microphones, 4-pin mini-jack
●  Embedded audio on two HDMI inputs

Audio outputs

●  1 line out mini-jack (stereo) (Codec Plus)
●  1 RCA output for subwoofer (Quad Camera)
●  Embedded audio on one HDMI output
●  HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera

Speakers
(Quad Camera)

●  High-quality speakers
●  Frequency response: 70 Hz to 20 kHz
●  Max output level SPL 90dB

Speaker tracking
(Quad Camera, SpeakerTrack 60)

●  6-element microphone array for accurate speaker tracking

Dual stream

●  H.239 (H.323) dual stream
●  Binary Floor Control Protocol (BFCP) (SIP) dual stream
●  Support resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60

Wireless sharing

●  Cisco Webex Teams app (up to 3840 x 2160p5)
●  Cisco Intelligent Proximity client (up to 1920 x 1080p5)

MultiSite features
(embedded multipoint)
(optional upgrade)

●  Adaptive SIP/H.323 MultiSite
◦   3-way resolution up to 1080p30 + content up to 4Kp5
◦   4-way resolution up to 720p30 + content up to 4Kp5
●  Full individual audio and video transcoding
●  H.323/SIP/VoIP in the same conference
●  Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
●  Best Impression (automatic continuous presence layouts)
●  Encryption and dual stream from any site

Protocols

●  H.323
●  SIP
●  Cisco Webex
●  ISDN PRI/BRI using the optional ISDN Link

Embedded encryption

●  H.323 and SIP point-to-point
●  Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
●  Automatic key generation and exchange

IP network features

●  DNS lookup for service configuration
●  Differentiated services (Quality of Service [QoS])
●  IP-adaptive bandwidth management (including flow control)
●  Automatic gatekeeper discovery
●  Dynamic playout and lip-sync buffering
●  H.245 Dual-Tone Multi-Frequency (DTMF) tones in H.323
●  RFC 4733 DTMF tones in SIP
●  Date and time support using Network Time Protocol (NTP)
●  Uniform Resource Identifier (URI) dialing
●  Dynamic Host Configuration Protocol (DHCP)
●  802.1X network authentication
●  802.1Q Virtual LAN
●  802.1p [QoS and Class of Service (CoS)]
●  Cisco Media Assure and ClearPath, including packet loss-based downspeeding

Call control

●  Cisco Unified Communications Manager (CUCM)
◦   Native registration CUCM
◦   Requires CUCM Version 10.5.2 or later with device pack Room Kit Plus
●  Cisco Expressway
◦   Native registration with Expressway
●  Cisco Webex
●  Third-party H.323 Gatekeepers and standards-based SIP proxies

IPv6 network support

●  Single call stack support for both H.323 and SIP
●  Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
●  Support for both static and automatic IP configuration (stateless address auto configuration)

Security features

●  Management using HTTPS and SSH
●  IP administration password
●  Password to access administration features on Touch 10 controller
●  Disable IP services
●  Network settings protection

Certificate management

●  Certificate Authority Proxy Function (CAPF) support for additional security
●  Manufacturer-Installed Certificates (MIC)
●  Locally Significant Certificates (LSC)
●  X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported

Other interfaces

●  USB 2.0 port, uUSB, factory reset pinhole

Network interfaces Codec Plus

●  1 Ethernet (RJ-45) 10/100/1000 for LAN
●  1 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
●  1 Ethernet (RJ-45) 10/100/1000 with PoE, for direct pairing with Touch 10
●  Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN
●  2x2 multiple input and multiple output (MIMO)

Power supplies (2)

●  100 to 240 VAC, 50/60 Hz, 12V DC input
●  Average 20 W, peak 70W
●  Quad camera must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019

Operating temperature and humidity

●  0°C to 35°C (32°F to 95°F) ambient temperature
●  10% to 90% Relative Humidity (RH)

Storage and transport temperature

●  -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)

Locking mechanism

●  Kensington security lock

Dimensions

C78-738752-00_Table Figure 01-new.jpg

●  Quad Camera:
◦   Width: 37.4 in. (95.0 cm)
◦   Height: 4.7 in. (12.0 cm)
◦   Depth: 4.0 in. (10.3 cm)
◦   Weight: 10.6 lb. (4.8 kg)

C78-738752-00_Table Figure 02-new.jpg

●  Codec Plus:
◦   Width: 14.1 in. (35.9 cm)
◦   Height: 1.7 in. (4.3 cm)
◦   Depth: 5.6 in. (14.3 cm)
◦   Weight: 3.9 lb. (1.77 kg)

Camera overview
(Quad Camera)

●  (4) 5K CMOS sensors with machine intelligent switching; providing single HD output at 1080p
●  Support up to 60 fps
●  15.1 MP image sensor
●  1/1.7 CMOS
●  5x digital zoom (3 tele-lenses each with 50° horizontal field of view)
●  f/2.0 aperture
●  83° horizontal field of view; 51.5° vertical field of view
●  Auto-framing (audio + face detect)
●  5120 x 2880 pixel resolution
●  Auto focus, brightness, and white balance
●  Focus distance 1 m to infinity



Thiết bị hội nghị truyền hình CISCO Room Kit Plus CS-KITPLUS-K9

- Thiết bị hội nghị truyền hình CS-KITPLUS-K9 thuộc dòng thông minh sử dụng cho các loại phòng họp từ trung bình - lớn.

- Một bộ thiết bị tiêu chuẩn bao gồm: camera, micro, speaker, bộ giải mã sử dụng công nghệ thông minh tự động bắt hình người họp (auto tracking voice, video).

- Thiết bị phần cứng chuyên dụng chuẩn quốc tế ITU-T, giao thức: SIP/ H323.

- Chuẩn nén hình ảnh: H264/H265, full HD 1080p.

- Hỗ trợ 2 luồng Video input/output chuẩn HDMI.

- Tích hợp 4 camera 5K Ultra HD.

- Góc mở camera: 83 độ.

- Zoom 5X tự động bắt hình.

- Hỗ trợ mở rộng 3 micro đa hướng, hệ thống âm thanh ngoài.

- Chia sẻ dữ liệu không dây.

- Hỗ trợ nâng cấp MCU 4 điểm.

- Bộ thiết bị tiêu chuẩn kèm theo: Bảng điều khiển cảm ứng 10 inch, nguồn, giá treo, cáp và phụ kiện đi kèm.

- Sử dụng cho phòng họp trung bình: 10-30 người.

Data Sheet Cisco Webex Room Kit Plus

Sản phẩm liên quan

Cisco Webex Room Kit...

Cisco CS-KIT-MINI-K9 Room Kit Mini with microphone array,...

Liên hệ để có giá tốt

Cisco Webex Room Kit...

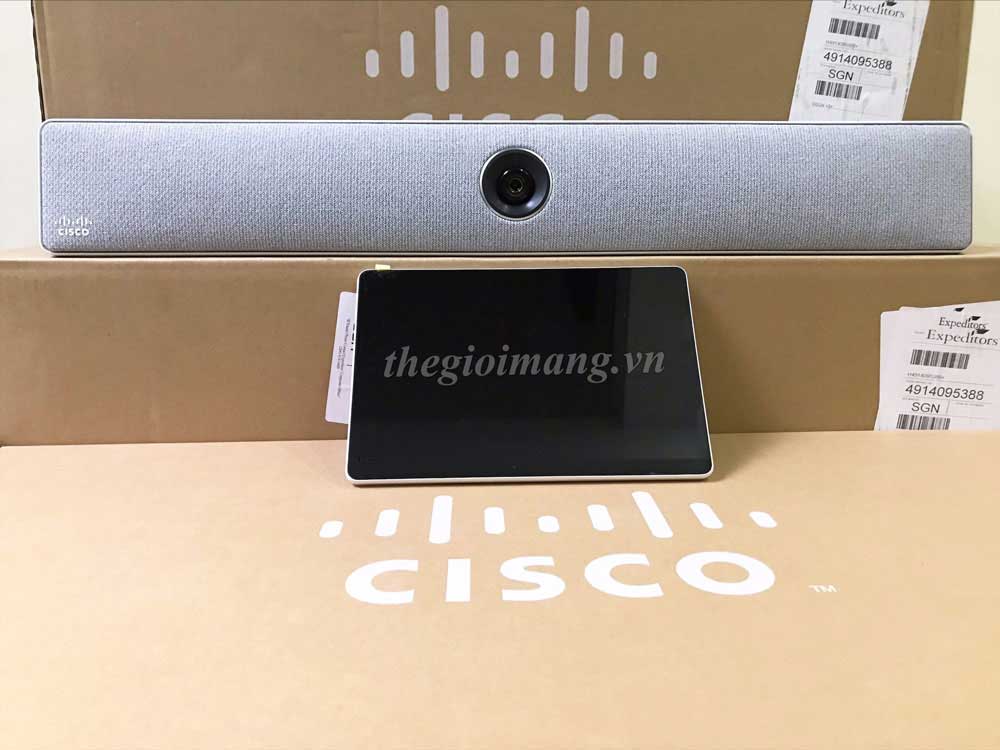

Cisco Webex CS-KIT-K9 Room Kit with integrated microphone,...

Liên hệ để có giá tốt

Cisco Webex Room USB...

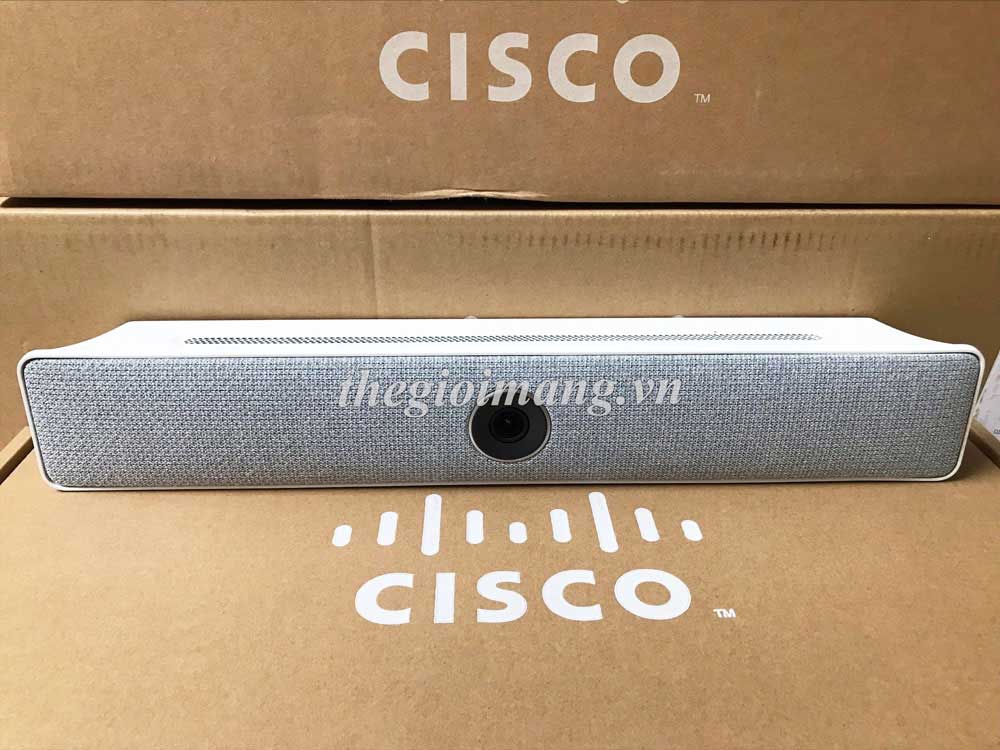

CS- ROOM-USB-K9 Cisco Webex® Room USB is a lighter version...
