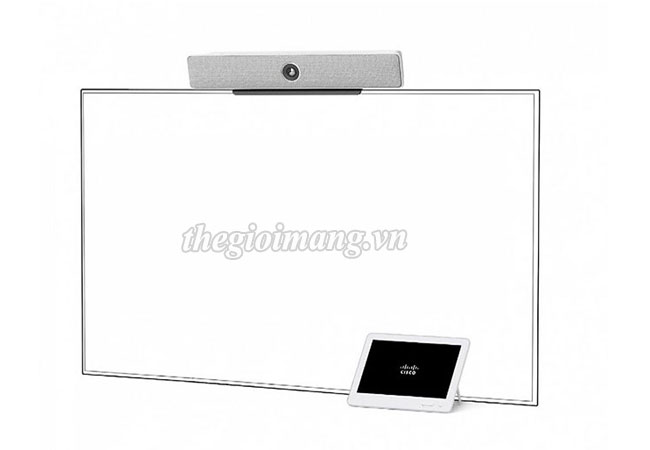

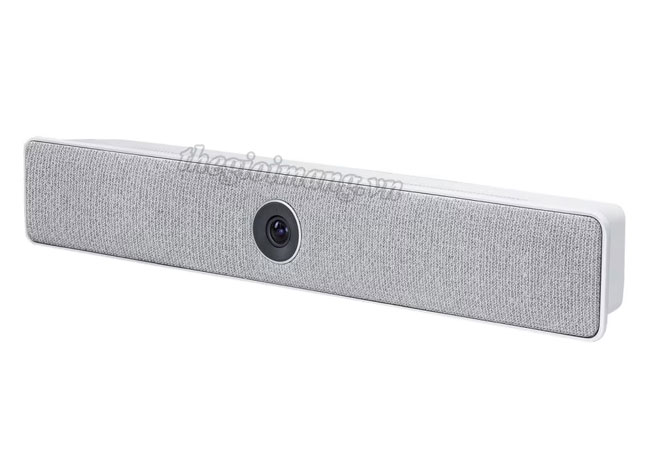

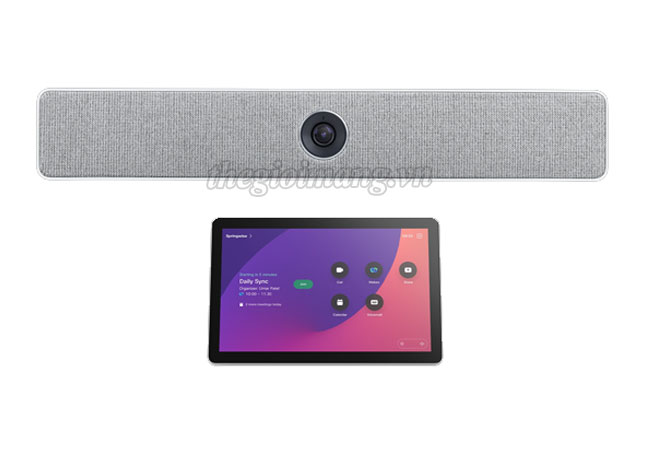

Cisco CS-KIT-MINI-K9 Room Kit Mini with microphone array, speakers and Touch 10.
Thiết bị hội nghị truyền hình Cisco Webex Room Kit Mini CS-KIT-MINI-K9
| Mã sản phẩm | CS-KIT-MINI-K9 |
| Software compatibility |
● Cisco Collaboration Endpoint Software Version 9.6 or later, and Cisco Webex Room OS
|
| Default components in Cisco Webex Room Kit Mini |  |
| Optional hardware components |
● HDMI presentation cable 8 m / 26.2 ft.
|
|
● 4 m / 13 ft USB cable for USB passthrough feature
|
|
|
● Screen Mount Kit
|
|
| Bandwidth |
● Up to 6 Mbps point to point
|
| Minimum bandwidth for resolution / frame rate | H.264: |
|
● 720p30 from 768 kbps
|
|
|
● 720p60 from 1152 kbps
|
|
|
● 1080p30 from 1472 kbps
|
|
|
● 1080p60 from 2560 kbps
|
|
| Firewall traversal |
● Cisco Expressway ™ technology
|
|
● H.460.18, H.460.19 firewall traversal
|
|
| Video standards |
● H.264
|
| Video inputs |
● One HDMI output supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60
|
|
● Consumer Electronics Control (CEC) 2.0
|
|
| Video outputs |
● 1 HDMI output supports formats up to 3840 x 2160p60 (4Kp60)
|
|
● Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p)
|
|
|
● Consumer Electronics Control (CEC) 2.0
|
|
| Audio standards |
● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
|
| Audio features |
● High-quality 20 kHz audio
|
|
● Automatic Gain Control (AGC)
|
|
|
● Automatic noise reduction
|
|
|
● Active lip synchronization
|
|
| Audio inputs |
● One audio in from HDMI
|
|
● Internal microphones
|
|
| Speakers (integrated) |
● High-quality speakers: full range speaker plus dual woofers in balanced configuration
|
|
● Frequency response 100 Hz to 20 kHz
|
|
|
● Amplifier power: 24W
|
|
|
● Max output level SPL 84 dB
|
|
| MultiSite |
● H.239 (H.323) dual stream
|
|
● Binary Floor Control Protocol (BFCP) (SIP) dual stream
|
|
|
● Supports resolutions up to 3840 x 2160p5
|
|
| Dual stream |
● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60
|
|
● Consumer Electronics Control (CEC) 2.0
|
|
| Wireless sharing |
● Cisco Webex Teams App (up to 3840 x 2160p5)
|
|
● Cisco Webex Meetings App (up to 3840 x 2160p5)
|
|
|
● Cisco Intelligent Proximity client (up to 1920 x 1080p5)
|
|
| Multipoint support |
● 4-way embedded SIP/H.323 conferencing capability with MultiSite option
|
|
MultiSite features (embedded multipoint) (optional upgrade)
|
● Adaptive SIP/H.323 MultiSite:
|
|
◦ 3-way resolution up to 1080p30 + content up to 1080p15
|
|
|
◦ 4-way resolution up to 720p30 + content up to 1080p15
|
|
|
● Full individual audio and video transcoding
|
|
|
● H.323/SIP/VoIP in the same conference
|
|
|
● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
|
|
|
● Best impression (automatic continuous presence layouts)
|
|
|
● Encryption and dual stream from any site
|
|
| Protocols |
● H.323
|
|
● SIP
|
|
|
● Cisco Webex
|
|
| Embedded encryption |
● H.323 and SIP point to point
|
|
● Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
|
|
|
● Automatic key generation and exchange
|
|
| IP network features |
● DNS lookup for service configuration
|
|
● Differentiated services (Quality of Service [QoS])
|
|
|
● IP-adaptive bandwidth management (including flow control)
|
|
|
● Automatic gatekeeper discovery
|
|
|
● Dynamic playout and lip-sync buffering
|
|
|
● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
|
|
|
● RFC 4733 DTMF tones in SIP
|
|
|
● Date and time support using Network Time Protocol (NTP)
|
|
|
● Media adaptation and resilience
|
|
|
● Uniform Resource Identifier (URI) dialing
|
|
|
● Dynamic Host Configuration Protocol (DHCP)
|
|
|
● 802.1X network authentication
|
|
|
● 802.1Q Virtual LAN
|
|
|
● 802.1p (QoS and Class of Service [CoS])
|
|
| Call control |
● Cisco Unified Communications Manager (Unified CM)
|
|
◦ Native registration with Unified CM
|
|
|
◦ Requires Unified CM Version 9.1(2) or later with device pack Room Kit Mini
|
|
|
● Cisco Expressway
|
|
|
◦ Native registration with Expressway
|
|
|
● Cisco Webex Service
|
|
|
● Third-party H.323 gatekeepers and standards-based SIP proxies
|
|
| IPv6 network support |
● Single call stack support for both H.323 and SIP
|
|
● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
|
|
|
● Support for both static and automatic IP configuration (stateless address auto configuration)
|
|
| Security features |
● Management using HTTPS and SSH
|
|
● IP administration password
|
|
|
● Menu administration password
|
|
|
● Disable IP services
|
|
|
● Network settings protection
|
|
|
● Privacy cover
|
|
| Network interfaces |
● One Ethernet (RJ-45) 10/100/1000 for LAN
|
|
● One Ethernet (RJ-45) for Cisco Touch 10 direct pairing
|
|
|
● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz, 2x2 MIMO
|
|
| USB pass-through |
● Ability to provide video, microphone, and speakers over one USB cable to a connected computer
|
|
● 720p video resolution
|
|
| Other interfaces |
● 1 USB 2.0 port type A
|
|
● 1 USB 2.0 port type C
|
|
|
● 1 mUSB port
|
|
|
● Factory reset pinhole
|
|
| Power |
● 100 to 240 VAC, 50/60 Hz, 12V DC input
|
|
● Average 20W, peak 70W
|
|
|
● Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019
|
|
| Operating temperature and humidity |
● 0°C to 35°C (32°F to 104°F) ambient temperature
|
|
● 10% to 90% Relative Humidity (RH)
|
|
| Storage and transport temperature |
● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing)
|
| Dimensions |  |
|
● Width: 19.7 in. (50.0 cm)
|
|
|
● Height: 3.2 in. (8.1 cm)
|
|
|
● Depth: 3 in. (7.7 cm)
|
|
|
● Weight: 4 lb. (1.5 kg)
|
|
| Packaging size | |
|
● Width: 23.8 in. (60.5 cm)
|
|
|
● Height: 12.8 in. (32.6 cm)
|
|
|
● Depth: 8.5 in. (21.6 cm)
|
|
|
● Weight: 7 lb. (3.2 kg)
|
|
| Camera overview |
● 4K UltraHD camera
|
|
● Supports up to 60 fps (max 30 fps with best overview enabled)
|
|
|
● 8 MP image sensor
|
|
|
● 1/1.4 CMOS
|
|
|
● 2x zoom
|
|
|
● f/1.4 aperture
|
|
|
● 120° horizontal field of view
|
|
|
● Auto framing (face detect)
|
|
|
● Auto brightness, and white balance
|
|
|
● Focus distance 1 m to infinity
|
- Thiết bị hội nghị truyền hình CS-KIT-MINI-K9 thuộc dòng thông minh sử dụng cho các loại phòng họp từ trung bình - nhỏ.
