Cisco CS-ROOM55-K9 Webex Room 55 with Touch10 and Mount. Thiết bị hội nghị truyền hình CISCO Webex Room 55 CS-ROOM55-K9: ● Bộ thiết bị tích hợp camera, micro, speaker, bộ giải mã, màn hình hiển thị ● Màn hình hiển thị: 55 inch 4K ● Chuẩn Video H264/H265, full HD 1080p ● Hỗ trợ 2 luồng Video input/output chuẩn HDMI ● Camera 5K Ultra HD, góc mở 83 độ, Zoom 3X tự động bắt hình.
Thiết bị hội nghị truyền hình Cisco Webex Room 55 (CS-ROOM55-K9)
| Mã sản phẩm | CS-ROOM55-K9 | |
| Software compatibility | ● Cisco Collaboration Endpoint Software Version 9.1.1 or later, and Cisco Webex Room OS | |
| Default components in Cisco Webex Room 55 with: | ||

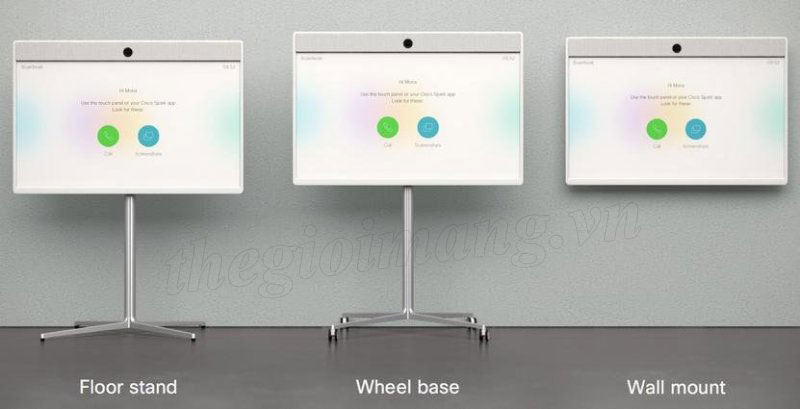

| Floor stand |  |
 |
| Wheel base |  ; |
 |
| Wall mount |  |
 |
| Optional hardware components | ● Microphone extension cable | |
| ● HDMI presentation cable 8m/26.2 ft. | ||
| Bandwidth | ● Up to 6 Mbps point-to-point | |
| Minimum bandwidth for resolution/frame rate | H.264: | |
| ● 720p30 from 768 kbps | ||
| ● 720p60 from 1152 kbps | ||
| ● 1080p30 from 1472 kbps | ||
| ● 1080p60 from 2560 kbps | ||
| Firewall traversal | ● Cisco Expressway ™ technology | |
| ● H.460.18, H.460.19 firewall traversal | ||
| Video standards | ● H.264 | |
| ● H.265 | ||
| Video inputs | ● Two HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60; HDMI 2 supports HDCP content for local viewing | |
| ● Consumer Electronics Control (CEC) 2.0 | ||
| Video outputs | ● One HDMI output supports formats up to 3840 x 2160 at 60 fps (4Kp60) | |
| ● Live video resolutions (encode and decode) up to 1920 x 1080 at 30, 60 fps (HD1080p) | ||
| ● Consumer Electronics Control (CEC) 2.0 | ||
| Audio standards | ● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus | |
| Audio features | ● High-quality 20-kHz audio | |
| ● Prepared for inductive loop (line out) | ||
| ● Automatic Gain Control (AGC) | ||
| ● Automatic noise reduction | ||
| ● Active lip synchronization | ||
| Audio inputs | ● Two microphones, 4-pin minijack | |
| ● Two audio in from HDMI | ||
| ● Internal microphone | ||
| Audio outputs (external) | ● 1 line out minijack (stereo) | |
| Speakers (integrated) | ● High-quality speaker system with left, center, and right channels, plus woofer | |
| ● Frequency response 70 Hz to 20 kHz | ||
| ● Amplifier power: 80W | ||
| ● Max output level SPL 98 dB | ||
| Speaker tracking | ● 6-element microphone array for accurate speaker tracking | |
| Display | ● 55 in. (1.4m) LCD monitor, LED backlight | |
| ● Resolution: 3840 x 2160 (16:9) | ||
| ● Contrast ratio: typical 1100 | ||
| ● Viewing angle: +/- 178 degrees | ||
| ● Response time: typical 8 ms | ||
| ● Brightness: typical 500 cd/m2 | ||
| Dual stream | ● H.239 (H.323) dual stream | |
| ● Binary Floor Control Protocol (BFCP) (SIP) dual stream | ||
| ● Supports resolutions up to 3840 x 2160 at 5 fps | ||
| Wireless sharing | ● Cisco Webex Teams app (up to 3840 x 2160 at 5 fps) | |
| ● Cisco Intelligent Proximity client (up to 1920 x 1080 at 5 fps) | ||
| Multipoint support | ● 4-way embedded SIP/H.323 conferencing capability with MultiSite option | |
| MultiSite features (embedded multipoint) (optional upgrade) | ● Adaptive SIP/H.323 MultiSite: | |
| ◦ 3-way resolution up to 1080p30 + content up to 4Kp5 | ||
| ◦ 4-way resolution up to 720p30 + content up to 4Kp5 | ||
| ● Full individual audio and video transcoding | ||
| ● H.323/SIP/VoIP in the same conference | ||
| ● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5 | ||
| ● Best impression (automatic continuous presence layouts) | ||
| ● Encryption and dual stream from any site | ||
| Protocols | ● H.323 | |
| ● SIP | ||
| ● Cisco Webex | ||
| Embedded encryption | ● H.323 and SIP point-to-point | |
| ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) | ||
| ● Automatic key generation and exchange | ||
| IP network features | ● DNS lookup for service configuration | |
| ● Differentiated services (Quality of Service [QoS]) | ||
| ● IP-adaptive bandwidth management (including flow control) | ||
| ● Automatic gatekeeper discovery | ||
| ● Dynamic playout and lip-sync buffering | ||
| ● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 | ||
| ● RFC 4733 DTMF tones in SIP | ||
| ● Date and time support using Network Time Protocol (NTP) | ||
| ● Packet loss-based downspeeding | ||
| ● Uniform Resource Identifier (URI) dialing | ||
| ● Dynamic Host Configuration Protocol (DHCP) | ||
| ● 802.1X network authentication | ||
| ● 802.1Q virtual LAN | ||
| ● 802.1p (QoS and Class of Service [CoS]) | ||
| ● ClearPath | ||
| Call control | ● Cisco Unified Communications Manager (CUCM) | |
| ◦ Native registration with CUCM | ||
| ◦ Requires CUCM Version 10.5.2 or later with device pack for Room 55 | ||
| ● Cisco Expressway | ||
| ◦ Native registration with Expressway | ||
| ● Cisco Webex | ||
| ● Third-party H.323 Gatekeepers and standards-based SIP proxies | ||
| IPv6 network support | ● Single call stack support for both H.323 and SIP | |
| ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ | ||
| ● Support for both static and automatic IP configuration (stateless address auto-configuration) | ||
| Security features | ● Management using HTTPS and SSH | |
| ● IP administration password | ||
| ● Menu administration password | ||
| ● Disable IP services | ||
| ● Network settings protection | ||
| Certificate management | ● Certificate Authority Proxy Function (CAPF) support for additional security | |
| ● Manufacturer-Installed Certificates (MIC) | ||
| ● Locally Significant Certificates (LSC) | ||
| ● X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported | ||
| Other interfaces | ● USB 2.0 port type A, USB 2.0 port type B, mUSB, factory reset pinhole | |
| Power | ● Autosensing power supply | |
| ● 100-240 VAC, 1.8-0.8A, 50/60 Hz | ||
| ● Rated: 142W maximum | ||
| ● Power consumption: 142W at maximum standardized configuration | ||
| ● Standby power consumption: 40W | ||
| Operating temperature and humidity | ● 0°C to 40°C (32°F to 104°F) ambient temperature | |
| ● 10% to 90% Relative Humidity (RH) | ||
| Storage and transport temperature | ● -20°C to 60°C (-4°F to 140°F) at RH 10% to 90% (noncondensing) | |
| Physical dimensions (H x W x D) | Cisco Webex Room 55 with: | |
| ● Floor stand: 62.7 x 49 x 30.5 in (1593 x 1245 x 774mm) | ||
| ● Wall mount: 32.8 x 49.0 x 5.1 in (832 x 1245 x 130mm) | ||
| ● Wheel base: 62.7 x 49.0 x 30.5 in (1651 x 1245 x 774mm) | ||
| Weight | Cisco Webex Room 55 with (all weight without packaging): | |
| ● Floor stand: 83.8 lb (38kg) | ||
| ● Wall mount: 68.3 lb (31kg) | ||
| ● Wheel base: 85.1 lb (38.6kg) | ||
| ● Main unit only: 66.1 lb (30kg) | ||
| Physical dimensions and weight of packaging (H x W x D) | Cisco Webex Room 55 package size with: | |
| ● Floor stand: 42.5 x 54.3 x 17.3 in (1080 x 1380 x 440mm) | ||
| ● Wall mount: 46.9 x 53.9 x 17.3 in (1190 x 1370 x 440mm) | ||
| ● Wheel base: 42.5 x 54.3 x 17.3 in (1080 x 1380 x 440mm) | ||
| Cisco Webex Room 55 shipping weight with: | ||
| ● Floor stand: 110 lb (50kg) | ||
| ● Wall mount: 88 lb (40kg) | ||
| ● Wheel base: 110 lb (50kg) | ||
| Camera overview | ● 5K UltraHD camera | |
| ● Supports up to 60 fps (max 30 fps with speaker tracking and best overview enabled) | ||
| ● 15.1 MP image sensor (5184 x 2916 pixels) | ||
| ● 1/1.7 CMOS | ||
| ● 3x zoom | ||
| ● f/2.0 aperture | ||
| ● 83° horizontal field of view/51.5° vertical field of view | ||
| ● Auto-framing (audio + face detect) | ||
| ● Autofocus, brightness, and white balance | ||
| ● Focus distance 1m to infinity | ||
