Mã sản phẩm	CS-KITP60-K9
Software compatibility	Cisco Collaboration Endpoint Software Version 9.1.5 or later, or Cisco Spark Room OS

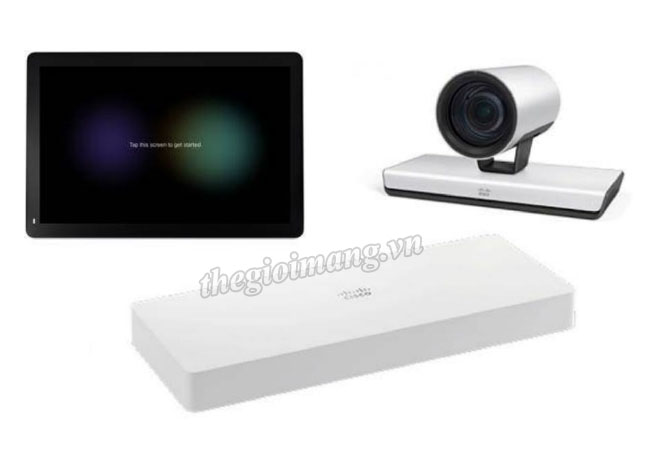

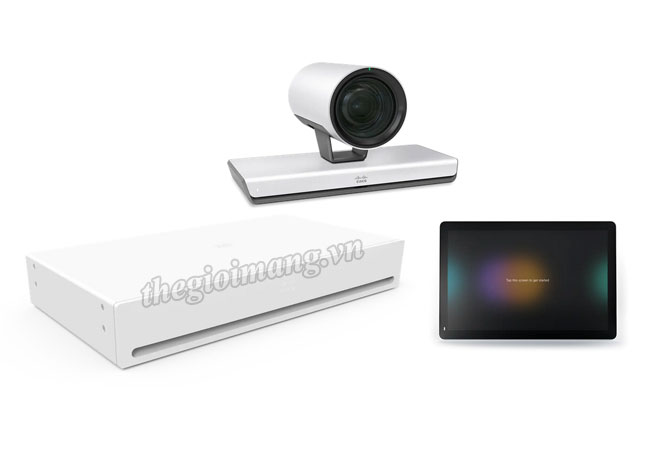

Default components in Cisco Spark Room Kit Plus Precision 60	Cisco Spark Codec Plus
	Cisco TelePresence Precision 60 Camera
	Cisco TelePresence Touch 10
Optional hardware components	Cisco TelePresence Table Microphone 20, wall mount for Codec Plus, cables
Bandwidth	Up to 6 Mbps point-to-point
Minimum bandwidth for resolution/frame rate	H.264: 720p30 from 768 kbps, 720p60 from 1152 kbps, 1080p30 from 1472 kbps, 1080p60 from 2560 kbps
Firewall traversal	Cisco Expressway™ technology
Firewall traversal	H.460.18, H.460.19 firewall traversal
Video standards	H.264, H.265
Video inputs	One HDMI input supports formats up to maximum 1080p60
	Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
	Consumer Electronics Control (CEC) 2.0
Video outputs	Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
	Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p)
	CEC 2.0
Audio standards	G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features	High-quality 20-kHz audio
	Subwoofer line out
	Prepared for inductive loop (line out)
	Automatic Gain Control (AGC)
	Automatic noise reduction
	Active lip synchronization
Audio inputs	Three microphones, 4-pin mini-jack
Audio inputs	Two audio in from HDMI
Audio outputs (external)	1 line out mini-jack (stereo) (Codec Plus)
	1 RCA output for subwoofer
	2 HDMI outputs
	HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers
Dual stream	H.239 (H.323) dual stream
	Binary Floor Control Protocol (BFCP) (Session Initiation Protocol [SIP]) dual stream
	Supports resolutions up to 3840 x 2160p5 (4Kp5) and 1080p30
Wireless sharing	Cisco Spark client (up to 3840 x 2160p5)
Wireless sharing	Cisco Intelligent Proximity client (up to 1920 x 1080p5)
Multipoint support	4-way embedded SIP/H.323 conferencing capability with MultiSite option
MultiSite features	Adaptive SIP/H.323 MultiSite
	3-way resolution up to 1080p30 + content up to 4Kp5
	4-way resolution up to 720p30 + content up to 4Kp5
	Full individual audio and video transcoding
	H.323/SIP/VoIP in the same conference
	Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
	Best Impression (automatic continuous presence layouts)
	Encryption and dual stream from any site
Protocols	H.323
	SIP
	Cisco Spark
Embedded encryption	H.323 and SIP point-to-point
	Standards based: H.235 v3 and Advanced Encryption Standard (AES)
	Automatic key generation and exchange
IP network features	DNS lookup for service configuration
	Differentiated services (DiffServ) (Quality of Service [QoS])
	IP-adaptive bandwidth management (including flow control)
	Automatic gatekeeper discovery
	Dynamic playout and lip-sync buffering
	H.245 Dual-Tone Multifrequency (DTMF) tones in H.323
	RFC 4733 DTMF tones in SIP
	Date and time support using Network Time Protocol (NTP)
	Media adaption and resilience
	Uniform Resource Identifier (URI) dialing
	Dynamic Host Configuration Protocol (DHCP)
	802.1X network authentication
	802.1Q Virtual LAN
	802.1p (QoS and Class of Service [CoS])
IPv6 network support	Single call stack support for both H.323 and SIP
	Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, HTTPS, DNS, DiffServ
	Support for both static and automatic IP configuration (stateless address auto configuration)
Security features	Management using HTTPS and SSH
	IP administration password
	Menu administration password
	Disable IP services
	Network settings protection
Network interfaces codec medium	One Ethernet (RJ-45) 10/100/1000 for LAN
	One Ethernet (RJ-45) 10/100/1000 for direct pairing with camera
	One Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE) for direct pairing with Touch 10
	Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz for LAN. 2x2 MIMO
	Bluetooth 4.0 Low Energy (LE)
Other interfaces	USB 2.0 port, uUSB, factory reset pinhole
Power supplies	100 to 240VAC, 50/60 Hz, 12VDC input
Power supplies	Average 20W, peak 70W
Operating temperature and humidity	0°C to 35°C (32°F to 95°F) ambient temperature
Operating temperature and humidity	10% to 90% Relative Humidity (RH)
Storage and transport temperature	-20°C to 60°C (-4°F to 140°F) at 10% to 90% RH (noncondensing)
