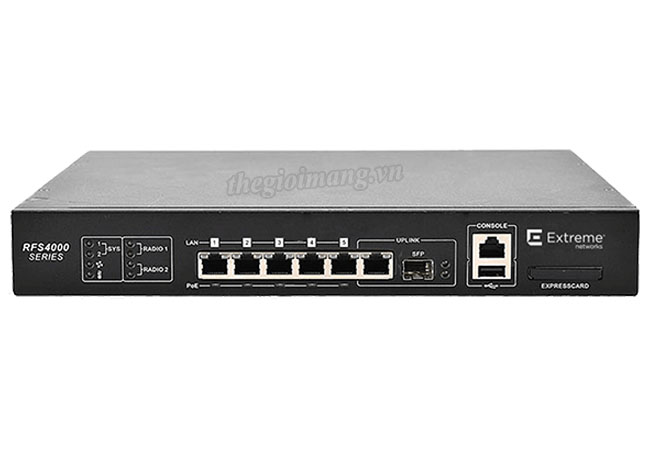

Thiết bị Wireless Controller Extreme WiNG RFS 4000
|
Product Name |
WiNG RFS 4000 |
| Supports | 144 Access Points |
| 144 RF Domains | |
| 24 Wireless LANS | |
| Physical Characteristics | |
| Form Factor | 1U Rack Mount Tray available |
| Dimensions | 1.75 in. H x 12 in. W x 10 in. D |
| 44.45 mm H x 304.8 mm W x 254.0 mm D | |
| Weight | RFS 4010: 4.75 lbs./2.15 kg |
| Antenna facade: 1.45lb | |
| Physical Interfaces | 1x Uplink Port -10/100/1000 Cu/Gigabit SFP interface |
| 5x 10/100/1000 Cu Ethernet Ports, 802.3af and, 802.3at Draft | |
| 1x USB 2.0 Host | |
| 1x ExpressCard™ Slot | |
| 1x Serial Port (RJ45 style) | |
| MTBF | >65,000 Hours |
| User Environment | |
| Operating Temperature | 32° F to 104° F /0° C to 40° C |
| Storage Temperature | -40° F to 158° F/-40° C to 70° C |
| Operating Humidity | 5% to 85% (w/o condensation) |
| Storage Humidity | 5% to 85% (w/o condensation) |
| Heat Dissipation | 95 BTU/hr |
| Max Operating Altitude | 3000m |
| Management | |
| AC input voltage | 100-240 VAC 50/60Hz |
| Operating Voltage | 44 to 57 VDC |
| Operating Current | 2.5A(max) @48 VDC or 2.2A(max) @ 54 VDC |
| Max Power Consumption | 120W |
Thông tin License cho WiNG RFS 4000
| Part numbers | Descriptions |
| RFS-4000-6ADP-LIC | 6 AP adoption license |
| RFS-4000-12ADP-LIC | 12 AP adoption license |
| RFS-4000-24ADP-LIC | 24 AP adoption license |
| RFS-4000-48ADP-LIC | 48 AP adoption license |
Wireless Controller Extreme WiNG RFS 4000
A Converged Platform of Features and Functionality:
- The RFS 4000 is a fully integrated wireless controller appliance, wired switch with 5 POE ports rolled into one, with IPSEC VPN/firewall/WIPS security, RADIUS & DHCP server, 3G failover, and more.
WiNG Architecture:
- Improve business process flow with one platform for wireless voice, video, data and multiple RF technologies — Wi-Fi and 4G technologies in the future; rich enterprise-class functionality includes seamless roaming across L2/L3 deployments, resilient failover capabilities, comprehensive security, toll-quality voice and other valueadded services.
Guest Access (Hotspot): Provides guest access for wired* and wireless clients. built-in captive portal, customizable login/ welcome pages, URL redirection for user login, usage-based charging, dynamic VLAN assignment of clients, DNS white list, GRE tunneling of traffic to central site*, API support for interoperability with custom web portals
3G Connectivity for Failover or Rapid Deployment: Support for 3G wireless WAN backhaul with various off the shelf 3G PCI Express cards traffic when the primary WAN Link fails
