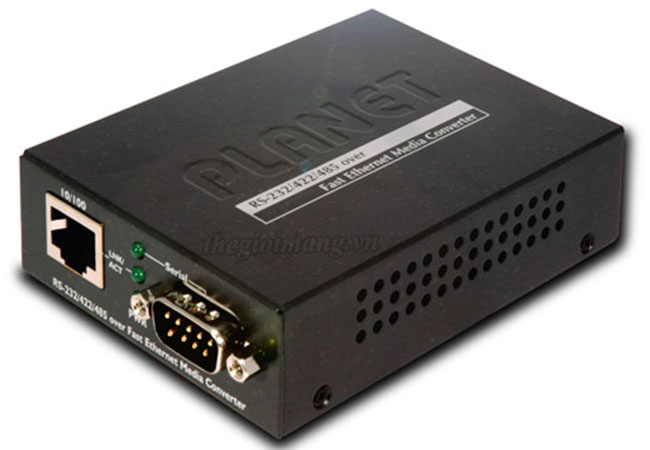

Thiết bị Converter Planet ICS-101
| Product | ICS-101 |
|---|---|
| Serial Port | |
| Interface | RS-232 / RS-422 / RS-485 |
| Connector | 3-in-1 DB9 |
| Baud Rate (Data Rate) | 300bps to 921600Kbps |
| Character Bits | 5,6,7,8 |
| Stop Bit | 1, 1.5/2 |
| Flow Control | H/W, None |
| Parity Type | Odd, Even, None, Space, Mark |
| Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx- RS-485(2-wire): Data+, Data- RS-485(4-wire): Tx+, Tx-, Rx+, Rx- |
| Fast Ethernet Port | |
| Standard | 10/100Base-TX |
| Connector | RJ-45 |
| Distance | 100m |
| Cable | Twisted-pair |
| Protection | Built-in 1.5KV magnetic isolation |
| Hardware | |
| LED Indicators | System: Power TP Port: Link / Active Serial Port: Serial port mode, RS-232, RS-422 or RS-485 |
| Management | Web Management PLANET Smart Discovery Utility |
| Virtual COM Utility Platform Supports | Windows Base Only:
|
| Operation Mode | TCP Server TCP Client UDP Client Virtual COM Telnet Sever Pair Connection-Local(Master) Pair Connection-Pemote(Slave) |
| Dimensions (W x D x H) | 97 x 70 x 26 mm |
| Weight | 200g |
| Power Supply | External Power Adaptor 5V DC / 2A max. |
| Mechanical | Metal |
| Environment | Operating Temperature: 0~50 degrees C Storage Temperature: -10~70 degrees C Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
| Standards | • IEEE 802.3 10Base-T, • IEEE 802.3u 100Base-TX • EIA / TIA RS-232 / 422 / 485 |
| Compatible Media Converter Chassis | MC-700 / MC-1500/ MC-1500R |
| Note | Reset Button on the rear panel for reset to factory default |
