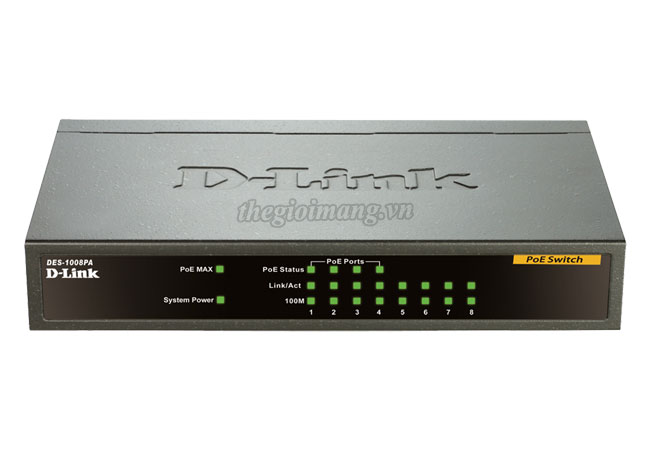

Thiết bị chuyển mạch Switch Dlink DES-1008PA
| Model | DES‑1008PA |
| General | |
| Standards | • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x flow control • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
| Switching Fabric | • 1.6 Gbps switching fabric |
| Data Transfer Rates | • Ethernet • 10 Mbps (half duplex) • 20 Mbps (full duplex) • Fast Ethernet • 100 Mbps (half duplex) • 200 Mbps (full duplex) |
| Media Interface Exchange | • Auto MDI/MDIX adjustment for all ports |
| Network Cables | • 10BASE-T: • UTP CAT 3/4/5/5e (100 m max.) • EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX • UTP CAT 5/5e (100 m max.) • EIA/TIA-568 100-ohm STP (100 m max.) |
| LED Indicators | • Per unit: Power/ PoE Max • Per port: Activity/ Link and Speed • Per port: Power / Status |
| Transmission Method | • Store-and-forward |
| MAC Address Table | • 1K entries per device |
| Packet Filtering/Forwarding Rates | • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port |
| RAM Buffer | • 96 KB per device |
| Physical | |
| Dimensions | • 6.8” x 3.9” x 1.1” (172mm x 98mm x 27.9mm) |
| DC Input | • External 48V/1.25A power adapter |
| Power Consumption | • 63 Watts maximum • PoE up to 15.4 Watts per port (ports 1-4 only) |
| Temperature | • Operating: 0 to 40 ˚C (32 to 104 ˚F) • Storage: -10 to 70 ˚C (14 to 158 ˚F) |
| Humidity | • Operating: 5% to 90% RH non-condensing |
DES-1008PA : 8-Port Fast Ethernet PoE Desktop Switch
Data sheet D-Link DES-1008PA 8-Port Fast Ethernet PoE Desktop Switch
Switch Dlink DES-1210-08P : ● 8 10/100BASE-TX PoE ● Switching...
