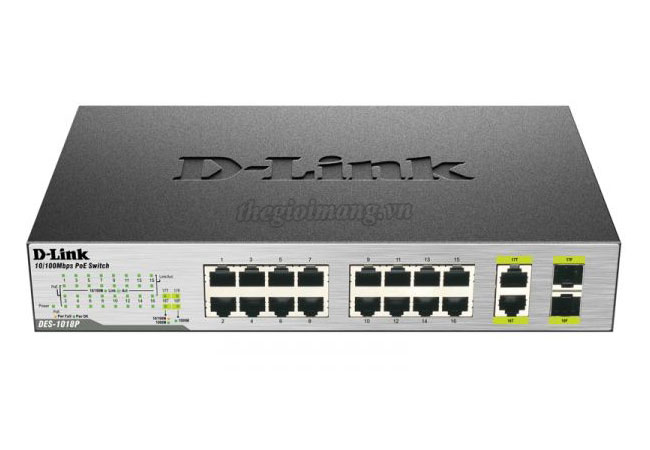

Thiết bị chuyển mạch Switch Dlink DES-1018P
| Model | DES-1018P |
| General | |
| Device Interfaces | • 8 10 / 100 Mbps PoE, 8 10 / 100 Mbps ports • 2 10 / 100 / 1000BASE-T / SFP combo ports |
| Standards | • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3z • IEEE 802.3x Flow Control • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Switching Fabric | • 7.2 Gbps |
| 64 Byte Max. Forwarding Rate | • 5.36 Mpps |
| Transmission Method | • Store-and-forward |
| MAC Address Table | • 8k |
| Packet Buffer | • 384 KB |
| Media Interface Exchange | • Auto MDI/MDIX adjustment for all ports |
| LED Indicators | • Per unit: Power • Per port: Activity / Link and Speed • Per PoE port: Power fail, Power OK |
| Fan | • 1 fan |
| PoE Standard | • IEEE 802.3af |
| PoE Ports | • Ports 1~8 up to 15.4 W per port |
| PoE Power Budget | • 80 watts |
| Surge Protection | • Ports 1~8 up to 2 kV |
| Physical | |
| Dimensions | • 11” x 8.3” x 1.7” (280 mm x 210 mm x 44 mm) |
| Weight | • 1.78 kg (3.92 lbs) |
| Power | • Internal AC input: 100 ~ 240 VAC, 50~60 Hz |
| Power Consumption | • Maximum Power Consumption: 102.6 watts (PoE on), 14.3 watts (PoE off) • Standby Power Consumption: 7.1 W / 100 V , 8.3 W / 240 V |
| Temperature | • Operating: 0 to 40 ˚C (32 to 104 ˚F) • Storage: -40 to 70 ˚C (-40 to 158 ˚F) |
| Humidity | • Operating: 0% to 95% RH non-condensing • Storage: 0% to 95% RH non-condensing |
| MTBF | • 395,864 hours |
| Heat Dissipation | • 349.9 BTU/h |
| Certifications | • FCC Class A • CE • CCC • RoHS • VCCI • BSMI • C-Tick |
| Safety | • CB • cUL • LVD • CCC • BSMI |
DES-1018P : 8 Ports 10 / 100 Mbps PoE + 8 Ports 10 / 100 Mbps + 2 10 / 100 / 1000BASE-T / SFP Combo Ports Unmanaged Switch
Data sheet D-Link DES-1018P/DES-1018MP 18-Port Unmanaged Desktop PoE Switch
