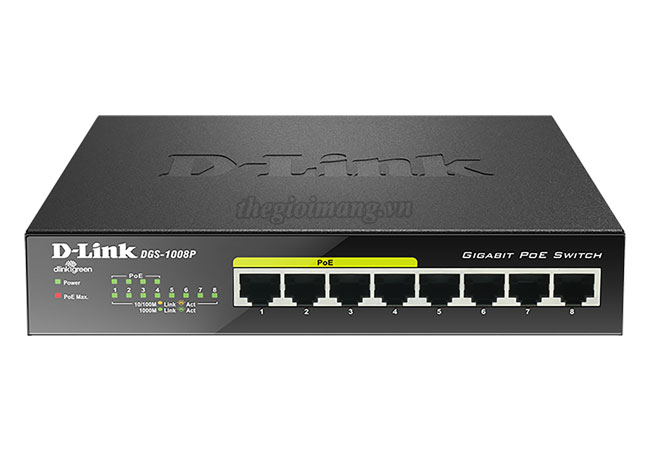

Thiết bị mạng Switch Dlink DGS‑1008P
Model | DGS‑1008P |
General | |
Standards | • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x flow control • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) |
Switching Capacity | • 16 Gbps switching fabric |
Data Transfer Rates | • Ethernet • 10 Mbps (half duplex) • 20 Mbps (full duplex) • Fast Ethernet • 100 Mbps (half duplex) • 200 Mbps (full duplex) • Gigabit Ethernet • 2000 Mbps (full duplex) |
Media Interface Exchange | • Auto MDI/MDI-X adjustment for all ports |
Network Cables | • 10BASE-T: • UTP CAT 3/4/5/5e (100 m max.) • EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX • UTP CAT 5/5e (100 m max.) • EIA/TIA-568 100-ohm STP (100 m max.) • 1000BASE-T • UTP CAT 5/5e(100 m max.) • EIA/TIA-568 100-ohm STP(100 m max.) |
LED Indicators | • Per unit: Power / PoE Max • Per port: Activity / Link and Speed • Per port: Power / Status |
Transmission Method | • Store-and-forward |
MAC Address Table | • 8K entries per device |
Packet Filtering / Forwarding Rates | • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port |
RAM Buffer | • 256 KB per device |
PoE Capable Ports | • 802.3af/802.3at PoE up to 30 Watts per port (ports 1-4 only) |
PoE Power Budget | • 68 W |
Physical | |
Dimensions | • 5.5” x 3.0” x 1.06” (190 mm x 120 mm x 38 mm) |
DC Input | • External 53.5 V / 1.5 A power adapter |
Temperature | • Operating: 0 to 40 ˚C (32 to 104 ˚F) • Storage: -40 to 70 ˚C (-40 to 158 ˚F) |
Humidity | • Operating: 0% to 95% RH non-condensing |
