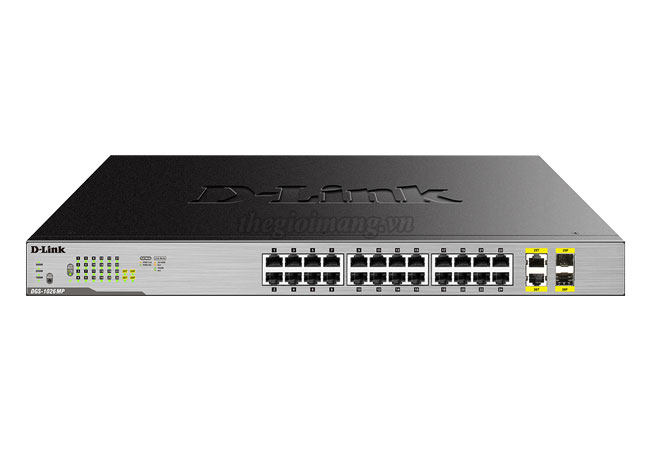

Thiết bị mạng Switch Dlink DGS-1026MP
| Model | DGS-1026MP |
| General | |
| Number of Ports | • 24 x 10/100/1000 Mbps ports • 2 x 10/100/1000BASE-T/SFP combo ports |
| Standards | • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • IEEE 802.3z • IEEE 802.3x Flow Control • IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Switching Capacity | • 52 Gbps switching fabric |
| 64 Byte Max. Forwarding Rate | • 38.69 Mpps |
| Media Interface Exchange | • Auto MDI/MDI-X |
| Transmission Method | • Store-and-forward |
| MAC Address Table | • 8K (8192) entries per device |
| Packet Buffer Memory | • 512 KB per device |
| PoE Standards | • IEEE 802.3at • IEEE 802.3af |
| PoE Ports | • Ports 1 to 24 |
| PoE Budget | • 370 W • Up to 30 W per port |
| Diagnostic LEDs | |
| Per Unit | • Power • PoE Power Budget |
| Per Port | • Activity/Link • Speed |
| Per PoE Port | • Power Fail • Power OK |
| Physical | |
| Fan | • 2 x Smart fans |
| Dimensions | • 440 x 250.4 x 44 mm (17.32 x 9.86 x 1.73 inch) |
| Weight | • 3.1 kg (6.83 lbs) |
| Power Input | • AC Input: 100 to 240 V AC, 50/60 Hz |
| Power Consumption | • Maximum: • 444.1 W (PoE on) • 82.1 W (PoE off) • Standby: • 240 V: 18.25 W |
| Temperature | • Operating: 0 to 50 ˚C (32 to 122 ˚F) • Storage: -40 to 70 ˚C (-40 to 158 ˚F) |
| Humidity | • Operating: 10% to 90% RH, non-condensing • Storage: 5% to 90% RH, non-condensing |
