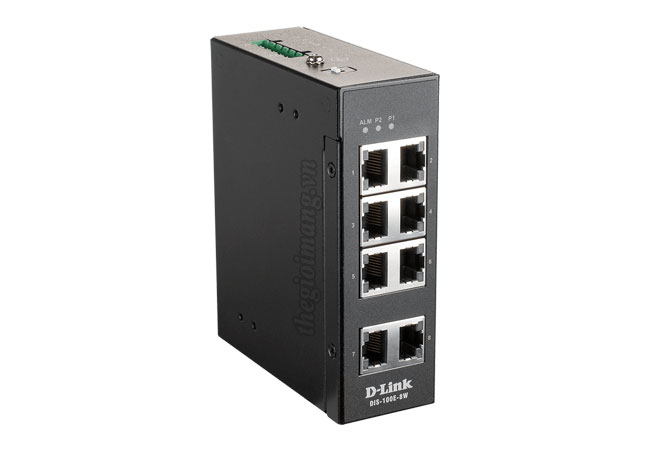

Thiết bị chuyển mạch Switch Dlink DIS-100G-8W
| Model | DIS-100G-8W |
| General | |
| Hardware Version | • A1 |
| Number of Ports | • 8 x 10/100/1000BASE-T ports |
| Port Functions | • IEEE 802.3 for Ethernet • IEEE 802.3u for Fast Ethernet • IEEE 802.3ab for Gigabit Ethernet • IEEE 802.3z for Gigabit fiber • IEEE 802.3x Flow Control • IEEE 802.3af/at Power over Ethernet (DIS-100G-5PSW) • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Media Interface Exchange | • Auto-MDI/MDIX adjustment for all twisted pair ports |
| Performance | |
| Switching Capacity | • 16 Gbps |
| Maximum Forwarding Rate | • 11.9 Mpps |
| MAC Address Table Size | • Up to 8K entries |
| Transmission Method | • Store-and-forward |
| Jumbo Frame | • 9 KB |
| Advanced Features | • Broadcast/Multicast/Unicast Storm Control • IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port |
| Physical | |
| Diagnostic LEDs | • ALM • P1/P2 • Link/Activity/Speed |
| Power Input | • 12 to 58 V DC terminal block dual input |
| Power Consumptions | • Maximum: 7.8 W |
| Alarm Relay | • 1 A at 24 V |
| Heat Dissipation | • 26.61 BTU/hr |
| Weight | • 0.44 kg (0.98 lbs) |
| Dimensions | • 117.8 x 39 x 96.9 mm (4.64 x 1.54 x 3.81 in) |
| EMS | • EN 61000-4-2 ESD Level 3 • EN 61000-4-3 RS Level 3 • EN 61000-4-4 EFT Level 3 • EN 61000-4-5 Surge Level 3 • EN 61000-4-6 CS Level 3 • EN 61000-4-8 |
| Environmental Tests | • IEC 60068-2-27 Shock • IEC 60068-2-32 Freefall • IEC 60068-2-6 Vibration |
| Storage Temperature | • -40 to 85 °C (-40 to 185 °F) |
| Operating Humidity | • 5% to 95% RH, non-condensing |
| Storage Humidity | • 5% to 95% RH, non-condensing |
| Material | • IP30-rated metal casing |
| Installation | • DIN rail/wall-mountable |
| MTBF | • >25 years |
| Certifications | • UL/CE/FCC • NEMA-TS22 • EN50121-4 compliant • UL C1D2 compliant (DIS-100G-5PSW) |
| Safety | • UL60950-1 (DIS-100G-5W/5SW) • UL61010-1, UL61010-2-201, UL C1D2 (DIS-100G-5PSW) |
| EMI | • 47 CFR FCC Part 15 Subpart B (Class A) • ICES-003 Issue 6 (Class A) |
| EMC | • EN61000-6-2 • EN61000-6-4 |
| EMS | • EN 61000-4-2 ESD Level 3 • EN 61000-4-3 RS Level 3 • EN 61000-4-4 EFT Level 3 • EN 61000-4-5 Surge Level 3 • EN 61000-4-6 CS Level 3 • EN 61000-4-8 |
DIS-100-8W : 8-port Gigabit Unmanaged Industrial Switch
Data sheet D-Link DIS-100G Series Gigabit Industrial Unmanaged Switches
