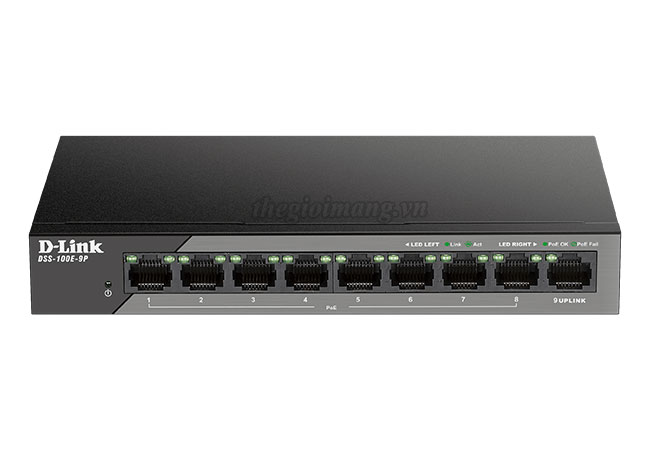

D-Link DSS-100E-9P 9 Port Unmanaged PoE Surveillance Switch :
Thiết bị chuyển mạch Switch D-Link DSS-100E-9P
| Model | DSS-100E-9P |
| General | |
| Size | • 11” standard rack width, 1U height |
| Interfaces | • 8 x 10/100Base-T PoE ports • 1 x 1000Base-T port |
| Standards | • IEEE 802.3 100BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE802.3ab • IEEE 802.3z • IEEE 802.3x Flow Control |
| Media Interface Exchange | • Auto or configurable MDI/MDIX |
| LED | • Per unit: Power • Per port: Activity / Link and Speed • Per PoE port: Power fail, Power OK |
| Functionality | |
| Switching Capacity | • 3.6 Gbps |
| Forwarding Rate | • 2.69 Mpps |
| Packet Buffer | • 1.0 Mbits |
| Transmission Method | • Store-and-Forward |
| MAC Address Table Size | • 2K |
| Static MAC Addresses | • Up to 512 static MAC entries |
| Maximum Forwarding Rate | • 104.16 Mpps |
| PoE Standard | • IEEE802.3at, IEEE802.3af |
| PoE Power Budget | • 92 W |
| Surge Protection | • Up to 6 kV |
| Physical | |
| Power Input | • 100 - 240 VAC |
| Maximum Power Consumption | • PoE ON: - AC: 113.4 W - DC: 93.5 W • PoE OFF: - AC: 4.57 W - DC: 2.49 W |
| Standby Power Consumption | • 100V: 3.12 W • 240V: 3.50 W |
| Acoustics | • 0 dB(A) |
| Heat Dissipation | • Power On: 10.7 BTU/h • Maximum: 34.1 BTU/h |
| MTBF | • 52,308 hours |
| Operating Temperature | • 0 - 40 °C |
| Storage Temperature | • -40 - 70°C |
| Operating Humidity | • 10% - 95% RH |
| Storage Humidity | • 5% - 95% RH |
