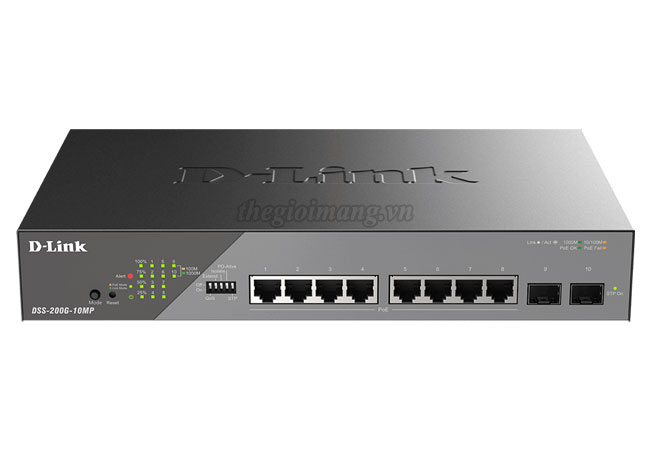

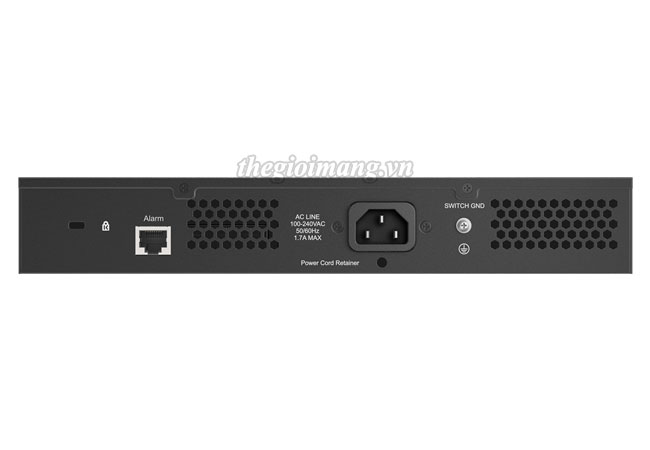

D-Link DSS-200G-10MP PoE Gigabit Ethernet Surveillance Switch :
Thiết bị chuyển mạch Switch D-Link DSS-200G-10MP
| Model | DSS-200G-10MP |
| General | |
| Size | • 11-inch desktop size • 1U height |
| Number of Ports | • 8 x 10/100/1000 Mbps PoE • 2 x SFP 1000 Mbps |
| Port Functions | • IEEE 802.3 compliant • IEEE 802.3u compliant • IEEE 802.3ab compliant • IEEE 802.3af/802.3at compliant • IEEE 802.3bt (DSS-200G-10MPP/26MPP only) • IEEE 802.3x Flow Control supports full-duplex mode • Supports manual/auto MDI/MDIX configuration • Auto-negotiation • Supports half/full-duplex operation • IEEE 802.3az compliant |
| Performance | |
| Switching Capacity | • 20 Gbps |
| Maximum Forwarding Rate | • 14.88 Mpps |
| MAC Address Table Size | • 8K Entries |
| Packet Buffer | • 4.1 MBits |
| CPU Memory | • DDR3 128 MB |
| Flash Memory | • 32 MB |
| LEDs | |
| Power (per device) | ✓ |
| Link/Active/Speed (per port) | ✓ |
| Alarm | ✓ |
| PoE Budget Usage | • 25%, 50%, 75%, 100% (LED * 4) |
| PoE | |
| PoE Standard | • IEEE 802.3af • IEEE 802.3at |
| PoE Capable Ports | • Ports 1 to 8 |
| PoE Power Budget | • 130 W • 30 W max. per PoE port |
| Power Consumption | |
| Standby Mode | • 10.4 W |
| Maximum Power Consumption | • 160.2 W (PoE on) • 9.63 W (PoE off) |
| Physical | |
| Power Input | • 100 to 240 V AC • 50 to 60 Hz internal power supply |
| MTBF | • 345,045 hours |
| Acoustics | • 0 dB(A) |
| Heat Dissipation | • 103.05 BTU/hr |
| Weight | • 1.55 kg |
| Dimensions | • 280 x 180 x 44 mm |
| Fans | • N/A (Fanless) |
| Operating Temperature | • -5 to 50° C |
| Storage Temperature | • -40 to 70 °C |
| Operating Humidity | • 0% to 95% non-condensing |
| Storage Humidity | • 0% to 95% non-condensing |
| EMI | • FCC/IC, CE, BSMI |
| Safety | • cUL, UL, LVD, CB, BSMI |
| Working Modes (DIP Switch) | |
| QoS (Port Priority) | • Ports 1-8 |
| Extend (Up to 250M @ 10 Mbps) | • DIP: Ports 1-4 • Web GUI: Ports 1-4 |
| Isolate (Traffic Isolation per Port) | • Ports 1-8 |
| PD-Alive | • Ports 1-8 |
| STP | • Ports 7-8 |
