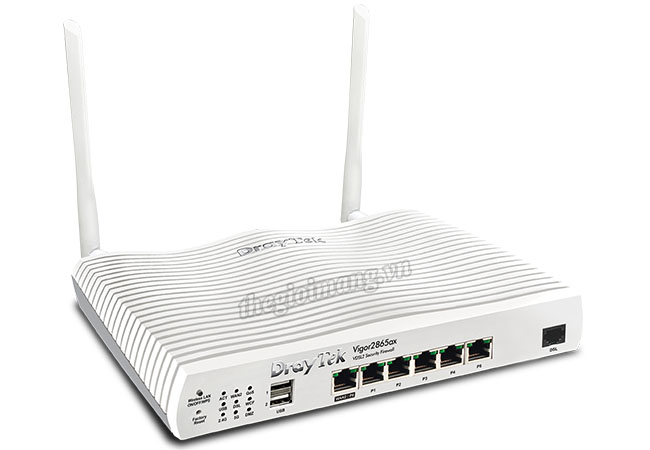

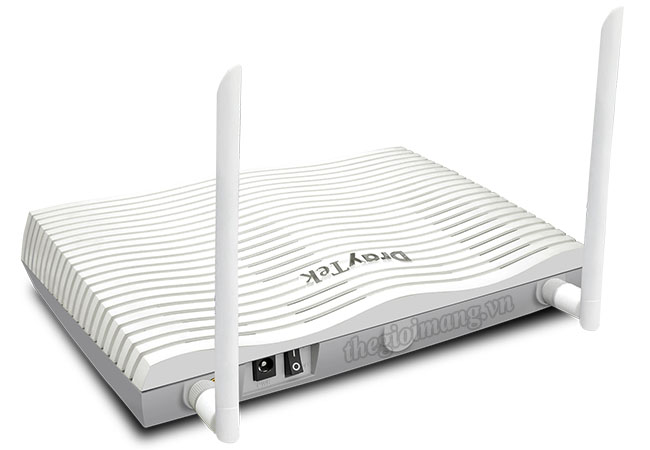

Thiết bị định tuyến DrayTek Vigor2865ax - Dual-WAN VPN Router WiFi-6 chuẩn 802.11ax 2x2 MU-MIMO OFDMA ● 1 cổng 1x RJ-11 Fixed WAN ● 1 cổng GbE RJ-45 chuyển đổi WAN/LAN ● 5 cổng GbE RJ-45 Fixed LAN ● WLAN: 574Mbps @2.4GHz & 2402Mbps @5GHz ● NAT Throughput lên đến 1.3Gbps, IPsec VPN: 300Mbps.
Thiết bị cân bằng tải Draytek Vigor2865ax
| Product | Vigor2865ax |
|---|---|
| Interface | |
| Fixed WAN Port | 1x RJ-11 for VDSL2 35b or ADSL2/2+ |
| WAN/LAN Switchable Port | 1x 10/100/1000Base-TX RJ-45 |
| Fixed LAN Port | 5x 10/100/1000Base-TX RJ-45 |
| USB Port | 2x USB 2.0 |
| Wi-Fi Antenna | 2x External Dipole Gain: 3.5 dBi for 5GHz, 2.3 dBi for 2.4GHz |
| 2.4G WLAN | 802.11ax 2x2 MIMO 574Mbps |
| 5G WLAN | 802.11ax 2x2 MU-MIMO 2402Mbps |
| Performance | |
| NAT Throughput | 800 Mbps |
| NAT Throughput w/ Hardware Acceleration | 940 Mbps (Ethernet WAN) 1.3 Gbps (Ethernet WAN + DSL WAN) |
| IPsec VPN Performance | 3000 Mbps (AES 256 bits) |
| SSL VPN Performance | 130 Mbps |
| Max. Number of NAT Sessions | 60.000 |
| Max. Concurrent VPN Tunnels | 32 |
| Max. Concurrent OpenVPN + SSL VPN | 16 |
| Physical | |
| Power Supply | DC 12V @ 2A |
| Max. Power Consumption | 24 watts |
| Dimension | 241mm x 166mm x 46mm |
| Weight | 620g |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Data sheet DrayTek Vigor2865ax | |
| VDSL/ADSL | |
| VDSL Standards | ITU-T G.993.2 Annex A/B/M/Q (up to Profile 35b) T1.424 ITU-T G.993.5 (Vectoring) |
| VDSL2 Profile | 8a, 8b, 8c, 8d, 12a, 12b, 17a, 35b (not G.fast) |
| ADSL Standards | ITU-T G.992.1 (G.dmt), ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.5 (ADSL2+) (G.adslplus), T1.413 Issue 2 |
| Other Standards | ITU-T G.994.1 (G.hs), ITU-T G.997.1 (G.ploam), ITU-T G.998.4 (Retransmission) |
| Band Plan | 998, 997 |
| Internet Connection | |
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| Wireless WAN | 2 |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| Internet Connection Features | 802.1p/q Multi-VLAN Tagging Multi-VLAN/PVC 3G/4G/LTE WAN with USB modem WAN Data Budge Dynamic DNS DrayDDNS |
| LAN Management | |
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| LAN Management Features | LAN IP Alias Wired 802.1x Authentication Port Mirroring Local DNS Server Conditional DNS Forwarding Hotspot Web Portal |
| Networking | |
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| SMB File Sharing | Requires external storage |
| Networking Features | High Availability DNS Security (DNSSEC) Local RADIUS server |
| VPN | |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| VPN Features | LAN-to-LAN Teleworker-to-LAN Single-Armed VPN NAT-Traversal (NAT-T) DrayTek VPN Matcher |
| Firewall & Content Filtering | |
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Categorysubscription required |
| Firewall & Content Filtering Features | IP-based Firewall Policy DoS Attack Defense Spoofing Defense |
| Bandwidth Management | |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| Bandwidth Management Features | IP-based Bandwidth Limit IP-based Session Limit VoIP Prioritization |
| Wireless LAN | |
| Number of SSID | 4 per radio band |
| Security Mode | OWE, WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1X |
| WPS | PIN, PBC |
| WDS | Repeater (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, WLAN Scheduling |
| Wireless LAN Features | AirTime Fairness Band Steering MU-MIMO5GHz Only WMM |
| Management | |
| Local Service | HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069 |
| Config File Compatibility | Vigor2862 |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| Access Control | Access List, Brute Force Protection |
| Notification Alert | SMS, E-mail |
| SNMP | v1, v2c, v3 |
| Central VPN Management | 8 VPN |
| Central AP Management | 20 VigorAP |
| Mesh Network | 7 VigorAP |
| Central Switch Management | 10 VigorSwitch |
| Management Features | Config File Export & Import 2-Level Administration Privilege Syslog Managed by VigorACS |
