Trang chủ > Sản phẩm > Sản phẩm EOS & EOL > Thiết bị EOS & EOL > FortiAP U421EV (FAP-U421EV)

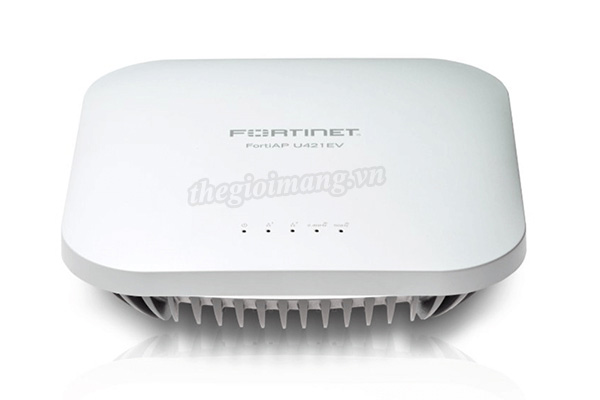

FortiAP U421EV (FAP-U421EV)

FortiAP-U421EV Universal Indoor wireless AP - 2 x GE RJ45 port, 802.11 a/b/g/n/ac WAVE 2, dual concurrent dual band (2.4GHz/5GHz), 4x4 MIMO, Ceiling/wall mount kit included, For Gigabit PoE injector order: GPI-115(limited features) or GPI-130. For AC power adapter order: SP-FAP400-PA
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Hết hàng

Thiết bị mạng không dây FortiAP U421EV

Hardware Type Indoor Universal AP
Number of Radios 2
Number of Antennas 8 Internal plus 1 Bluetooth
Peak Antenna Gain 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz) 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1 2.4 GHz b/g/n 20/40 MHz (64 QAM)
Frequency of Radio 2 5 GHz a/n/ac 20/40/80/160 MHz (256 QAM) MU-MIMO 3 simultaneous devices
Maximum Data Rate Radio 1: up to 600 Mbps
Radio 2: up to 1,733 Mbps
Tx/Rx Streams 4x4 MIMO 4 spatial stream
Bluetooth Low Energy (BT/BLE) Radio Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Ethernet Ports 2x GE RJ45
USB Port 1x Type A
Serial Console Port 1 RS-232 x RJ45
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3at (2x2 @ 17 dBm with 802.3af; USB disabled)
Simultaneous SSIDs 16 (14 if background scanning enabled)
User/Device Authentication WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 28 dBm / 630 mW (4 chains combined)
5 GHz: 26 dBm / 398 mW (4 chains combined)
Physical Security Kensington Lock
IEEE Specifications 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.3at, 802.3az
Wireless Mesh Capable Yes
FortiPresence Capable Yes
Modes of Operation WLC 8.2 (min.), FortiGate, (FortiCloud – Future)
SSID Types Supported Local-Bridge, Tunnel & Mesh (when managed by FortiGate)
FortiDeploy and FortiCloud Key Yes
Per Radio Client Capacity Up to 256
LED Off Mode Yes
Advanced 802.11 Features
802.11ac MU-MIMO Wave 2 Yes
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
MIMO Power Save Yes
Short Guard Interval Yes
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic)
Wireless Monitoring Capabilities
Frequencies scanned 2.4 and 5 GHz
Background scan with client access on 2.4 and 5 GHz Yes
Full-time scan as dedicated monitor Yes
Packet sniffer mode Yes
Spectrum analyzer Yes
Length x Width x Height 8.46 x 8.46 x 2.2 inches (215 x 215 x 56 mm)
Weight 3.31 lb (1.5 kg)
Package (shipping) Weight 5.09 lb (2.31 kg)
Mounting Options Ceiling, T-Rail and Wall
Included Accessories Ceiling, T-Rail and wall mount kit (AC power adapter sold separately)
Power Supply Adapter input: 100–240V, 50/60Hz, 0.9A Maximum output: 12V DC, 3A
Power Consumption (Average / Maximum) 24.5 W max power draw in 802.3at mode and 12.5 W max power draw when supplied with 802.3af mode (operates in 2x2 mode)

FAP-U421EV: Indoor Wireless Universal AP - Dual radio (802.11 a/b/g/n and 802.11 a/b/g/n/ac Wave 2, 4x4 MU-MIMO), internal antennas, 2 x 10/100/1000 RJ45 port. Ceiling/wall mount kit included.For power order: 802.3af PoE injector GPI-115 (limited features) or 802.3at PoE injector GPI-130 or AC adapter SP-FAP400-PA.
FC-10-P0421-247-02-DD: 24x7 FortiCare Contract

Data sheet FortiAP U421EV
