FG-140E-PoE-BDL-950-12: Fortinet FortiGate-140E-PoE Hardware Plus 1 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection; Hardware: 42x GE RJ45 ports (including 2x WAN ports, 1x Mgmt port, 1x HA port, 24x RJ45 GE PoE/PoE+ ports, 14x switch ports), 2x GE SFP DMZ slots. Maximum managed FortiAPs (Total / Tunnel) 64 / 32; Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud);

Giá bán : Liên hệ để có giá tốt
Tình trạng : Hết hàng

Thông số kỹ thuật
Tài liệu liên quan

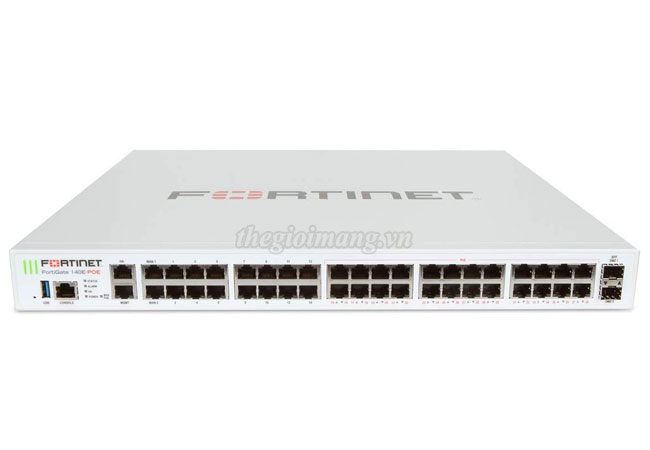

Thiết bị bảo vệ mạng Fortinet FortiGate-140E-PoE (FG-140E-PoE-BDL-950-12)

Mã sản phẩm	FG-140E-PoE
Hardware Specifications
GE RJ45 Ports	14
GE RJ45 Management/HA /DMZ Ports	1 / 1 / —
GE SFP Slots	2
GE RJ45 PoE/+ Ports	24
GE RJ45 WAN Ports	2
GE RJ45 or SFP Shared Ports	-
USB Port	1
Console Port	1
Internal Storage	-
Included Transceivers	0
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	6.6 Mpps
Concurrent Sessions (TCP)	2 Million
New Sessions/Second (TCP)	30,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)¹	4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	10,000
SSL-VPN Throughput	250 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	300
SSL Inspection Throughput (IPS, HTTP) ³	190 Mbps
Application Control Throughput (HTTP 64K)²	1 Gbps
CAPWAP Throughput (1444 byte, UDP)	1.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	24
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	1,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput ²	1.9 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput ²	500 Mbps
NGFW Throughput ^{2, 4}	360 Mbps
Threat Protection Throughput ^{2, 5}	250 Mbps
Dimensions
Height x Width x Length (inches)	1.75 x 17 x 15.5
Height x Width x Length (mm)	44.45 x 432 x 394
Form Factor	Rack Mount, 1 RU
Weight	12.4 lbs (5.6 kg)
Environment
Power Required	100–240V AC, 60–50 Hz
Maximum Current	100V / 0.4A
Total Available PoE Power Budget*	-
Power Consumption (Average / Maximum)	34.4 W / 40.0 W
Heat Dissipation	136.48 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Humidity	10–90% non-condensing
Noise Level	40.4 dBA
Compliance	FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Tùy chọn Module quang SFP cho Firewall FortiGate 140E-PoE

External redundant AC power supply	FRPS-100	External redundant AC power supply for up to 4 units: FG-100/101E, FG-300C, FG-310B, FS-348B and FS-448B. Up to 2 units: FG-200B, FG-200D, FG-200/201E, FG-240D and FG-300D, FG-400D, FG-500D, FG-600D, FHV-500D, FDD-200B, FDD-400B, FDD-600B and FDD-800B
1 GE SFP LX transceiver module	FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP RJ45 transceiver module	FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX transceiver module	FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.

Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTM Bundle (FG-201E-BDL-950-12)
- Hardware: 42x GE RJ45 ports (including 2x WAN ports, 1x Mgmt port, 1x HA port, 24x RJ45 GE PoE/PoE+ ports, 14x switch ports), 2x GE SFP DMZ slots. Maximum managed FortiAPs (Total / Tunnel) 64 / 32;
- Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)

Data sheet Fortigate 140E-PoE
