Mô tả sản phẩm

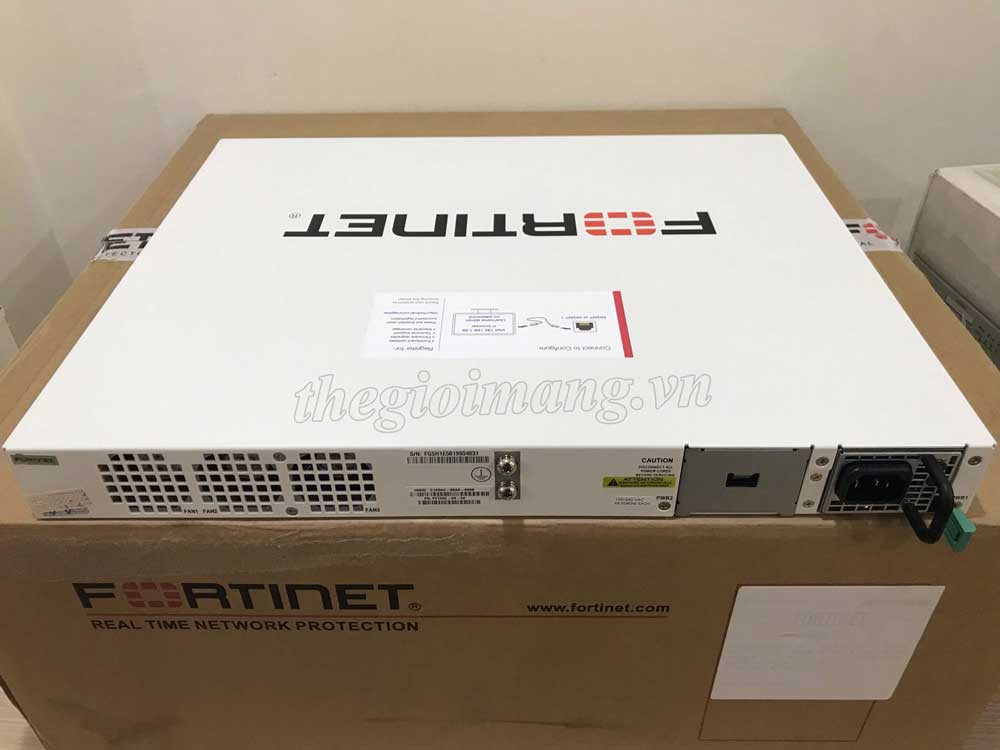

Thiết bị tường lửa Firewall Fortinet FortiGate-501E (FG-501E-BDL-950-12)

Mã sản phẩm	FG-501E-BDL-950-12
Interfaces and Modules
10 GE SFP+ Slots	2
GE RJ45 Interfaces	8
GE SFP Slots	8
GE RJ45 Management Ports	2
USB Ports	2
RJ45 Console Port	1
Local Storage	2x 240 GB SSD
Included Transceivers	2x SFP (SX 1 GE)
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	36 / 36 / 22 Gbps
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)	36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP)	2 μs
Firewall Throughput (Packet per Second)	33 Mpps
Concurrent Sessions (TCP)	8 Million
New Sessions/Second (TCP)	300,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte) ¹	20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	500
SSL Inspection Throughput (IPS, HTTP) ³	6.8 Gbps
Application Control Throughput (HTTP 64K) ²	14 Gbps
CAPWAP Throughput (1444 byte, UDP)	18 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	48
Maximum Number of FortiAPs (Total / Tunnel)	512 / 256
Maximum Number of FortiTokens	1,000
Maximum Number of Registered Endpoints	2,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput ²	11 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput ²	5.2 Gbps
NGFW Throughput ^{2, 4}	5 Gbps
Threat Protection Throughput ^{2, 5}	4.7 Gbps
Dimensions and Power
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	16.6 lbs (7.5 kg)
Form Factor	1 RU
Power Consumption (Average / Maximum)	105 W / 200 W
Power Source	100–240V 60–50Hz
Current (Maximum)	6A
Heat Dissipation	613 BTU/h
Redundant Power Supplies (Hot Swappable)	optional
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	43 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Tùy chọn Module quang SFP cho Firewall FortiGate 501E

1 GE SFP LX transceiver module	FN-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots.
1 GE SFP RJ45 transceiver module	FN-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots.
1 GE SFP SX transceiver module	FN-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Short Range	FN-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
10 GE SFP+ Transceiver Module, Long Range	FN-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
10 GE Copper SFP+ Transceiver Module, up to 30m	FN-TRAN-SFP+GC	10 GE copper SFP+ RJ45 transceiver. For FortiSwitch only, up to 30m.
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft	SP-CABLE-ADASFP+	10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots

Tùy chọn Power nguồn cho Firewall FortiGate 501E

Optional Power Supply

SP-FG300E-PS

AC power supply for FG-300/301E and FG-500/501E.

Xem thêm

Thông số kỹ thuật

Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTP Bundle (FG-501E-BDL-950-12)
- Hardware: 2 x 10GE SFP+ slots, 10 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 8 x switch ports), 8 x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240GB onboard SSD storage;
- 1 Year Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service)

Data sheet Fortinet FortiGate 501E

Xem thêm thông số kỹ thuật
