GrandStream GWN7610

GrandStream GWN7610 Enterprise 802.11ac Wi-Fi Access Point : ● Support for up to 16 SSIDs per radio and up to 250+ concurrent WiFi clients ● Dual-band 3x3:3 MIMO technology and a sophisticated antenna design for maximum network throughput of up to 1.75Gbps and expanded coverage range of up to 175 meters ● Dual Gigabit ports with support for PoE/PoE+
  • Giá bán : Liên hệ để có giá tốt
  • Tình trạng : Còn hàng

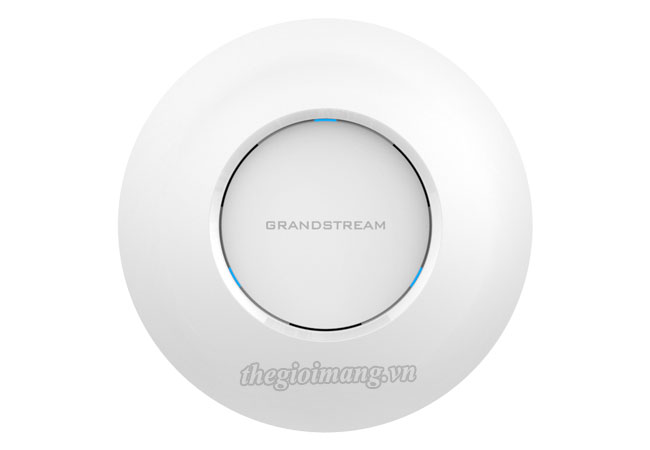

Thiết bị phát sóng wifi Grandstream GWN7610

Model GWN7610
Wi-Fi Standards  • IEEE 802.11 a/b/g/n/ac
Antennas  • 3x 2.4 GHz, gain 3 dBi, internal antenna
• 3x 5 GHz, gain 3 dBi, internal antenna
Wi-Fi Data Rates • IEEE 802.11ac: 6.5 Mbps to 1300 Mbps
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• IEEE 802.11n: 6.5 Mbps to 450 Mbps
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
 *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands  • 2.4GHz radio : 2.400 - 2.4835 GHz
• 5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz (FCC, IC, RCM)
Channel Bandwidth  • 2.4G: 20 and 40 MHz
• 5G: 20,40 and 80 MHz
Wi-Fi and System Security • WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MIMO  • 3x3:3 2.4GHz, 3x3:3 5GHz
Coverage Range  • Up to 575 ft. (175 meters)
 *coverage range can vary based on environment
Maximum TX Power • 5G: 26dBm (FCC) / 20dBm (CE)
• 2.4G: 26dBm (FCC) / 17dBm (CE)
 *Maximum power varies by country, frequency band and MCS rate
Reciever Sensitivity 2.4G
802.11b:-92dBm@11Mbps; 802.11g:-76dBm@54Mbps; 802.11n 20MHz: -73dBm@MCS7; 802.11n 40MHz:-70dBm@MCS7
5G
802.11a:-94dBm@6Mbps; 801.11a:-77dBm@54Mbps; 802.11ac 20MHz: -69dBm@MCS8; 802.11ac HT40:-65dBm@MCS9; 802.11ac 80MHz:-61dBm@MCS9
 * Receiver sensitivity varies by frequency band, channel width and MCS rate
SSIDs  • 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients  • 250+
Network Interfaces  • 2x autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports  • 1x USB 2.0 port, 1x Reset Pinhole, 1x Kensington lock
Mounting  • Indoor wall mount or ceiling mount, kits included
LEDs  • 3 tri-color LEDs for device tracking and status indication
Network Protocols  • IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS  • 802.11e/WMM, VLAN, TOS
Network Management • Embedded controller can manage up to 50 local GWN Aps
• GWN Cloud offers a free cloud management platform for unlimited GWN APs
• GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Auto Power Saving  • Self power adaptation upon auto detection of PoE or PoE+
Power and Green Energy Efficiency • DC Input: 24VDC/1A
• Power over Ethernet 802.3af/802.3at compliant
• Maximum Power Consumption:13.8W
Environmental • Operation: 0°C to 50°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing
Physical • Unit Dimension: 205.3 x 205.3 x 45.9mm; Unit Weight: 540g
• Unit + Mounting Kits Dimension : 205.3 x 205.3 x 50.9mm; Unit + Mounting Kits Weight : 600g
• Entire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 900g
Package Content  • GWN7610 802.11ac Wireless AP, Mounting Kits, Quick Start Guide
Compliance  • FCC, CE, RCM, IC
