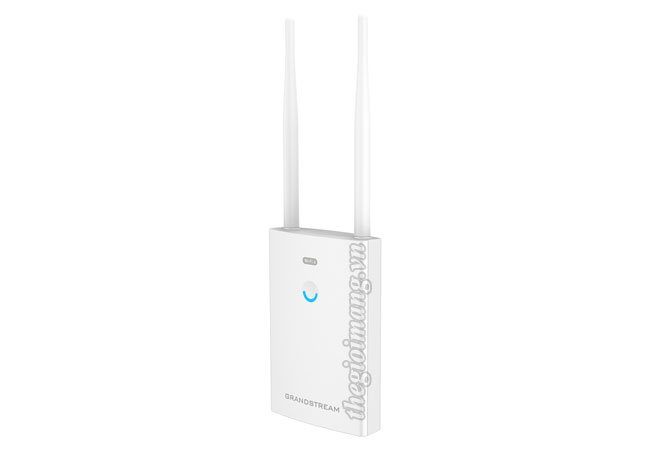

Model	GWN7660LR
Wi-Fi Standards	• IEEE 802.11 a/b/g/n/ac/ax
Antennas	• 2 dual band external antennas • 2.4GHz, gain 3.5dBi • 5 GHz, gain 3.5dBi
Wi-Fi Data Rates	• 5G: IEEE 802.11ax: 7.3 Mbps to 1201 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands	• 2.4GHz radio: 2412 - 2484 MHz • 5GHz radio: 5180 - 5825 MHz *Not all frequency bands can be used in all regions.
Channel Bandwidth	• 2.4G: 20 and 40 MHz • 5G: 20, 40 and 80 MHz
System Security	• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO	• 2×2:2 2.4GHz, 2×2:2 5GHz
Coverage Range	• Up to 250 meters *Coverage range can vary based on environment
Maximum TX Power	• 5G: 26dBm • 2.4G: 30dBm *Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity	• 2.4G 802.11b: -99dBm@1Mbps, -90dBm@11Mbps 802.11g: -93dBm @6Mbps, -77dBm@54Mbps 802.11n 20MHz: -74dBm @MCS7 802.11n 40MHz:-72dBm @MCS7 802.11ax 20MHz: -64dBm @ MCS11 802.11ax 40MHz: -62dBm @MCS11 • 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps 802.11ac 20MHz: -71dBm@MCS8 802.11ac: HT40:- 67dBm @MCS9 802.11ac 80MHz: -64dBm @MCS9 802.11ax 20MHz: -63dBm @ MCS11 802.11ax 40MHz: -62dBm @MCS11 802.11ax 80MHz: -58dBm@MCS11
SSIDs	• 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients	• 256+
Network Interfaces	• 2 × autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports	• 1 × Reset Pinhole
Mounting	• Outdoor wall or pole mount, kits included
LEDs	• 1× tri-color LEDs for device tracking and status indication
Network Protocols	• IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS	• 802.11e/WMM, VLAN, TOS
Network Management	• Embedded controller can manage up to 50 local GWN APs GWN. • Cloud offers a free cloud management platform for unlimited GWN APs • GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency	• PoE 802.3af/ 802.3at • Maximum Power Consumption: 12.9W
Environmental	• Operation:-30°Cto 60°C • Storage: -30°C to 70°C • Humidity: 5% to 95% Non-condensing
Physical	• Unit Dimension: 358.3mm(L) x 115mm(W) x 45.3mm(H) • Unit Weight: 695g • Entire Package Dimension: 275 x 185.5 x 89mm • Entire Package Weight: 995g
Package Content	• GWN7660LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof Grade	• IP66-level weatherproof capability when installed vertically
Compliance	• FCC, CE, RCM, IC
