Mô tả sản phẩm

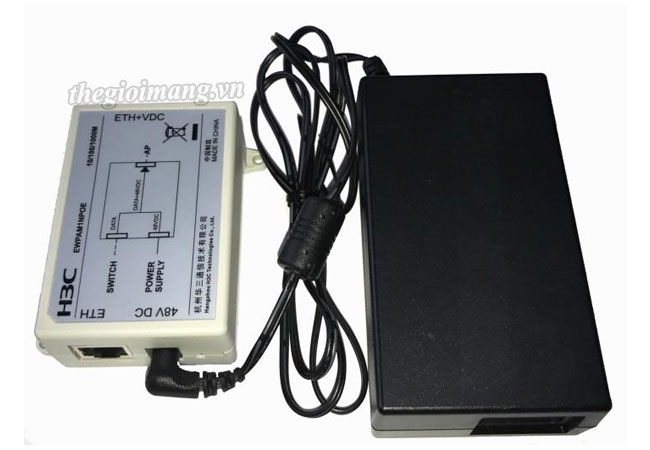

Bộ nguồn Power Adapter H3C ADP040-54V-POE-GL

Model	ADP040-54V-POE-GL
Size（L×W×H）	• Adapter: 110mm × 62mm × 31.5mm • Injector: 79mm × 70mm × 31mm
Weight	• 282g
Input Voltage	• 90V AC～264V AC; 47~63Hz
Input Current	• 1.5A Max, at 115Vac, Full load • 0.8A Max, at 230Vac, Full load
Input Connector*	• IEC320 C14
Output Voltage	• 54V
Output rated current	• 0.74A
Output Power	• 40W
Output Connection	• Pins 4,5(+) Pins 7,8 (-)
Power Efficiency	• Level VI
Protection	• OCP,OVP,SCP
Temperature	• Operation: -10℃～45℃ • Non-operation: -40℃～70℃
Humidity（Non-condensing）	• 5%～95%
Altitude	• Up to 5000m
EMC	• EN 55032: RE,CE • CISPR 32: RE,CE • IEC 61000-4-2: ESD • IEC 61000-4-3: RS • IEC 61000-4-4: EFT • IEC 61000-4-5: Surge • IEC 61000-4-6: CS • IEC 61000-4-11: DIPS
Safety Approvals	• CE,TUV,UL,CCC
