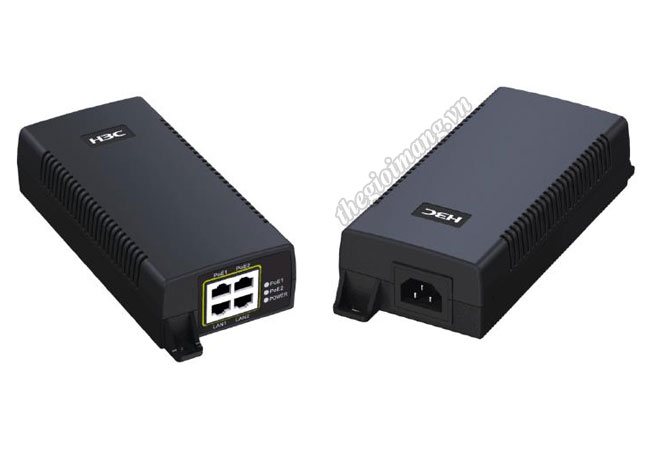

ADP060-55V-POE-GL - Bộ nguồn H3C ADP060 60W Passive PoE Adapter :
Bộ nguồn Power Adapter H3C ADP060-55V-POE-GL
| Model | ADP060-55V-POE-GL |
| Size（W×D×H） | • 208.5mm × 85mm × 46mm |
| Weight | • 437g |
| Input Voltage | • 100V AC～240V AC；50/60Hz |
| Input Current | • 1.5A Max, at 115Vac, Full load • 0.75A Max, at 230Vac, Full load |
| Input Connector* | • IEC320 C14 |
| AC Inrush Current | • 30A Max. At 115Vac, Cold start. • 60A Max. At 230Vac, Cold start |
| Output Voltage | • 55V |
| Output rated current | • 1.1A |
| Total Output Power | • 60W |
| Output Connection | • Pins 3,6, 4,5(+) Pins 1,2, 7,8 (-) |
| Power Efficiency | • Level V |
| Protection | • OCP,OVP,SCP |
| Temperature | • Operation: -30℃～55℃ • Non-operation: -40℃～70℃ |
| Humidity（Non-condensing） | • 5%～95% |
| Altitude | • Up to 5000m |
| EMC | • EN 55032: RE,CE • CISPR 32: RE,CE • IEC 61000-4-2: ESD • IEC 61000-4-3: RS • IEC 61000-4-4: EFT • IEC 61000-4-5: Surge • IEC 61000-4-6: CS • IEC 61000-4-11: DIPS |
| Safety Approvals | • CE,TUV, CCC |
