EWP-WA6320-FIT - H3C WA6320 Wi-Fi 6 Indoor Access Point :

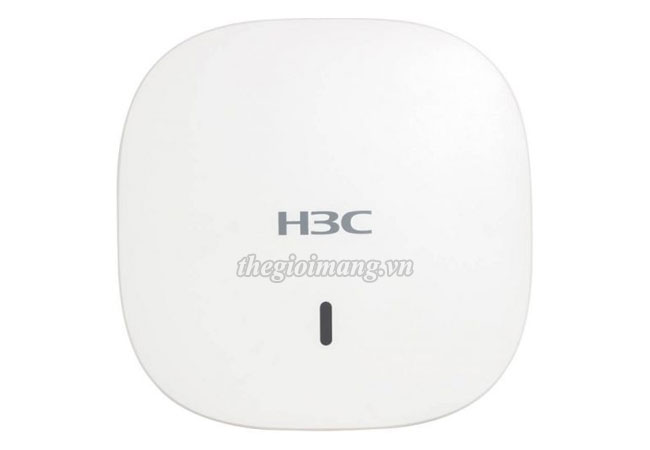

Thiết bị Wi-Fi 6 H3C WA6320 Indoor Access Point (EWP-WA6320-FIT)
| Model | EWP-WA6320-FIT |
| Hardware specifications | |
| Weight (excluding mounting accessories) | • 0.4Kg |
| Dimensions (excluding mounting and accessories) | • 185mm×185mm×43mm |
| Ethernet ports | • one for 100/1000M Rj45 |
| PoE | • Port1: 802.3af |
| Local Power supply | • 54V DC |
| Console port | • One（RJ-45） |
| Built-in antenna | • Built-in omni-directional antenna - 3dBi antenna gain @2.4GHz - 5dBi antenna gain @5GHz |
| Built-in Bluetooth | • Built-in Bluetooth 5.0 (Support to switch RFID through software), Support iBeacon standard |
| Working frequencies | • 802.11ax/ac/n/a: 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz 802.11ax/b/g/n: 2.4GHz-2.483GHz |
| Modulation technology | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) • MIMO-OFDM (11n) : MCS 0-31 • MIMO-OFDM (11ac) : MCS 0-11 • MIMO-OFDM (11ax) : MCS 0-11 |
| Modulation mode | • 11b：DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n：MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM • 11ac：MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum transmit power | • 20dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity | • 1dBm |
| Reset/restoration to factory default | • Supported |
| State LED | • Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature/Storage Temperature | • -10ºC～55ºC/-40ºC～70ºC |
| Working Humidity/Storage Humidity | • 5%~95%(non-condensing) |
| Protection class | • IP41 |
| Overall power consumption | • ≤12.42W |
| Safety compliance | • GB4943, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC | • GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
| Radio frequency certification | • FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| MTBF | • >250000H |
| Software specifications | |
| Compliance | |
| 802.11 | • Indoor, compliant with 802.11a/b/g/n/ac/ax |
| 802.11ax | |
| Working frequencies and MIMO | • 2.4G 2*2 MIMO 0.575Gbps • 5G 2*2 MIMO 1.2Gbps |
| 20MHz/40MHz bandwidth | • Supported |
| 80MHz bandwidth | • Supported |
| Maximum transmission speed | • 1.775Gbps |
| A-MPDU | • Supported |
| A-MSDU | • Supported |
| Maximum likelihood decoding (MLD) | • Supported |
| Maximum-ratio combining (MRC) | • Supported |
| Space-time block coding (STBC) | • Supported |
| Low-density parity-check (LDPC) | • Supported |
| Cyclic Delay Diversity (CDD)/Cyclic Shift Diversity (CSD) | • Supported |
| DFS (dynamic frequency selection) | • Supported |
| Transmit Beamforming | • Supported |
| WLAN basics | |
| Maximum number of clients per radio | • 512 |
| Maximum number of SSIDs for each radio | • 16 |
| Virtual APs | • 32 (As a best practice, configure a maximum of 5 virtual APs for each radio) |
| Open system/shared key authentication | • Supported |
| Broadcast probe request acknowledge control | • Supported |
| Concurrent login of WPA, WPA2, WPA3 and Pre-RSNA users | • Supported |
| RTS/CTS | • Supported |
| CTS-to-self | • Supported |
| 802.11k and 802.11v smart roaming | • Supported |
| 802.11r fast transition roaming | • Supported |
| Advanced Traffic Management | • Supported |
| Restrict low rate/sticky terminals access | • Supported |
| Channel reuse | • Supported |
| Receiver sensitivity adjustment | • Supported |
| Automatic channel/power/bandwidth adjustment | • Supported |
| Hide SSID | • Supported |
| Hotspot 2.0 | • Supported |
| WLAN extension | |
| Station related | • Abnormal offline check, station aging, statistics and status query |
| Client number limit | • Supported |
| Link integrity check | • Supported |
| Repeater mode | • Supported |
| Security policy | |
| Encryption | • WEP-64/128/152bit, dynamic WEP, TKIP, AES, EAP, CCMP, WPA3 • Multiple triggering conditions for unicast and broadcast key update |
| 802.11i | • Supported |
| Authentication | • 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK • H3C WX series access controllers might be required for authentication. |
| User isolation | • Layer 2 user isolation • SSID-based user isolation |
| Forwarding security | • Packet filtering • MAC address filtering • Broadcast storm suppression |
| Wireless terminal access | • Wireless EAD |
| SSID and VLAN binding | • Supported |
| WIDS/WIPS | • Supported |
| Rogue device detection and countermeasure | • Supported |
| Dynamic ARP Inspection (DAI) | • Supported |
| IP Source Guard (IPSG) | • Supported |
| Management frame protection (802.11w) | • Supported |
| AAA | |
| RADIUS client | • Supported |
| Multiple-domain authentication server | • Supported |
| Backup authentication server | • Supported |
| Layer 2 and Layer 3 features | |
| IP address configuration | • Static IP (available only in fat AP mode) • DHCP assigned IP (Option 60) |
| Native IPv6 | • Supported |
| IPv6 Portal | • Supported |
| IPv6 SAVI | • Supported |
| ACL | • IPv4/IPv6 |
| Local forwarding | • Local forwarding based on SSID and VLAN |
| Link Layer Discovery Protocol (LLDP) | • Supported |
| SSID-based VLAN assignment | • Supported |
| EoGRE Tunnel | • Supported |
| Multicast | • IGMP Snooping/MLD Snooping |
| QoS | |
| 802.11e | • Wi-Fi Multimedia (WMM) |
| Priority | • 802.1p priority and marking on Ethernet ports • Priority mapping for wired and wireless packets |
| QoS policy mapping | • SSID/VLAN and QoS policy mapping |
| Layer 2 to Layer 4 packet filtering and traffic classification | • Supported |
| CAR | • Supported |
| Client bandwidth management | • Station-based bandwidth allocation • SSID-based bandwidth allocation |
| Load balancing | • Traffic-based load balancing • Session-based load balancing • Frequency-based load balancing (supports dual-band) |
| Band navigation (5G priority) | • Supported |
| Multicast optimization (IPv4/IPv6) | • Supported |
| Call Admission Control (CAC) | • Session-based CAC • Channel usage-based CAC |
| Airtime optimization | • Supported |
| Airtime fairness | • Supported |
| Layer 4-7 application identification | • Coupled with H3C WLAN ACs, the APs can identify variety of applications and policy control can be implemented including priority adjustment, scheduling, blocking, and rate limiting on users |
| SVP Phone | • Supported |
| Power saving | |
| PPC | • Supported |
| Green AP mode | • Supported |
| Dynamic MIMO power saving | • Supported |
| E-APSD | • Supported |
| WMM Power Save | • Supported |
| Management And Maintenance | |
| Network management | • Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Cloud/Fat mode |
| Management SSID | • Supported |
| Syslog | • Supported |
| AP Working Mode | • Fit/Cloud/Fat/anchor |
| Remote probing and analysis | • Supported |
| Mesh | |
| Mesh Link connection | • Supported |
| Multi-hop Mesh | • Supported |
| Wi-Fi Certified | • IEEE 802.11a/b/g/n/ac/ax, WMM, WPA, WPA2 and WPA3 – Enterprise, Personal (SAE), Enhanced Open (OWE), Wi-Fi Alliance |
EWP-WA6320-FIT : H3C WA6320 Internal Antennas 4 Streams Dual Radio 802.11ax/ac/n Access Point, FIT
