EWP-WA6320H-FIT - H3C WA6320H Wi-Fi 6 Wall-Plate Access Point :

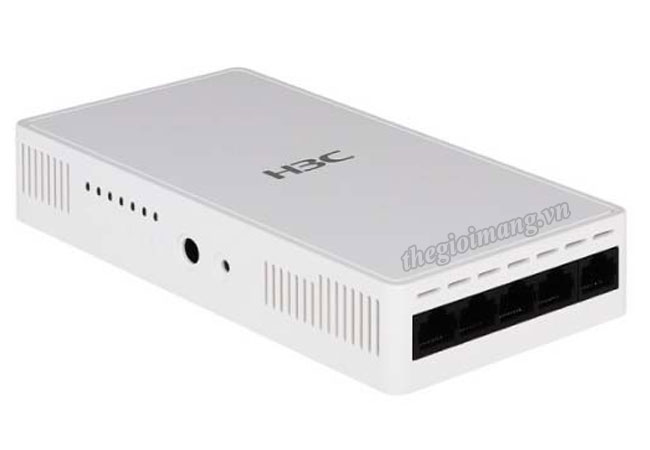

Thiết bị Wi-Fi 6 H3C WA6320H Wall-Plate Access Point (EWP-WA6320H-FIT)
| Model | EWP-WA6320H-FIT |
| Weight (excluding mounting accessories) | • 0.25Kg |
| Dimensions (excluding mounting and accessories) | • 160mm × 86mm × 30mm |
| Ethernet ports | • Front panel: - 4 x 100/1000Mbps Ethernet ports - 1 x RJ45 pass-through port - 1 x USB port - 1 x Console port • Back panel: - 1 x uplink GE port (100/1000Mbps) - 1 x RJ45 pass-through port |
| PoE | • Port1: 802.3af |
| Local Power supply | • 54V DC |
| Console port | • One（RJ-45） |
| Built-in antenna | • Built-in omni-directional antenna - 3dBi antenna gain @2.4GHz - 3dBi antenna gain @5GHz |
| Built-in Bluetooth | • Built-in Bluetooth 5.0(Support to switch RFID through software)，Support iBeacon standard |
| Working frequencies | • 802.11ax/ac/n/a: 5.725GHz-5.850GHz, 5.47～5.725GHz, 5.15~5.35GHz • 802.11ax/b/g/n: 2.4GHz-2.483GHz |
| Modulation technology | • OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps (file://dbpsk@1mbps, dqpsk@2mbps, cck@5.5/11Mbps) • MIMO-OFDM (11n) : MCS 0-31 • MIMO-OFDM (11ac) : MCS 0-11 • MIMO-OFDM (11ax) : MCS 0-11 |
| Modulation mode | • 11b：DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g：OFDM: 64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n：MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM • 11ac：MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Maximum transmit power | • 20dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations) |
| Adjustable power granularity | • 1dBm |
| Reset/restoration to factory default | • Supported |
| State LED | • Alternating flashing mode, orange/green/blue for different working states, breathing mode |
| Working Temperature/Storage Temperature | • -10ºC～55ºC/-40ºC～70ºC |
| Working Humidity/Storage Humidity | • 5%~95%(non-condensing) |
| Protection class | • IP31 |
| Overall power consumption | • ≤12.95W（excluding IoT modules） |
| Safety compliance | • GB4943, EN60601-1-2(medical electrical equipment), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
| EMC | • GB9254, EN301 489, EN55022, FCC Part 15, RSS-210 |
| Radio frequency certification | • FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC |
| Health | • FCC Bulletin OET-65C, EN 50385, IC Safety Code 6 |
| MTBF | • >250000H |
EWP-WA6320H-FIT : H3C WA6320H Internal Antennas 4 Streams Dual Radio 802.11ax/ac/n Walljack Access Point, FIT
Data sheet H3C WA6320H New Generation Indoor Series Wall-Plate Access Point
