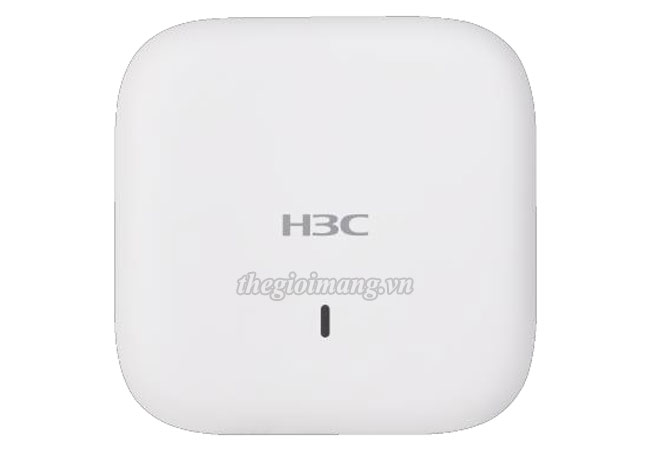

Model	EWP-WA7539-FIT
Hardware specifications
Weight	• 1.4kg
Dimensions (W × D × H)	• 225 mm × 225 mm × 47.2 mm
Interface	• 1 x 100/1000M/2.5G/5G/10G Multigigabit Ethernet, RJ-45, PoE input • 1 x /1000M/10G optical port, SFP+, PoE input • 1 x 100/1000M Multigigabit Ethernet, RJ-45, PoE output
Console port	• 1 × Management console port (RJ-45)
USB port	• 1(2.0) at 2.5W
PoE input	• 1 x 100/1000M/2.5G/5G/10G Multigigabit Ethernet, 802.3bt/at • 1 x 1000M/10G optical port, 802.3bt/at
PoE output	• 1 x 100/1000M Multigigabit Ethernet, 802.3af
Local power supply	• 54V DC
Antenna Type	• Built-in omni-directional antenna
Antenna Gain	• 6GHz peak gain: 6.4dBi • 5GHz peak gain: 5.2dBi • 2.4GHz peak gain: 6.0dBi Note: The equivalent antenna gain is 5.6dBi in 6GHz, 4.6dBi in 5GHz and 4.9dBi in 2.4GHz
Built-in IoT Module	• BLE5.1
External IoT Module	• RFID/Zigbee
Frequencybands	• 2.400to2.4835GHzISM • 5.150to5.250GHzU-NII-1 • 5.250to5.350GHzU-NII-2A • 5.470to5.725GHzU-NII-2C • 5.725to5.850GHzU-NII-3/ISM • 5.925to6.425GHzU-NII-5 • 6.425to6.525GHzU-NII-6 • 6.525to6.875GHzU-NII-7 • 6.875to7.125GHzU-NII-8 Note: The available bands and channels are dependent on the configured regulatory domain (country)
Modulation technology	• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps • DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
Modulation mode	• 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps • 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps • 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM • 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM • 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM • 11be: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAM
Maximum transmit power	• 6G: 26dBm • 5G: 26 dBm • 2.4G: 26 dBm Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations
Adjustable power granularity	• 1 dBm
Reset/restoration to factory default	• support
Kensington Lock	• support
Installation	• wall mounting/ceiling mounting
LED	• Alternating flashing mode, orange/green/blue for different working states
Temperature	• Operating temperature: 0°C to +50°C • Storage temperature: –40°C to +70°C
Humidity	• Operating humidity: 5% to 95% (non-condensing) • Storage humidity: 5% to 95% (non-condensing)
Protection class	• IP42
Overall power consumption	• 49.2W (including PSE and USB) • 31.7W (without PSE and USB) Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues.
Software specifications
Basic information	• Flagship, Indoor, tri-radio AP, 802.11a/b/g/n/ac/ac Wave 2/ax/be
Frequency and MIMO:	• 6GHz, 4×4:4, 11.53Gbps • 5GHz, 4×4:4, 5.76Gbps • 2.4GHz, 4×4:4, 1.38Gbps
Compliance and bandwidth	• 6GHz, 802.11ax/be • 20MHz/40MHz/80MHz/160MHz/320MHz • 5GHz, 802.11a/n/ac/ax/be • 20MHz/40MHz/80MHz/160MHz • 2.4GHz, 802.11b/g/n/ax/be • 20MHz/40MHz
Maximum transmission speed	• 18.67 Gbps (4x4 320 MHz on 6 GHz, 4x4 160 MHz on 5 GHz, and 4x4 40 MHz on 2.4 GHz)
Maximum number of clients	• 1536 (512 on 6 GHz, 512 on 5 GHz, and 512 on 2.4 GHz) Note: the actual number of users varies according to the environment
Maximum number of SSIDs for each radio	• 16
