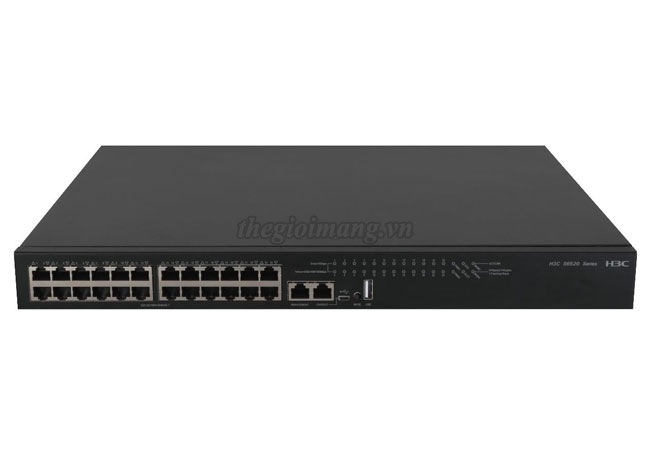

LS-6520X-26MC-SI-GL - H3C S6520X-SI Multi-Gigabit 10GE Switch :
Thiết bị chuyển mạch Switch H3C LS-6520X-26MC-SI-GL
| Model | LS-6520X-26MC-SI-GL |
| Hardware specifications | |
| Port switching capacity | • 400Gbps |
| Packet forwarding rate | • 240Mpps |
| Box switching capacity | • 1.44Tbps |
| CPU | • Dual-Core, 1.6GHz |
| Flash/SDRAM | • 1GB/2GB |
| Buffer | • 3M |
| Dimensions (W×D×H) | • 440×360×43.6 mm |
| Weight | • ≤ 6.4 kg |
| Service ports | • 24×100M/1G/2.5G/5GBase-T |
| Console ports | • 1 (rear panel) |
| Management Ethernet ports | • 1 (rear panel) |
| USB ports | • 1 (rear panel) |
| Expansion slots | • 1 |
| Expansion modules | • 2-port 10G SFP+ with MACSec Interface Module • 2-port 10G BASE-T with MACSec Interface Module • 2-Port 10G SFP Plus Ethernet Optical Interface Module • 8-Port 10G SFP+ with MACSec Interface Module • 4-Port 10/100/1000BASE-T Ethernet,6-Port SFP (2-Port Combo) Interface Module • 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module • 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module • 2-port 25GE SFP28 interface module • 2-port 40GE QSFP+ interface module |
| Fan Trays | • 2 |
| Power Supply slots | • 2 |
| Idle power consumption | • AC:32W • DC:31W |
| Max. power consumption | • AC: 130W • DC: 134W |
| Input voltage range | • AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz • DC: -48V~-60V |
| Operating temperature | • 0ºC to 45ºC (32°F to 113°F) • -60m-5000m altitude: From 0m, the maximum operating temperature reduce by 0.33℃ for every time 100 the altitude increases by 100m. |
| Storage temperature | • -40℃ to 70℃(-40℉ to 158℉) |
| Operating & storage humidity | • 5% RH to 95% RH, non-condensing |
| MTBF(Year) | • 83.6 |
| MTTR(Hour) | • 1 |
| Performance Specification | |
| MAC address entries(max) | • 32768 |
| VLAN table | • 4094 |
| VLAN interface | • 1024 |
| IPv4 routing entries(max) | • 16384 |
| IPv4 ARP entries(max) | • 16384 |
| IPv4 ACL entries | • Ingress: 1024 • Egress: 256 |
| IPv4 multicast L2 entries | • 4000 |
| IPv4 multicast L3 entries | • 1500 |
| IPv6 unicast routing entries(max) | • 8192 |
| QOS forward queues | • 8 |
| IPv6 ACL entries | • Ingress: 1024 • Egress: 256 |
| IPv6 ND entries(max) | • 10240 |
| IPv6 multicast L2 entries | • 2000 |
| IPv6 multicast L3 entries | • 500 |
| Jumbo frame length | • 10000 |
| Max Stacking Member | • 9 |
| Max Stacking Bandwidth | • 160Gbps |
LS-6520X-26MC-SI-GL : H3C S6520X-26MC-SI L3 Ethernet Switch with 24*100M/1G/2.5G/5GBase-T Ports and 1*Slot, Without Power Supplies
LS-6520X-10XT-SI - H3C S6520X-SI 10GE Layer 3 Switch :
Liên hệ để có giá tốt
LS-6520X-16XT-SI - H3C S6520X-SI 10GE Layer 3 Switch :
Liên hệ để có giá tốt

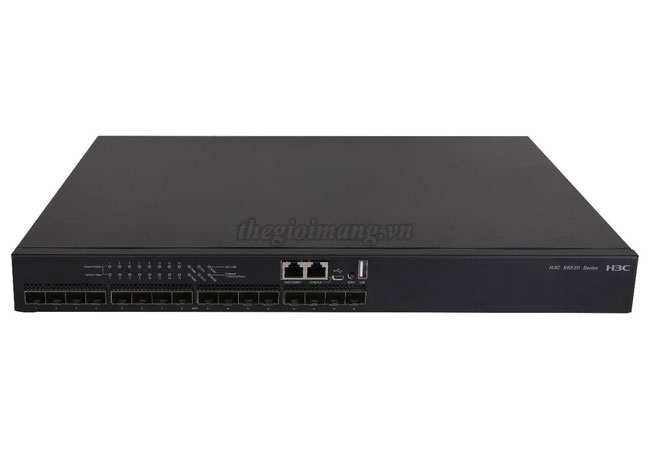

LS-6520X-18C-SI-GL - H3C S6520X-SI Multi-Gigabit 10GE Switch...
Liên hệ để có giá tốt
LS-6520X-26MC-UPWR-SI-GL - H3C S6520X-SI Multi-Gigabit 10GE...
Liên hệ để có giá tốt

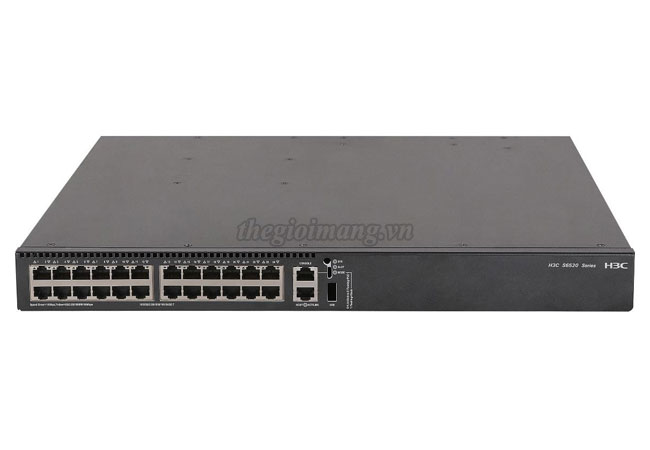

LS-6520X-26XC-UPWR-SI - H3C S6520X-SI Multi-Gigabit 10GE Switch...
