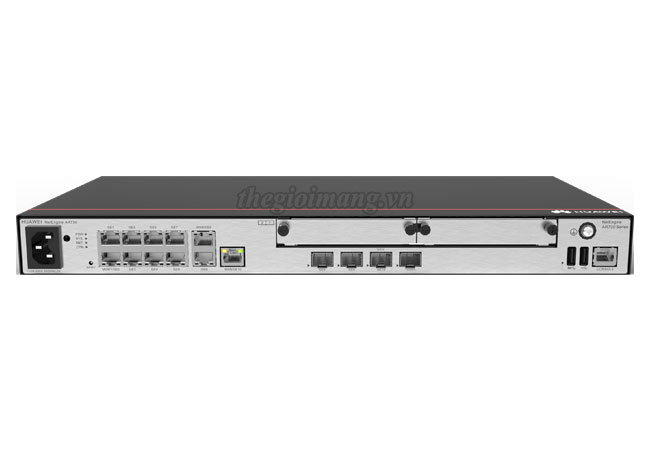

Huawei NetEngine AR730 Enterprise Router :
Thiết bị định tuyến Router Huawei eKitEngine AR730
| Model | NetEngine AR730 |
| Processor | • ARM64 4-core |
| Forwarding performance | • 9 Mpps to 25 Mpps |
| Number of connected terminals | • 1200 |
| Outbound bandwidth | • 6 Gbit/s |
| Fixed WAN ports | • 2 x GE combo ports, 1 x 10GE optical port (compatible with GE optical) |
| Fixed LAN ports | • 1*GE combo port, 8 x GE electrical ports (can be switched to WAN ports) |
| SIC slots | • 2 |
| WSIC slot (default/maximum) | • 0/1 |
| Serial auxiliary or console port | • 1 x RJ45 console serial port |
| USB ports | • 2 x USB ports |
| Memory | • 4 GB |
| Flash | • 1 GB |
| Hot swapping | • Supported |
| Dimensions excluding the parts protruding from the body (H x W x D) | • 44.4 mm x 442.0 mm x 220.4 mm |
| Dimensions with the parts protruding from the body (H x W x D) | • 44.4 mm x 442.0 mm x 225.2 mm |
| Dimensions of the packing box (H x W x D) | • 90 mm x 570 mm x 390 mm |
| Weight (unconfigured) | • 3.2 kg |
| Rack installation | • IEC |
| Required space in a rack | • 1 U |
| Rated input voltage (AC) | • 100 V to 240 V |
| Rated input frequency (AC) | • 50 Hz/60 Hz |
| Maximum input voltage (AC) | • 90 V to 264 V |
| Maximum input current (AC) | • 2 A |
| Maximum output power (AC) | • 70 W |
| Maximum power consumption | • 33 W |
| Fan module | • Built-in unpluggable fan module |
| Airflow | • Left to right |
| Noise | • 52.3 dB |
| Operating temperature | • 0°C to 45°C |
| Operating humidity | • 5% to 95% (non-condensing) |
| Operating altitude | • < 5000 m |
| Storage temperature | • –40°C to +70°C |
| Storage altitude | • < 5000 m |
