Huawei eKitEngine AP263 Wi-Fi 6 Wall Plate Access Point :

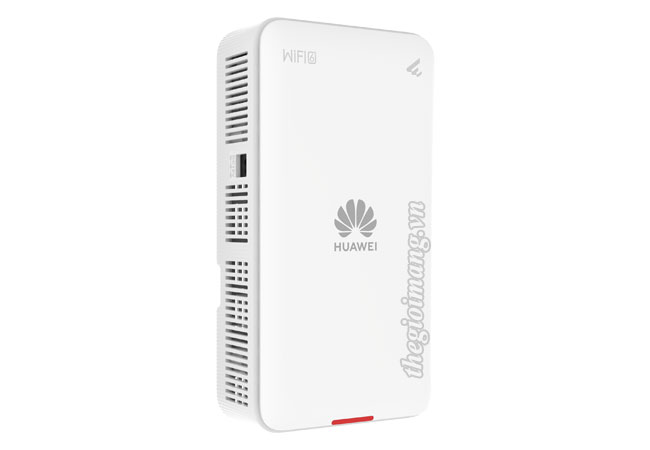

Thiết bị Wi-Fi 6 Huawei eKitEngine AP263 Wall Plate Access Point
| Model | eKitEngine AP263 |
| Technical specifications | |
| Dimensions (H x W x D) | • 160 mm x 86 mm x 38 mm |
| Weight | • 0.32 kg |

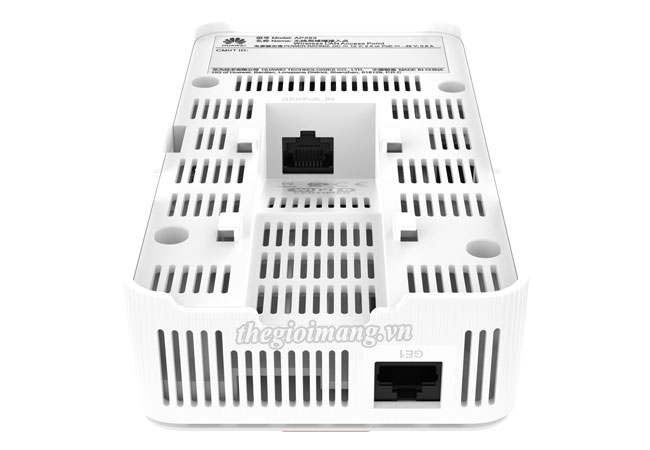

| Interface type | • 2 x 10M/100M/1GE (RJ45) • 1 x USB NOTE : GE supports PoE input. |
| Bluetooth | • BLE 5.0 |
| LED indicator | • Indicates the power-on, startup, running, alarm, and fault states of the system. |
| Power specifications | |
| Power input | • DC: 12 V ± 10% • PoE power supply: in compliance with 802.3af NOTE : 802.3af power supply by default; 802.3at power is required only if USB is required. |
| Maximum power consumption | • 12 W (excluding USB) NOTE : The actual maximum power consumption depends on local laws and regulations. |
| Environmental specifications | |
| Operating temperature | • 0°C to 40°C |
| Storage temperature | • -40°C to +70°C |
| Operating humidity | • 5% to 95% (non-condensing) |
| Altitude | • -60 m to +5000 m |
| Atmospheric pressure | • 53 kPa to 106 kPa |
| Radio specifications | |
| Antenna type | • Built-in smart antennas |
| Antenna gain | • 2.4 GHz: 2 dBi • 5 GHz: 3 dBi NOTE ₀ The gains above are the single-antenna peak gains. ₀ The equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined is 1 dBi at 2.4 GHz or 1 dBi at 5 GHz. |
| Maximum number of SSIDs for each radio | • ≤ 16 |
| Maximum number of users | • ≤ 256 NOTE : The actual number of users varies according to the environment. |
| Maximum transmit power | • 2.4 GHz: 23 dBm (combined power) • 5 GHz: 23 dBm (combined power) NOTE : The actual transmit power depends on local laws and regulations. |
| Power increment | • 1 dBm |
