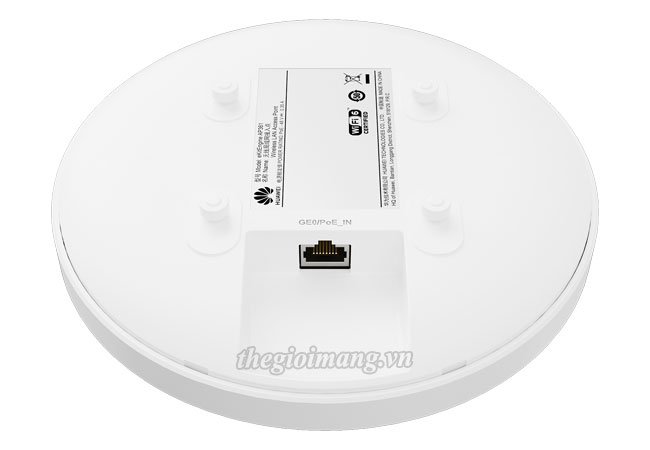

Huawei eKitEngine AP361 Wi-Fi 6 Indoor Access Point :
Thiết bị Wi-Fi 6 Huawei eKitEngine AP361 Indoor Access Point
| Model | eKitEngine AP361 |
| Technical specifications | |
| Dimensions (diameter x length) | • Φ180 mm x 35 mm |
| Weight | • 0.45 kg |
| Port type | • 1 x 10M/100M/1GE electrical port Note : The GE electrical port supports PoE input. |
| LED indicator | • Indicates the power-on, startup, running, alarm, and fault states of the system. |
| Power specifications | |
| Power input | • PoE power supply: in compliance with IEEE 802.3af |
| Maximum power consumption |
• 8.8 W Note : The actual maximum power consumption depends on local laws and regulations. |
| Environmental specifications | |
| Operating temperature | • –10°C to +50°C (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C every time the altitude increases by 300 m.) |
| Storage temperature | • –40°C to +70°C |
| Operating humidity | • 5% to 95% (non-condensing) |
| Altitude | • –60 m to +5000 m |
| Atmospheric pressure | • 53 kPa to 106 kPa |
| Radio Specifications | |
| Antenna type | • Built-in smart antennas |
| Antenna gain | • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi Note 1. The preceding gain is the peak gain of a single antenna. 2. Equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are combined: 2 dBi for 2.4 GHz and 3 dBi for 5 GHz. |
| Maximum quantity of SSIDs on each radio | • ≤ 6 |
| Device capacity | • ≤ 128 Note : The actual number of users varies according to the environment. |
| Maximum transmit power | • 2.4 GHz: 20 dBm (combined power) • 5 GHz: 20 dBm (combined power) Note : The actual transmit power depends on local laws and regulations. |
| Power adjustment increment | • 1 dBm |
eKitEngine AP361 : Indoor AP supporting 802.11ax, 2+2 dual bands, smart antennas
Huawei eKitEngine AP362 Wi-Fi 6 Indoor Access Point :
Liên hệ để có giá tốt
Huawei eKitEngine AP263 Wi-Fi 6 Wall Plate Access Point :
Liên hệ để có giá tốt
Huawei eKitEngine AP160 Wi-Fi 6 Wall Plate Access Point :
Liên hệ để có giá tốt
