Huawei CloudEngine S5735-L32ST4X-D1 Switch :
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-L32ST4X-D1
| Model | CloudEngine S5735- L32ST4X-D1 |
| Physical specifications | |
| Dimensions (H x W x D) | • 43.6 mm x 442 mm x 220 mm |
| Chassis height | • 1 U |
| Chassis weight (including packaging) | • 3.85 kg |
| Fixed port | |
| GE port | • 8 |
| GE SFP pot | • 24 |
| 10GE port | • 4 |
| Management port | |
| Console port (RJ45) | • Supported |
| USB Port | • USB 2.0 |
| CPU | |
| Frequency | • 1000 MHz |
| Core | • 2 |
| Storage | |
| Memory (RAM) | • 512 MB |
| Flash memory | • Hardware: 512 MB, of which 306 MB is available for users |
| Power supply system | |
| Power supply type | • Built-in DC |
| Rated voltage range | • -48V DC～-60V DC |
| Maximum voltage range | • -38.4V DC～-72V DC |
| Maximum input current | • 6A |
| Maximum power consumption of the device | • 61.9 W |
| Power consumption in the case of 30% traffic load | • 60.7 W |
| Power consumption in the case of 100% traffic load | • 61.4 W |
| Heat dissipation system | |
| Heat dissipation mode | • Air-cooled heat dissipation and intelligent fan speed adjustment |
| Number of fan modules | • 2 |
| Airflow | • Air flows in from the left side and front panel, exhausts from the right panel |
| Maximum heat dissipation of the device (BTU/hour) | • 211.21 |
| Environment parameters | |
| Long-term operating temperature | • 0-1800 m altitude: -5°C to +50°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | • 0-1800 m altitude: -5°C to +55°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | • -40°C to +70°C |
| Relative humidity | • 5%-95%(non-condensing) |
| Operating altitude | • 5000 m |
| Noise under normal temperature (sound power) | • 46.8 dB(A) |
| Noise under high temperature (sound power) | • 73.2 dB(A) |
| Noise under normal temperature (sound pressure) | • 35 dB(A) |
| Surge protection specification (RJ45 service port) | • ±7 kV in common mode |
| Surge protection specification (power port) | • Differential mode: ± 2 kV • Common mode: ± 4 kV |
| Reliability | |
| MTBF (year) | • 58.44 |
| MTTR (hour) | • 2 |
| Availability | • > 0.99999 |
| Certification | • EMC certification • Safety certification • Manufacturing certification |

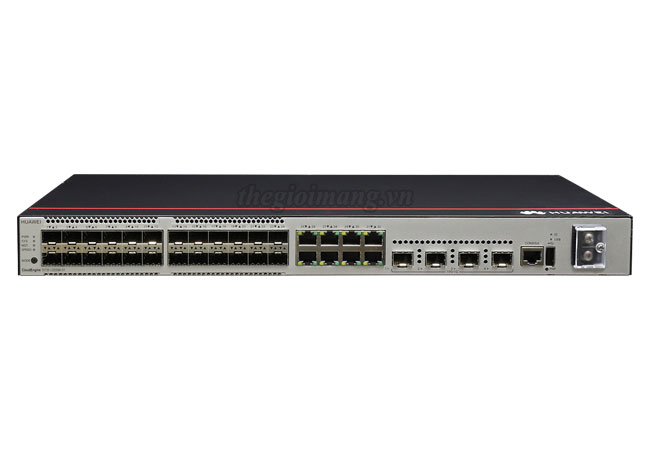

CloudEngine S5735-L32ST4X-D1 : 24*GE SFP ports, 8*10/100/1000BASE-T ports, 4*10GE SFP+ ports, DC power, front access.
