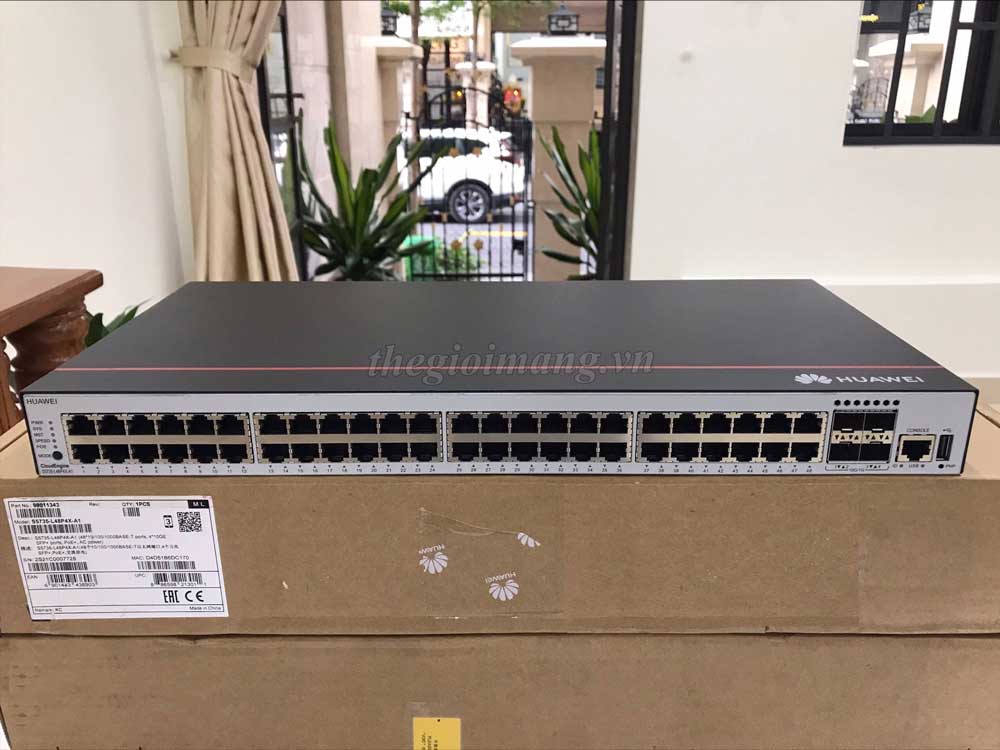

Switch Huawei CloudEngine S5735-L48P4X-A1
Thiết bị chuyển mạch Switch Huawei CloudEngine S5735-L48P4X-A1
| Model | CloudEngine S5735-L48P4X-A1 |
| Fixed port | 48 x 10/100/1000Base-T ports(PoE+), 4 x 10 GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 4.28 kg |
| Power supply type | Built-in AC power |
| Rated voltage range | AC input : 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | ● AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz ● High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V highvoltage DC certification) |
| Maximum power consumption | ● 76.1W(without PD) ● 456.1W(with PD,PD Power consumption of :380W） |
| Noise | ● Under normal temperature (sound power): 50dB (A) ● Under high temperature (sound power): 73dB (A) ● Under normal temperature (sound pressure): 38.2dB (A) |
| Long-term operating temperature | ● 0-1800 m altitude: -5°C to +50°C ● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | ● 0-1800 m altitude: -5°C to +55°C ● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non condensing) |
| Surge protection specification (service port) | ±7 kV in common mode |
| Surge protection specification (power port) | ● Differential mode: ± 6 kV ● Common mode: ± 6 kV |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
| Physical security | One Kensington lock slot, can be used to lock the device to mounting bracket |
S5735-L48P4X-A1 : CloudEngine S5735-L48P4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, AC power)
