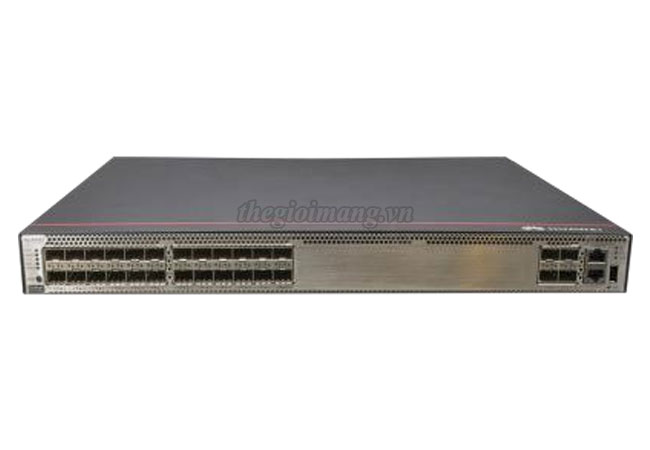

Thiết bị chuyển mạch Switch Huawei CloudEngine S5736-S24S4XC
| Model | CloudEngine S5736-S24S4XC |
| Fixed port | 24 x GE SFP ports, 4 x 10 GE SFP+ ports |
| Extended slot | ● One extended slot, support 4 x 40GE QSFP+, 2 x 40GE QSFP+ and 8 x 10GE SFP+ cards |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 8.2kg |
| Power supply type | ● 150 W AC ● 600 W AC ● 180 W DC ● 1000 W DC |
| Rated voltage range | ● AC input (150/600 W AC ): 100 V AC to 240 V AC, 50/60 Hz ● DC input (180/1000 W DC): -48 VDC to -60 V DC |
| Maximum voltage range | ● AC input (150/600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz ● High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high voltage DC certification) ● DC input (180/1000 W DC): -38.4 V DC to -72V DC |
| Maximum power consumption | 74W |
| Noise | ● Under normal temperature (sound power): 49.9dB (A) ● Under high temperature (sound power): 73.9dB (A) ● Under normal temperature (sound pressure): 37.8dB (A) |
| Long-term operating temperature | ● 0-1800 m altitude: -5°C to +45°C ● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | -5°C to +50°C |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (power port) | ● AC power port: ±6 kV in differential mode, ±6 kV in common mode ● DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
Power Module và Interface Card cho CloudEngine S5736- S24S4XC
| PAC150S12-R | 150 W AC power module |
| PDC180S12-CR | 180 W DC power module |
| PAC600S12-CB | 600 W AC power module |
| PAC600S12-DB | 600 W AC power module |
| PAC600S12-EB | 600 W AC power module |
| PDC1000S12-DB | 1000 W DC power module |
| S7X08000 | 8-port 10GE SFP+ interface card |
| S7Q02001 | 2-port 40GE QSFP+ interface card |
| ES5D21Q04Q01 | 4-port 40GE QSFP+ interface card |
S5736-S24S4XC : CloudEngine S5736-S24S4XC (24 x GE SFP ports, 4 x 10 GE SFP+ ports, 1*expansion slot, without power module)
Data sheet Huawei CloudEngine S5736-S Series All-Optical Switches
