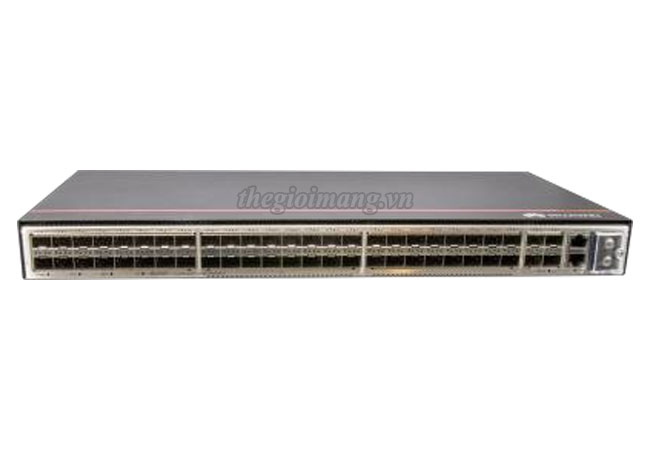

Thiết bị chuyển mạch Switch Huawei CloudEngine S5736-S48S4X-D
| Model | CloudEngine S5736-S48S4X-D |
| Fixed port | 48 x GE SFP ports(optional RTU upgrade to 10G), 4 x 10 GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 4.3kg |
| Power supply type | Build-in DC power |
| Rated voltage range | DC input : -48 V DC to -60 V DC |
| Maximum voltage range | DC input : -36 V DC to -72V DC |
| Maximum power consumption | 108W |
| Noise | ● Under normal temperature (sound power): 56.8dB (A) ● Under high temperature (sound power): 73.9dB (A) ● Under normal temperature (sound pressure): 44.8dB (A) |
| Long-term operating temperature | ● 0-1800 m altitude: -5°C to +45°C ● 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | -5℃ ～50℃ |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (power port) | ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
S5736-S48S4X-D : CloudEngine S5736-S48S4X-D base (48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, DC power supply, front access)
Data sheet Huawei CloudEngine S5736-S Series All-Optical Switches
