Mô tả sản phẩm

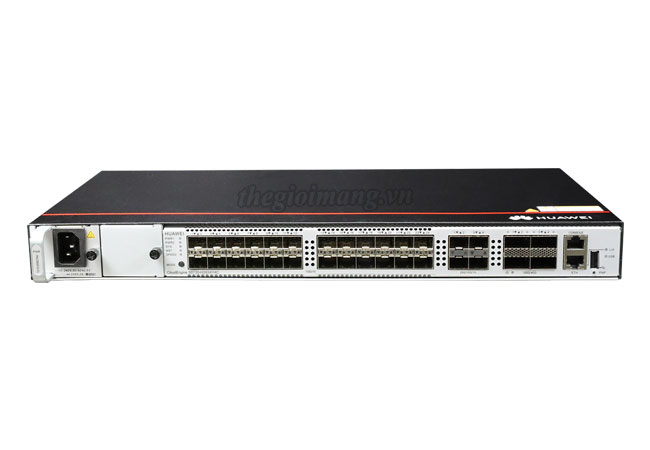

Thiết bị Switch Huawei S6730-H24X4Y4C

Model	CloudEngine S6730-H24X4Y4C
Fixed ports	24 x 10 Gig SFP+, 4 x 25 Gig SFP28, 4 x 100 Gig QSFP28
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
Chassis height(U)	1U
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current	AC 300W： 4A DC 260W： 10A
Typical power consumption (30% of traffic load, tested according to ATIS standard)	186 W
Maximum power consumption (100% throughput, full speed of fans)	253 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Power supply type	300 W AC Power Module 260 W DC Power Module
Relative humidity	5% to 95%, noncondensing
Fans	3, Built-in fan
Heat dissipation	Heat dissipation with fan, intelligent fan speed adjustment
